Siemens SGIM-3258C

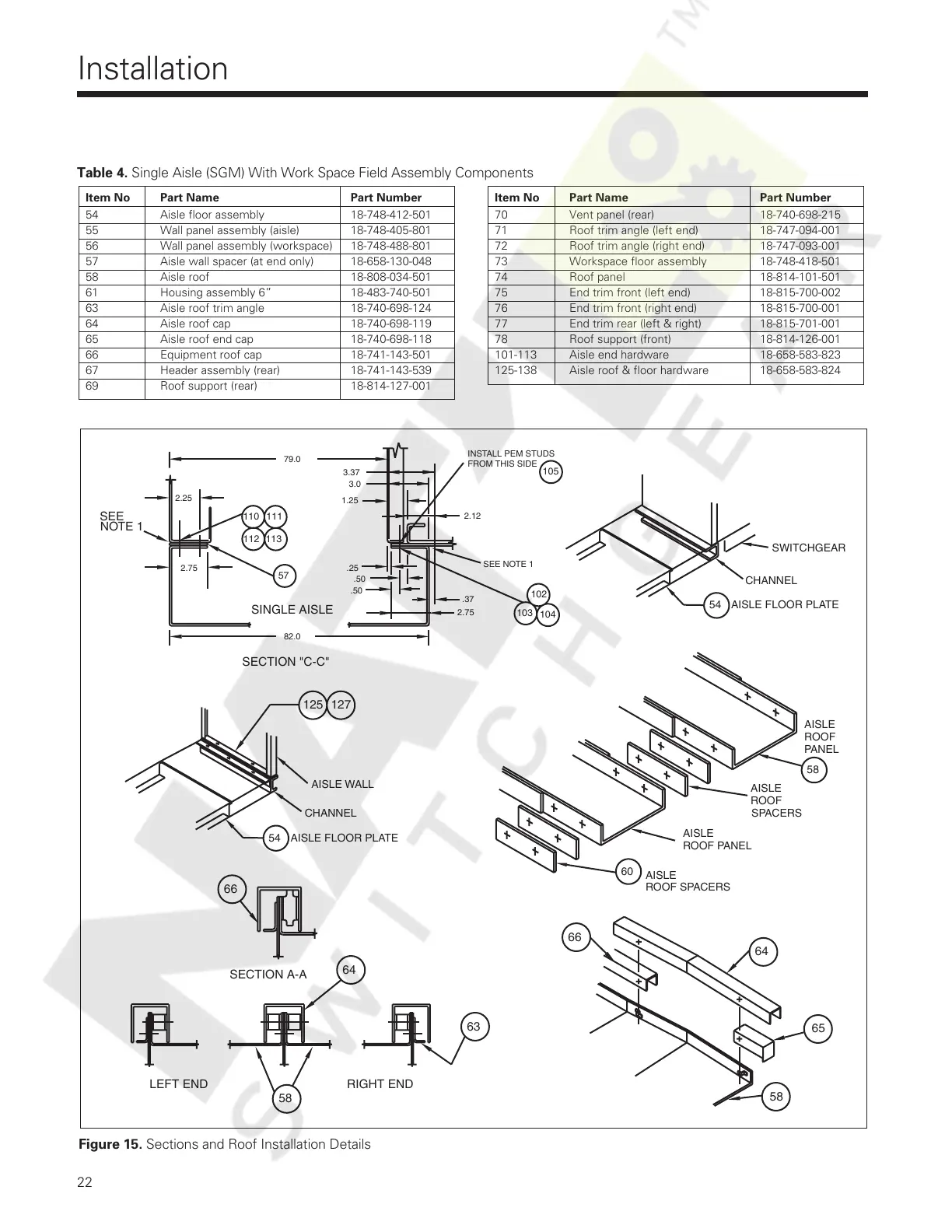

Figure 15. Sections and Roof Installation Details
82.0
79.0
.50
.50
.25
.37
2.75
1.25
3.0
3.37
2.75
2.25
LEFT END RIGHT END
SECTION A-A
CHANNEL
AISLE FLOOR PLATE
AISLE WALL
AISLE
ROOF SPACERS
ROOF PANEL
AISLE
AISLE
ROOF
ROOF
AISLE
SPACERS
PANEL
AISLE FLOOR PLATE
CHANNEL
SWITCHGEAR
SEE NOTE 1
FROM THIS SIDE
INSTALL PEM STUDS
2.12
SECTION "C-C"
SINGLE AISLE
SEE
NOTE 1
58
64
63
66
54
125 127
60
58
54
103
104
102
57
110 111
112
113
105
66
58
65
64
Installation
Table 4. Single Aisle (SGM) With Work Space Field Assembly Components
Item No Part Name Part Number
70 Vent panel (rear) 18-740-698-215
71 Roof trim angle (left end) 18-747-094-001
72 Roof trim angle (right end) 18-747-093-001
73 Workspace floor assembly 18-748-418-501
74 Roof panel 18-814-101-501
75 End trim front (left end) 18-815-700-002
76 End trim front (right end) 18-815-700-001
77 End trim rear (left & right) 18-815-701-001
78 Roof support (front) 18-814-126-001
101-113 Aisle end hardware 18-658-583-823
125-138 Aisle roof & floor hardware 18-658-583-824
Item No Part Name Part Number
54 Aisle floor assembly 18-748-412-501
55 Wall panel assembly (aisle) 18-748-405-801
56 Wall panel assembly (workspace) 18-748-488-801
57 Aisle wall spacer (at end only) 18-658-130-048
58 Aisle roof 18-808-034-501
61 Housing assembly 6” 18-483-740-501
63 Aisle roof trim angle 18-740-698-124
64 Aisle roof cap 18-740-698-119
65 Aisle roof end cap 18-740-698-118
66 Equipment roof cap 18-741-143-501
67 Header assembly (rear) 18-741-143-539
69 Roof support (rear) 18-814-127-001
22
