34
Instrument Transformers

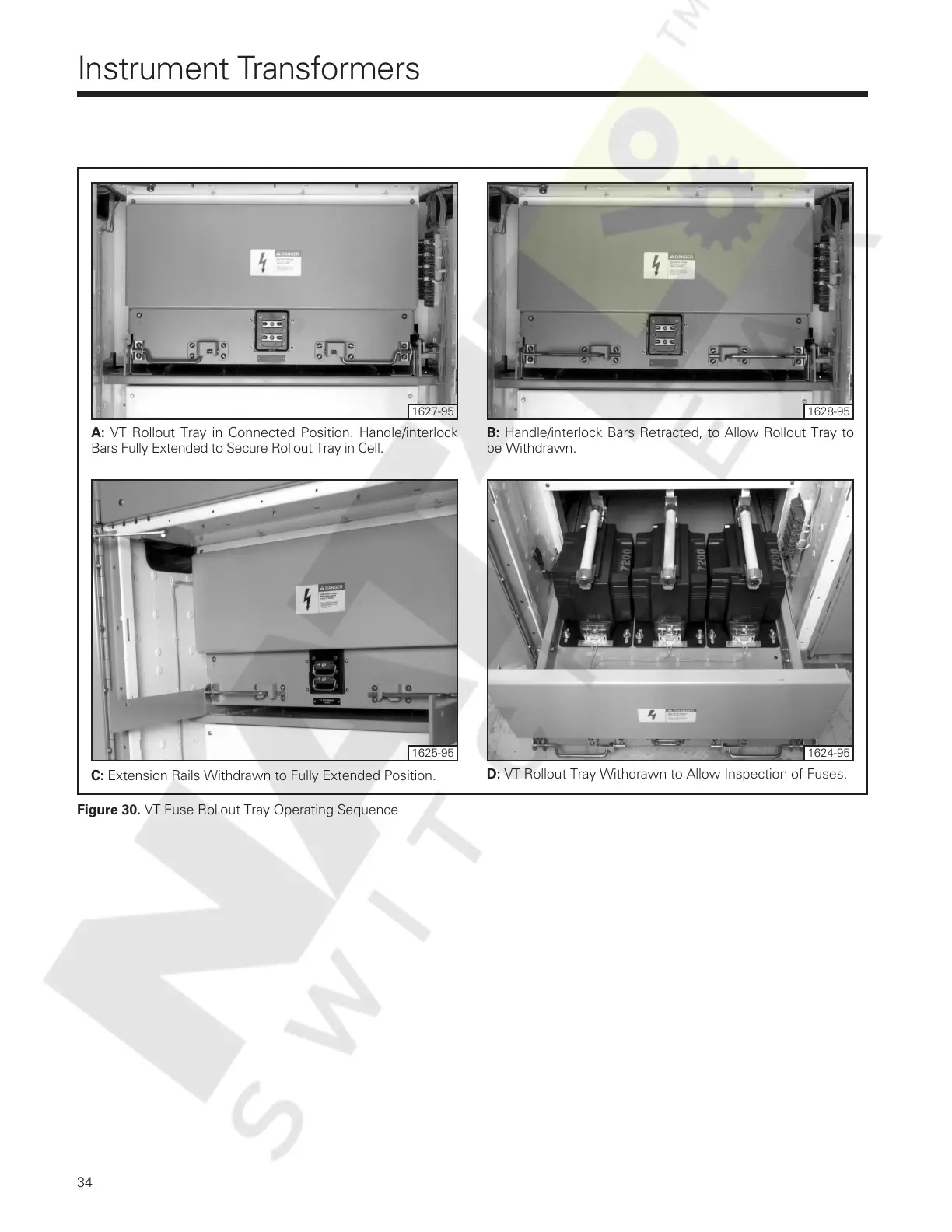

Figure 30. VT Fuse Rollout Tray Operating Sequence
A: VT Rollout Tray in Connected Position. Handle/interlock
Bars Fully Extended to Secure Rollout Tray in Cell.
B: Handle/interlock Bars Retracted, to Allow Rollout Tray to
be Withdrawn.
C: Extension Rails Withdrawn to Fully Extended Position.
D: VT Rollout Tray Withdrawn to Allow Inspection of Fuses.
1627-95 1628-95
1625-95 1624-95
