4 3ZX1012-0RK13-8HA1
F-DI

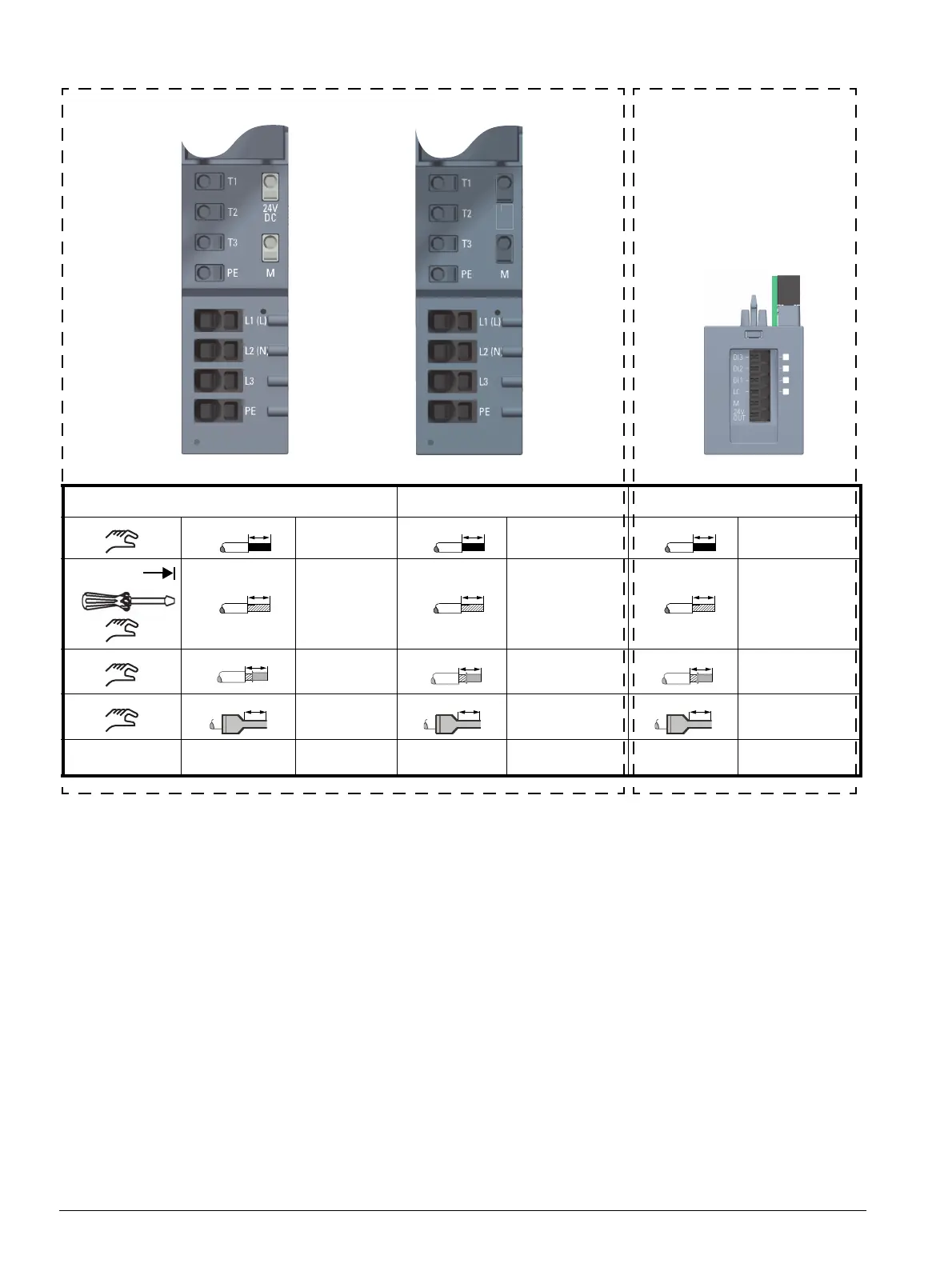

L1 (L), L2 (N), L3, PE T1, T2, T3, PE, 24 V DC, M, F-DI DI1 ... DI3, LC, M, 24 V OUT
1 x (1 ... 6) mm
2
1 x (0,5 ... 2,5) mm
2
1 x (0,2 ... 1,5) mm
2
1 x (1 ... 6) mm
2
1 x (0,5 ... 2,5) mm
2
1 x (0,2 ... 1,5) mm
2
1 x (1 ... 6) mm
2
1 x (0,5 ... 2,5) mm
2
1 x (0,25 ... 1,5) mm
2
1 x (1 ... 4) mm
2
1 x (0,5 ... 1,5) mm
2
1 x (0,25 ... 0,75) mm
2
AWG
1 x 18 ... 10
AWG
1 x 20 ... 12
AWG
1 x 24 ... 16
1
SZF 1-0,6-3,5
2
15 mm
10 mm
8 mm
15 mm
10 mm
8 mm
