Parameterizing the Mobile Panel
5.15 Functions for service and commissioning
Mobile Panels 2nd Generation
146 Operating Instructions, 09/2018, A5E33876626-AC

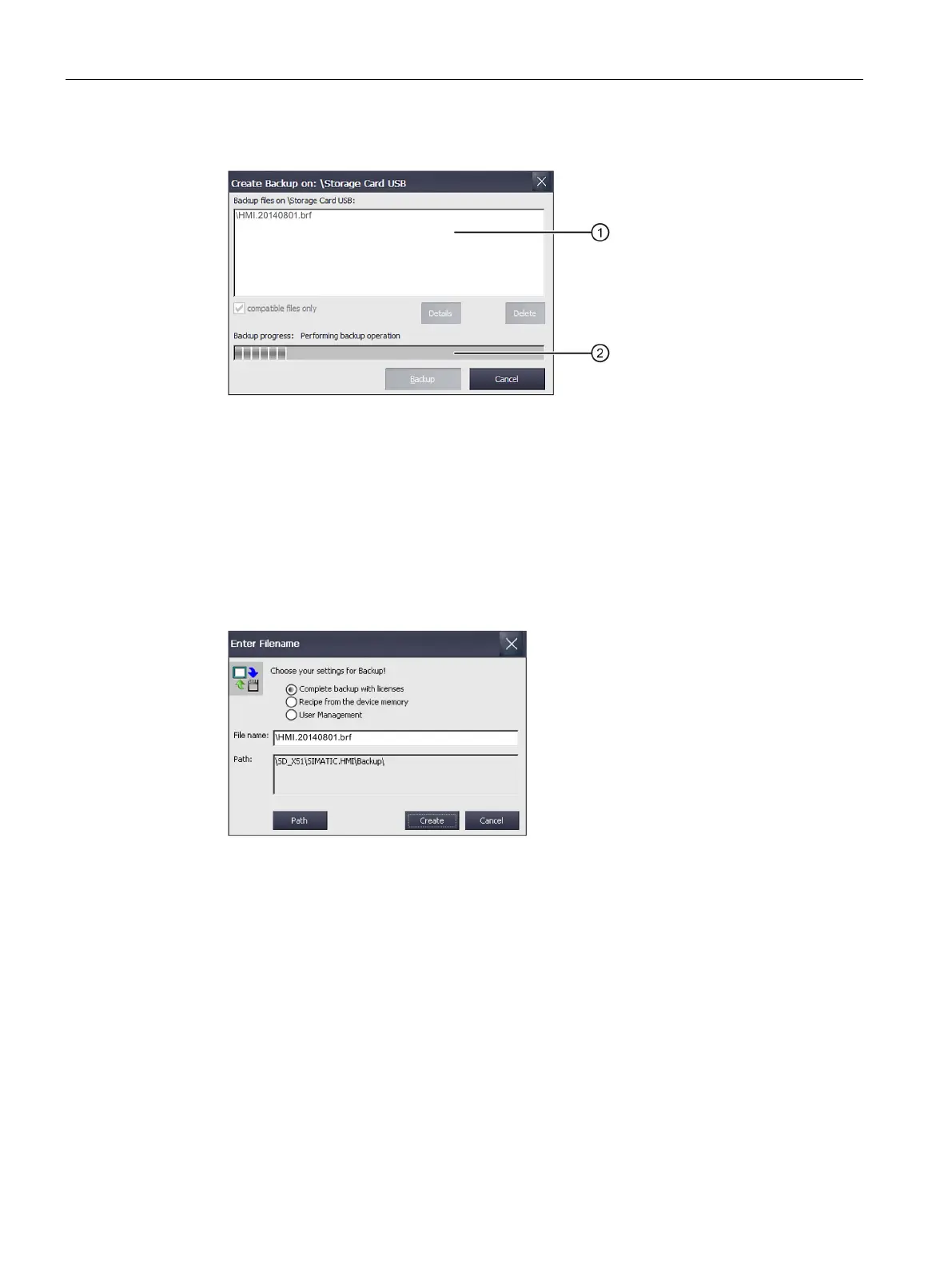

5. Press the "Next" button. The following dialog appears:
List of available backup files
Progress bar during data backup
6. If you only want to backup compatible files, select the "compatible files only" check box.
– Check box cleared:
The list displays all backup files. This gives the user an overview of the files stored on
the storage medium.
– Check box selected:
The list only displays the backups that are compatible with the device currently in use.
7. Press the "Backup" button. The following dialog appears:
8. Use the option buttons to select the data you want to back up.
9. If required, change the file name in the "File name" field.
10. Press the "Create" button.
The "Create Backup" dialog is displayed. A progress bar shows the status of the data
backup. When the backup process is completed, the Backup operation successfully
completed. message is displayed.
11. Acknowledge this message. The dialog closes.
12. Close the "Service & Commissioning" dialog.
The HMI device data is now saved on the storage medium.
Storage media (Page 22)
