1.2 Design of the Mobile Panels

Mobile Panels 2nd Generation

16 Operating Instructions, 09/2018, A5E33876626-AC

Rear view and interfaces

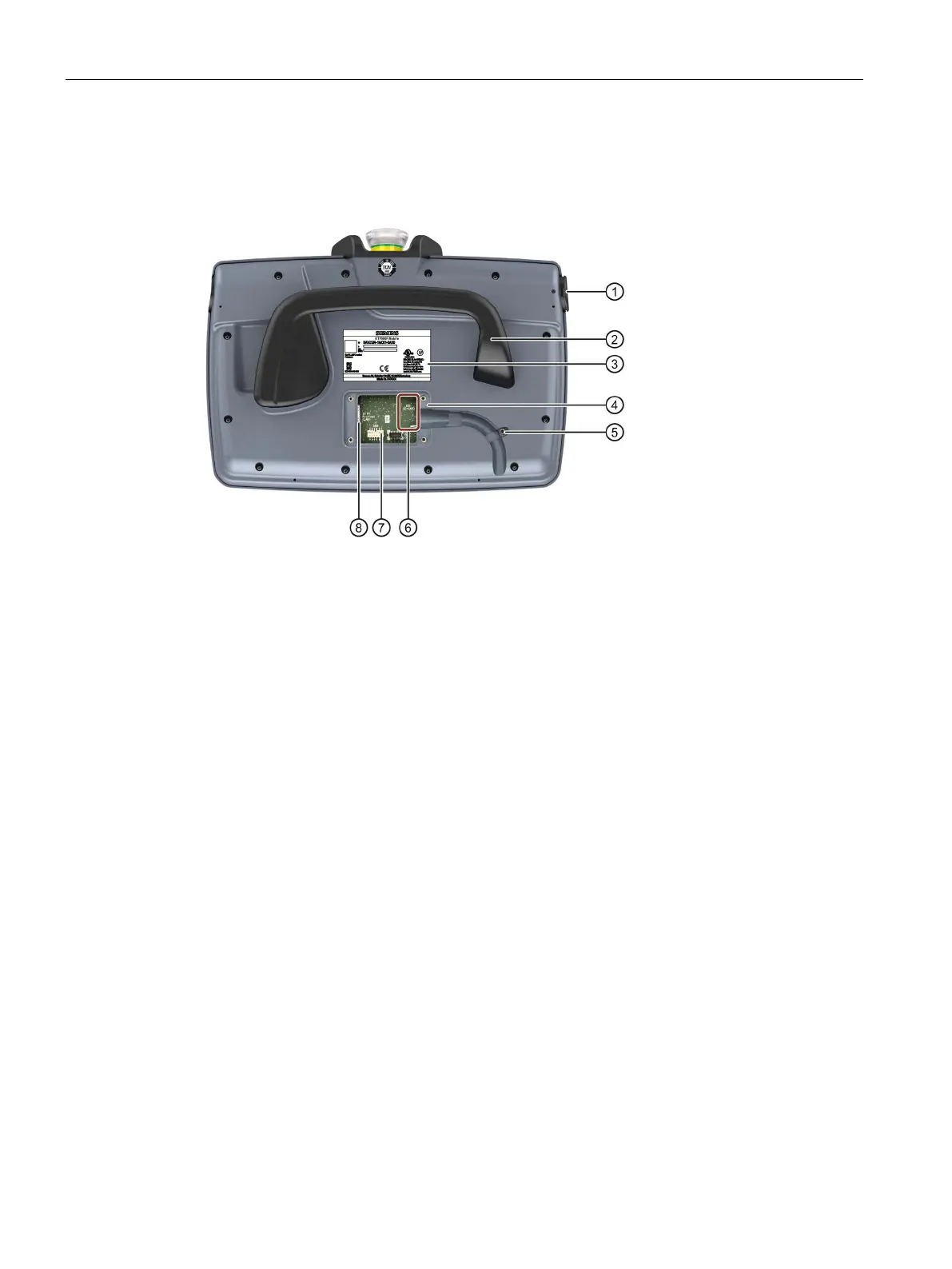

The figure below shows an example of the design of the fail-safe HMI device, KTP900F

Mobile. The other HMI devices of the type KTP Mobile are constructed similarly.

①

USB port with cover

⑤

Threaded sleeve for mounting screw of the cable retainer,

not for KTP400F Mobile

②

Handle

⑥

Slot for an SD memory card, not for KTP400F Mobile

③

Nameplate

⑦

12-pin connector for the connecting cable

④

Terminal compartment

⑧

RJ45 socket PROFINET (LAN)
