Configuring the Mobile Panel
6.1 Configuration in WinCC
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
171
● An F-CPU has been added to the project.
● The PROFIsafe address of the F-CPU is configured.
1. Double-click on "Device configuration".
2. Click on the icon of the HMI device.

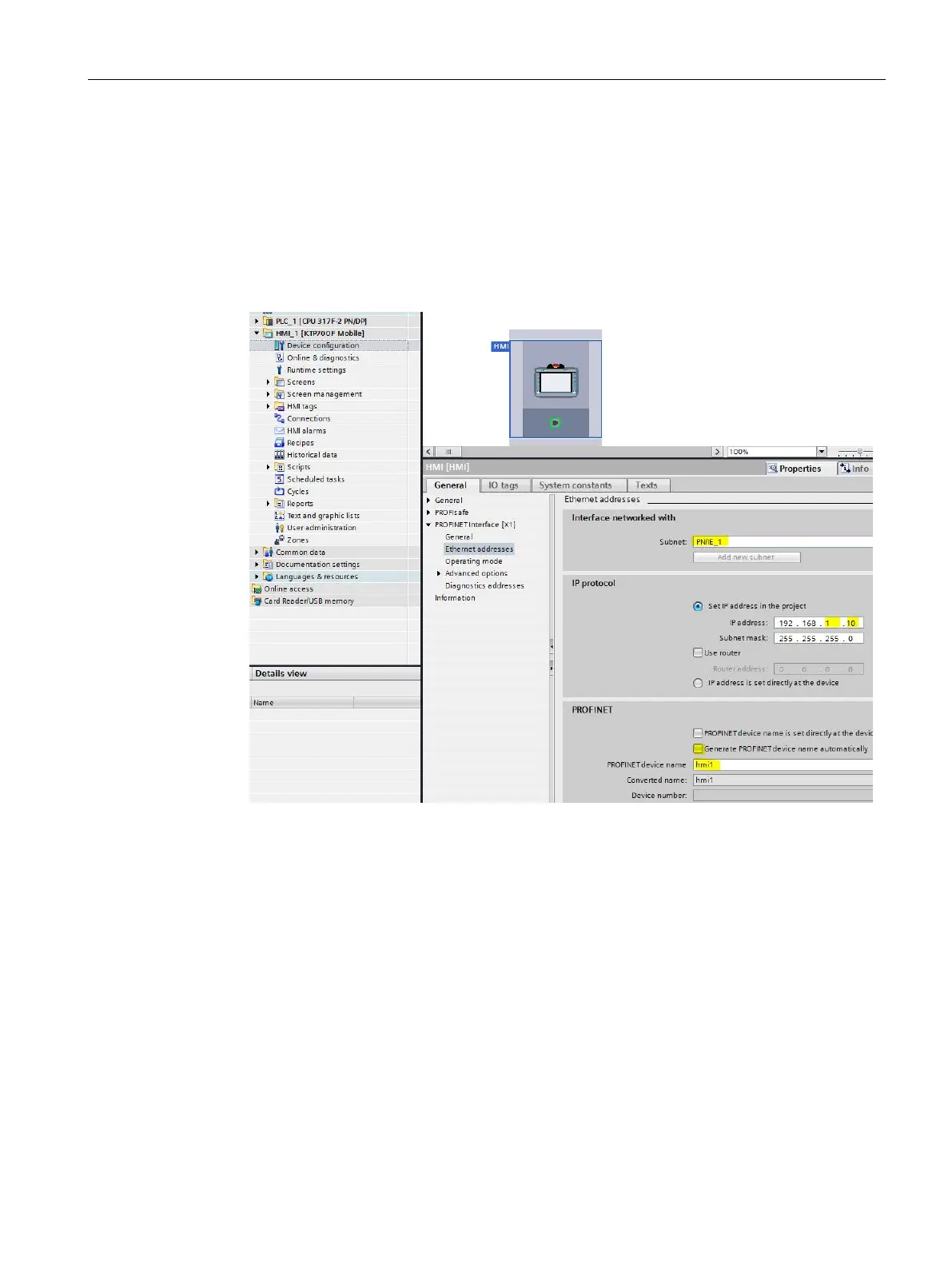

3. Select "PROFINET interface [X1] > Ethernet addresses" and enter the following
parameters:
– "Interface networked with": Subnet that is used by the fail-safe controller, in the
example "PN/IE_1"
– "IP protocol": Specify a unique address in the subnet for the HMI device. This address
must match the address that is set in the Control Panel of the HMI device, see section
"Specifying the IP address and name server (Page 132)".
– "PROFINET": Enter a device name. This device name must match the name defined
in the Control Panel of the HMI device, see section "Enabling PROFINET (Page 126)".
