Siemens SIMATIC HMI KTP700F Mobile User Manual

Configuring the Mobile Panel
6.5 Controlling and evaluating operator controls and display elements
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
185

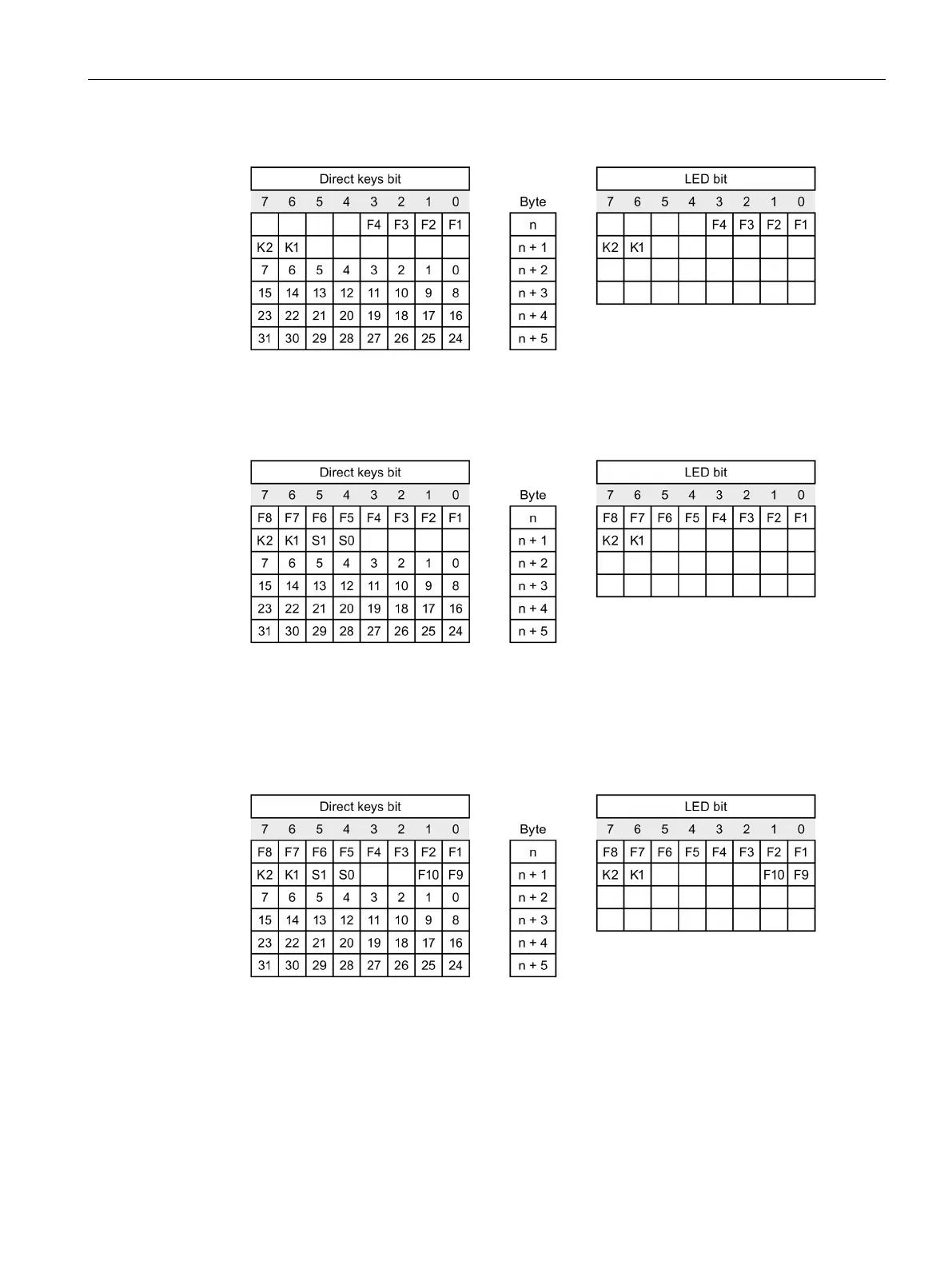

● KTP400F Mobile
F
Bit for function key
K1
Bit for left illuminated pushbutton
K2
Bit for right illuminated pushbutton
● KTP700 Mobile and KTP700F Mobile
F
Bit for function key
S
Bit for keyswitch
K1
Bit for left illuminated pushbutton
K2
Bit for right illuminated pushbutton
The bytes "n + 2" to "n + 5" contain the direct key bits for touch buttons.
● KTP900 Mobile and KTP900F Mobile
F
Bit for function key
S
Bit for keyswitch
K1
Bit for left illuminated pushbutton
K2
Bit for right illuminated pushbutton
The bytes "n + 2" to "n + 5" contain the direct key bits for touch buttons.
