Siemens SIMATIC HMI KTP700F Mobile User Manual

Technical specifications
11.10 Connection box compact interfaces
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
247
Enabling button

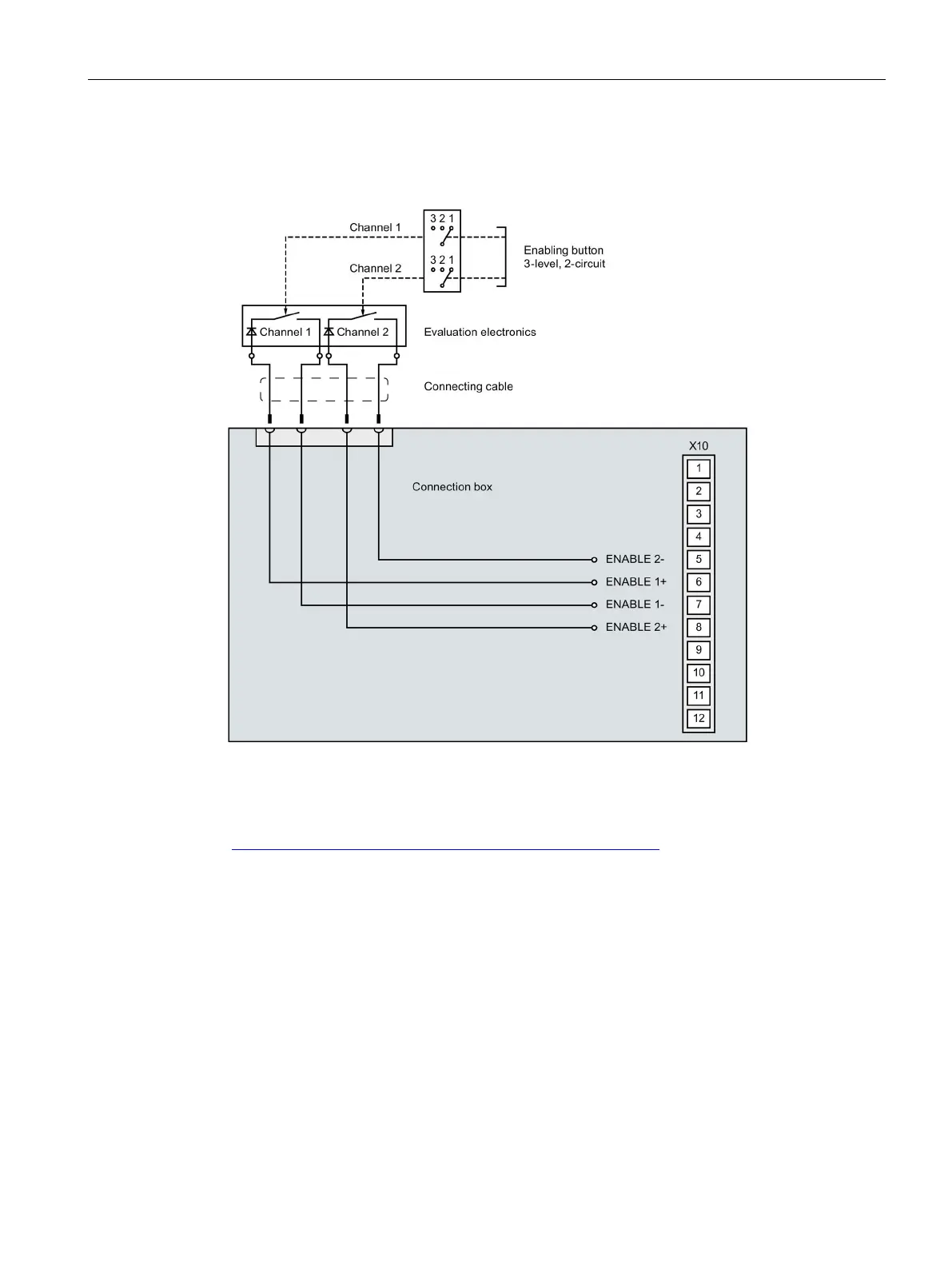

The figure below shows the wiring of the enabling button in the connection box compact.
See also
FAQs Mobile Panels 2nd Generation
(https://support.industry.siemens.com/cs/ww/en/ps/14746/faq
)
