Handling the Mobile Panel
4.2 Keyswitches, function keys and illuminated pushbuttons
Mobile Panels 2nd Generation
80 Operating Instructions, 09/2018, A5E33876626-AC
Information on the keyswitch of the fail-safe Mobile Panels

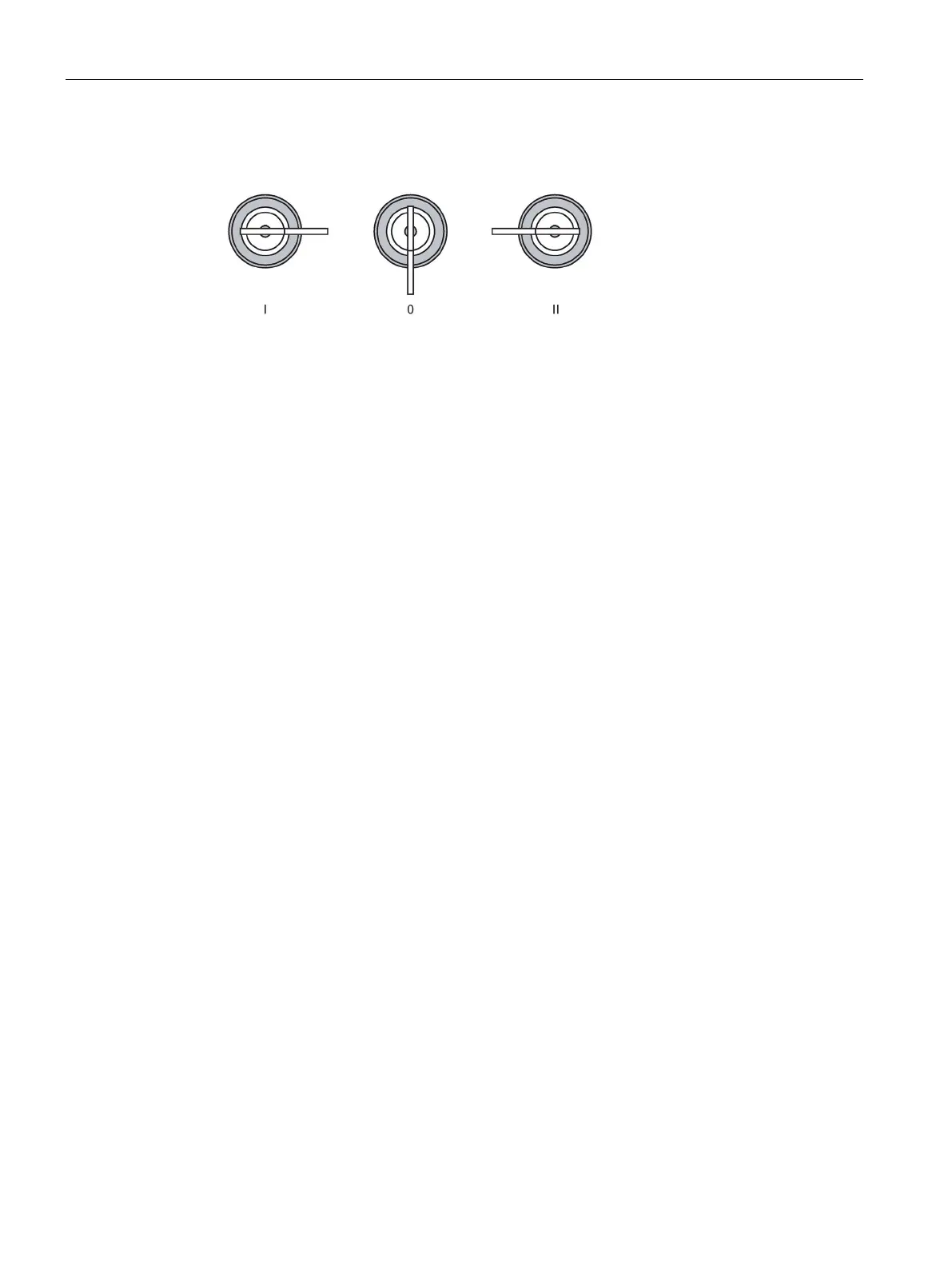

● The keyswitch has three switch positions: I, 0 and II.
Meaning of the switch positions:
– Switch position I and II: The configured function for this switch position is executed.
– Switch position 0: The called function is canceled.
● Remove the key if you do not use the HMI device.
The key can only be removed in switch position 0.
● The key does not have HMI device-specific coding. You can use the key for any KTP
Mobile type HMI device. Spare keys may be ordered as accessories.
Fail-safe KTP Mobile spare key (Page 22)
