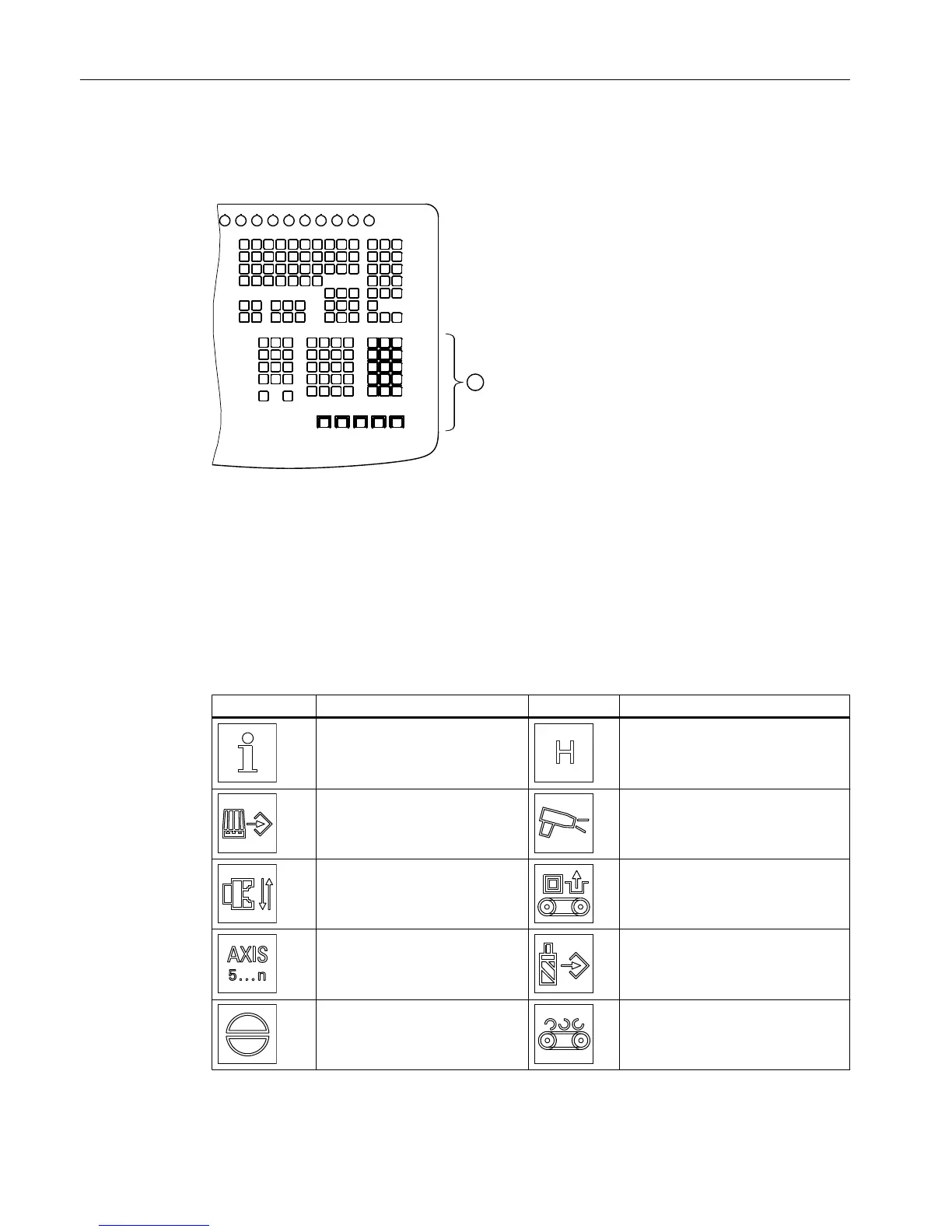

Figure 2-1 Position of the exchangeable key caps ①
There are different key caps for the different technologies:
● MCP 466C-M IE (milling): 10 units
● MCP 466C-T IE (turning): 37 units (33 labeled, 4 not labeled)
The printed symbols and their meaning are listed in the following tables depending on the
technology:
Table 2-1 Exchangeable key caps for the MCP 466C-M IE (milling)
Symbol Meaning Symbol Meaning
Info
(7155) (6035)
(7159)
Spray gun
(7156)
Chuck open/closed
(7158)
Unlock door for workpiece
conveyor (7162)
Axis switchover
(7154) (7161)
Acknowledgement
(7157)
Chip conveyor
(7160)
Description
2.4 Key caps
ERGOline Stage 3
12 Manual, 02/2015, 6FC5397-4FP40-0BA0
