4.3 Machine control panels
4.3.1 Overview
The position of the modules and interfaces is identical for both machine control panels.
① X302 USB-B (for connection of the CNC keyboard to the control panel)
② Slot for illuminated key (not in the scope of delivery)
③ X303 A/B 2 x USB-A
④ Slot for emergency stop button (not in the scope of delivery)
⑤ Handwheel (rapid traverse override rotary switch for MCP 466C-M)
⑥ Feedrate override rotary switch
⑦ Grounding lug
⑧ Cover plate
⑨ COM board IE

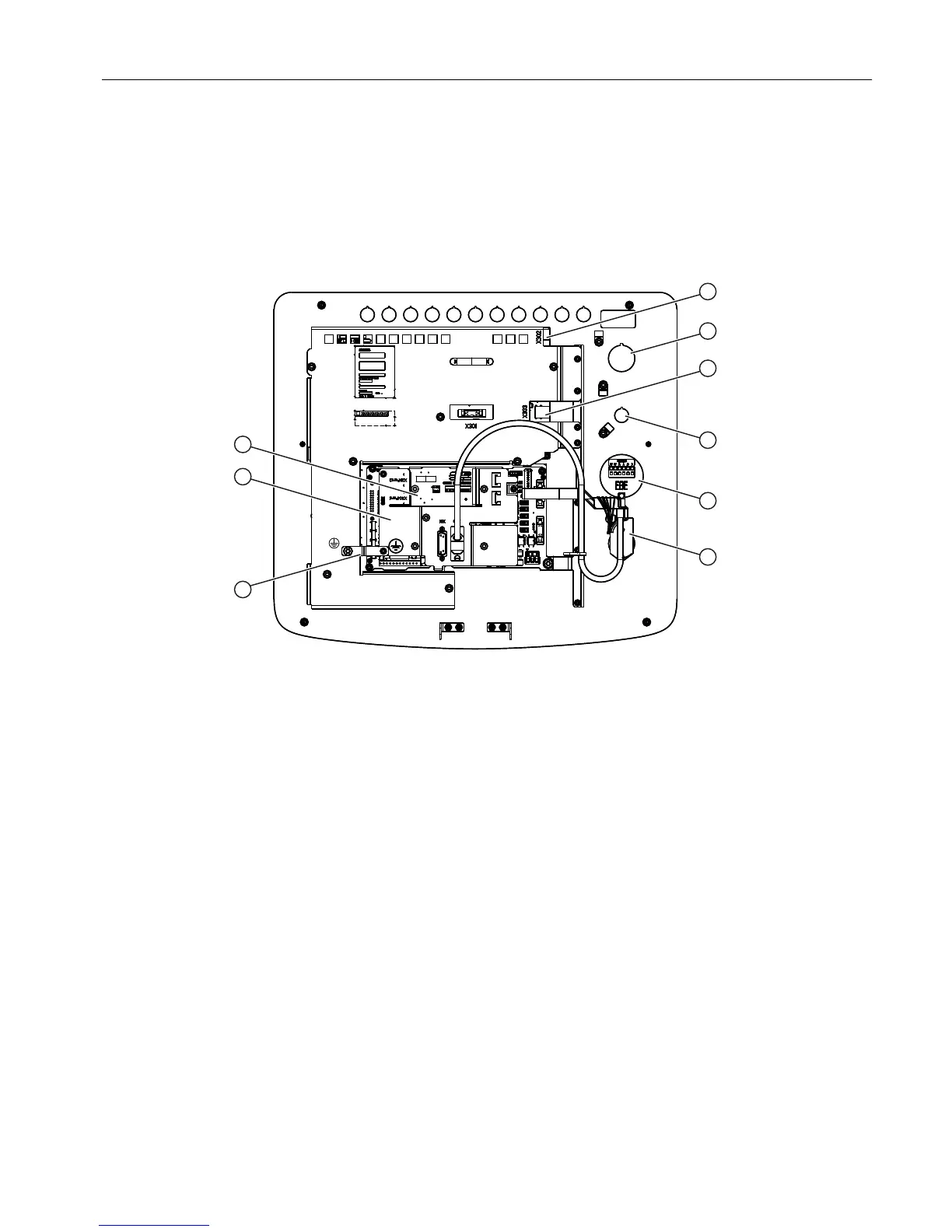

Figure 4-4 MCP 466C-T IE machine control panel (turning)
Meaning of the abbreviations in the "Signal type" table column:
I Input
O Output
B Bidirectional
V Power supply
Interfaces
4.3 Machine control panels
ERGOline Stage 3
Manual, 02/2015, 6FC5397-4FP40-0BA0 23
