4.2 PC
The device design corresponds to that of the SIMATIC IPC627D standard device
supplemented by an additional cover with an RJ45 socket for the connection of the USB link
cable.

① USB link interface

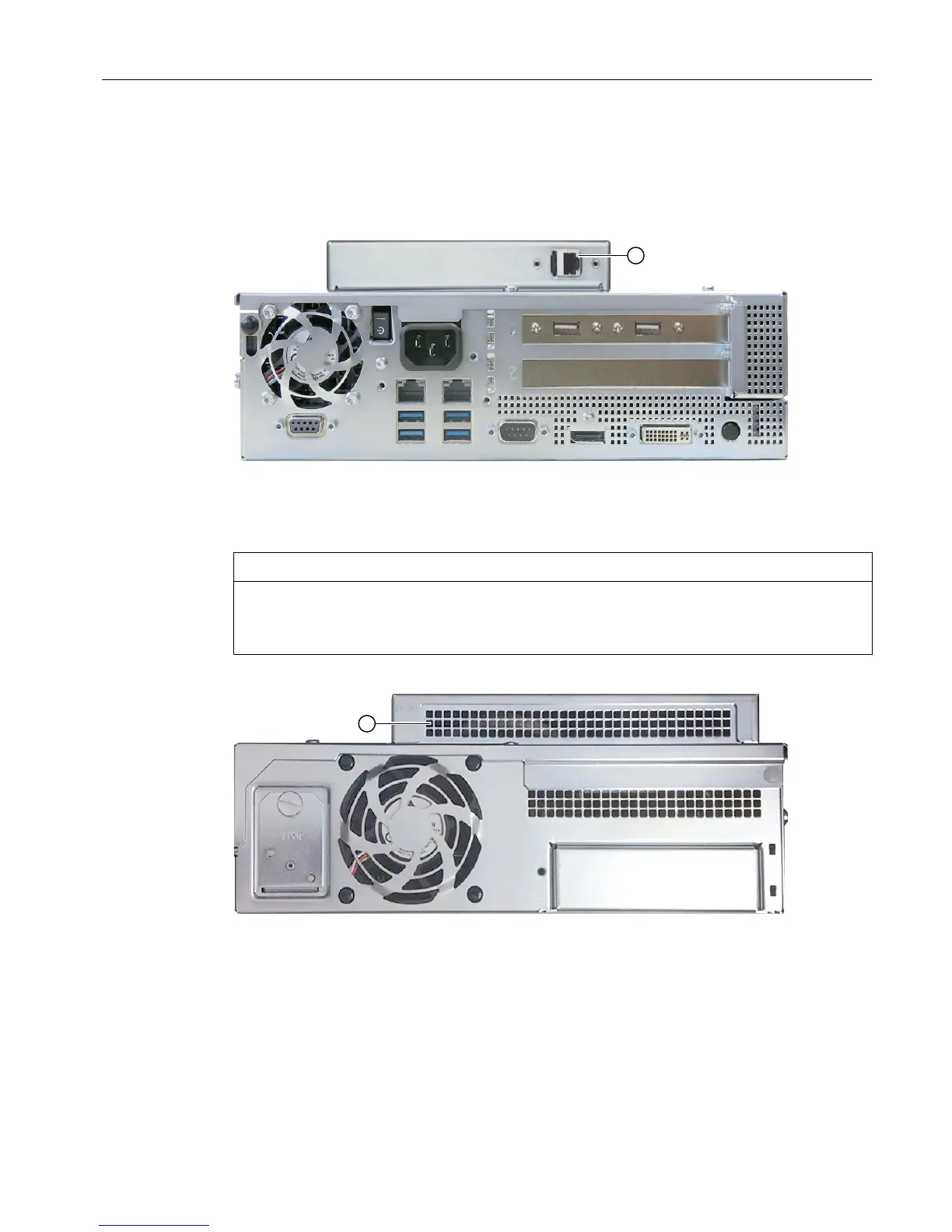

Figure 4-2 IPC627D DMG interfaces
NOTICE
No LAN/WAN connection
The RJ45 socket of the USB link interface is not an LAN/WAN connection and is only
approved for the connection of a SIMATIC IFP2200 MT OEM via CAT6 cable.

① Cover air outlet
Figure 4-3 IPC627D DMG rear view
Interfaces
4.2 PC
ERGOline Stage 3
Manual, 02/2015, 6FC5397-4FP40-0BA0 21
