SIMATIC Industrial Flat Panels V2 1500/1900 4:3/5:4
14 A5E50653860-AA, 01/2021
Overview
Product description
The devices have an industry-standard multi-touch TFT display in the format 4:3 or 5:4. The TFT LCD display is protected by a
scratch-resistant, non-reflecting mineral-glass pane and features a touch sensor.
Device view

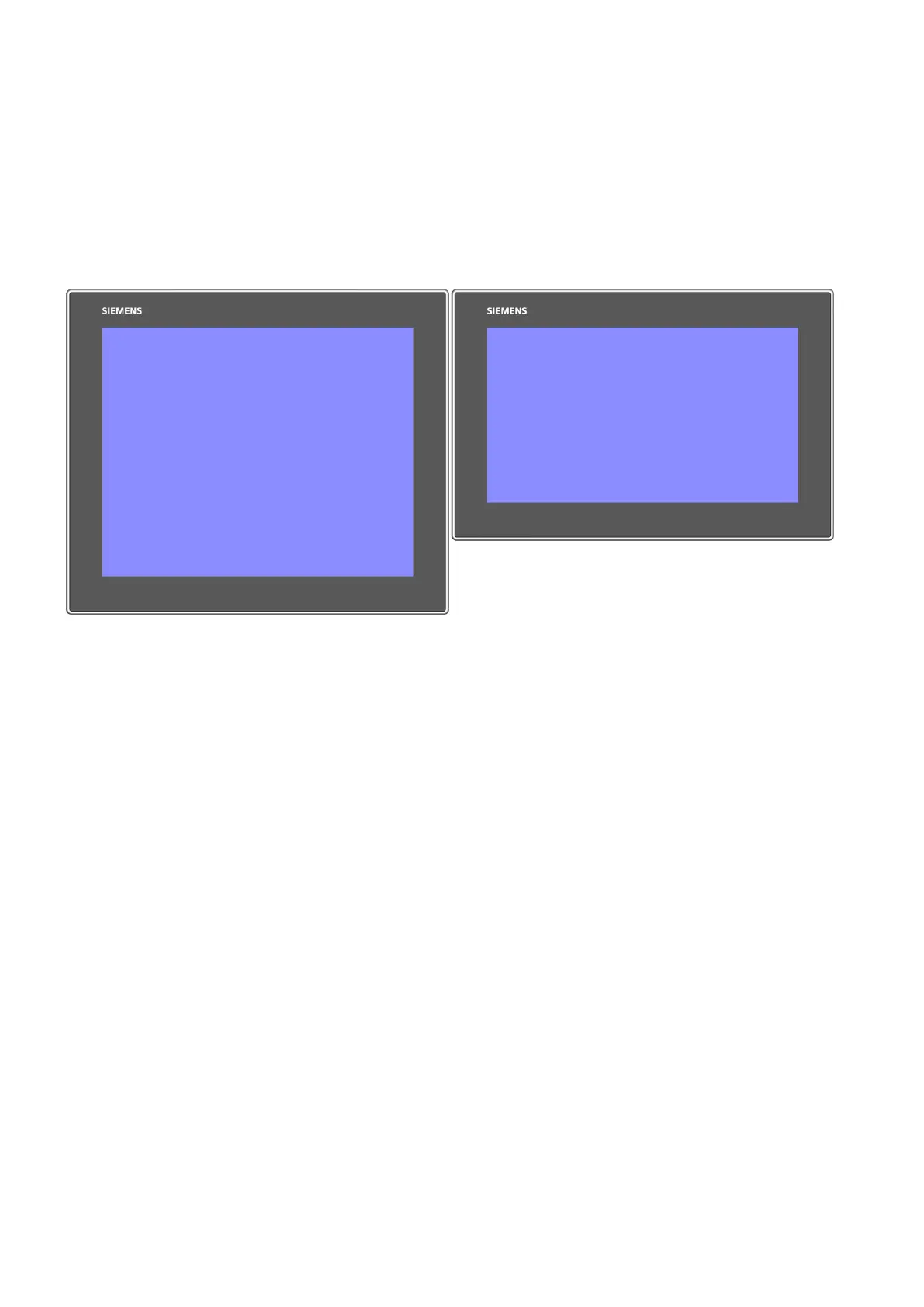

The following figure shows the 19" device on the left and the 15" device on the right:
Features
• Rugged aluminum front
• Brilliant TFT display with a wide reading angle
• Backlighting can be dimmed via software
• TFT display with16.7 million colors in the following sizes:
– 15" Multitouch: resolution: 1024 x 768 pixels (4:3)
– 19" Multitouch: resolution: 1280 x 1024 pixels (5:4)
• Power supply 24 V DC, AC power supply unit available as system component
• They are suitable for installation in machines, in control cabinets, consoles or in 19" racks.
• IP65 degree of protection/enclosure type 4 from the front in the installed state
