Siemens SIMATIC HMI - Dimension Drawings

SIMATIC Industrial Flat Panels V2 1500/1900 4:3/5:4
24 A5E50653860-AA, 01/2021
Dimension drawings
15" devices (4:3)

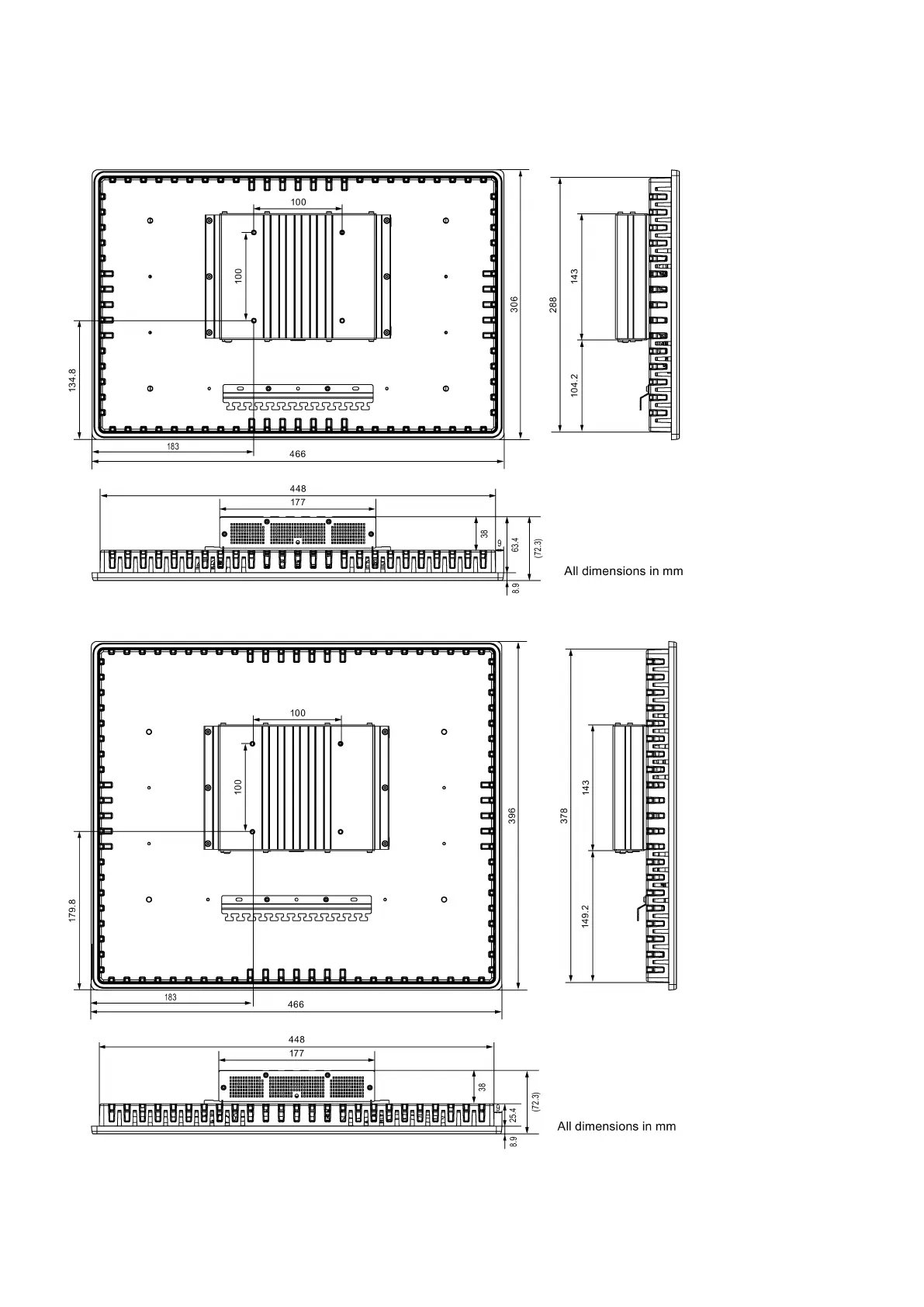

The following figure applies to IFP1500 V2 Standard 4:3 and IFP1500 V2 Extended 4:3:
19" devices (5:4)
The following figure applies to IFP1900 V2 Standard 5:4 and IFP1900 V2 Extended 5:4:
