Siemens SIMATIC NET IE FC RJ45 Plug 4x2 CAT 6A - Page 21

Frei verwendbar IE FC RJ45 Plug 4x2 CAT 6A
A5E34280610-AA, 08/20
21

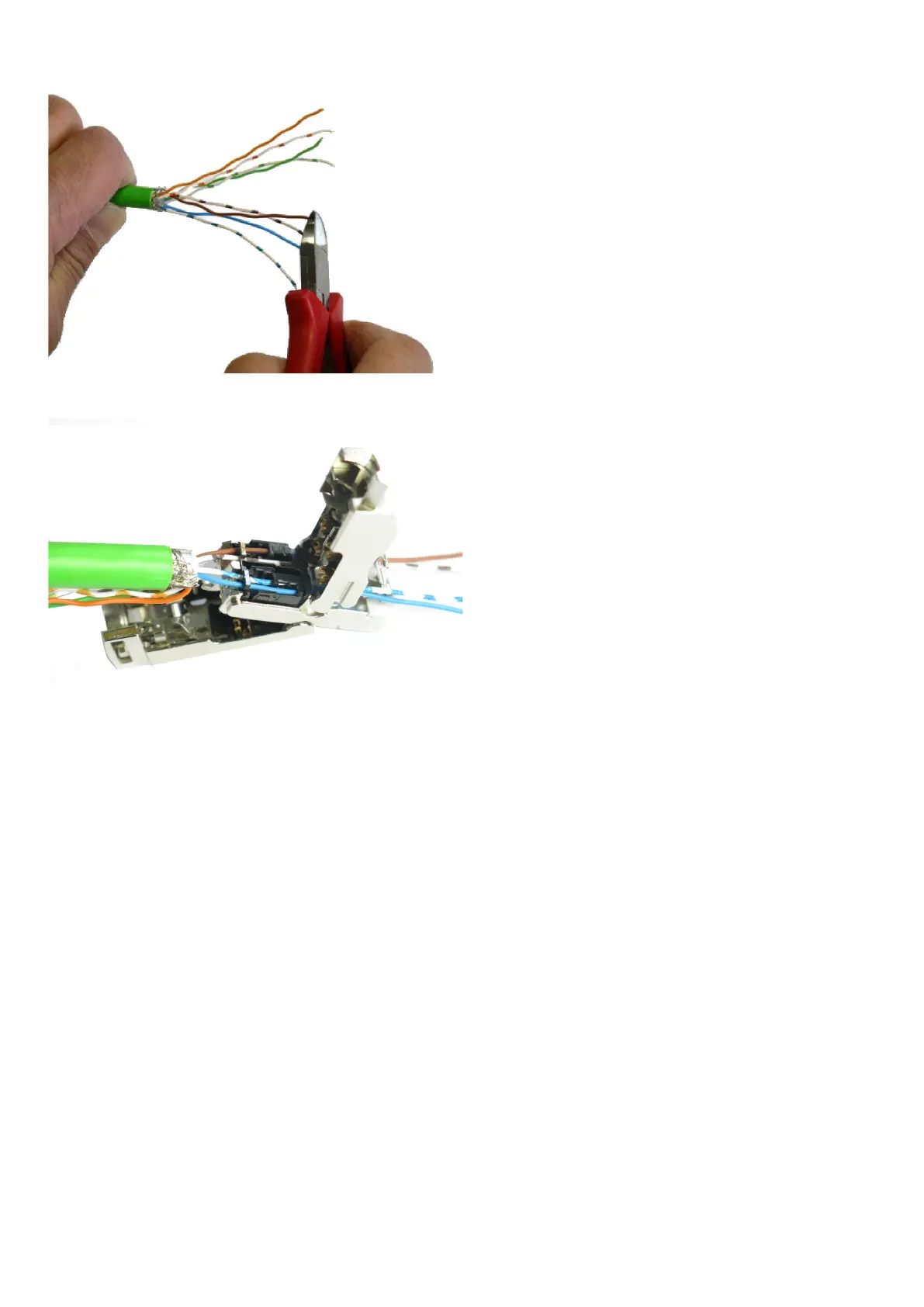

9. Release the wires and pull them parallel. Make sure that the ends are not crushed. Sometimes it is necessary to trim the ends.
10. Open the plug and insert the wires according to the color coding on the plug (see frame) into the guides in the plug. Start with the side of
blue/blue-white and brown/brown-white wires. Fixing the wires you may bend the ends.
