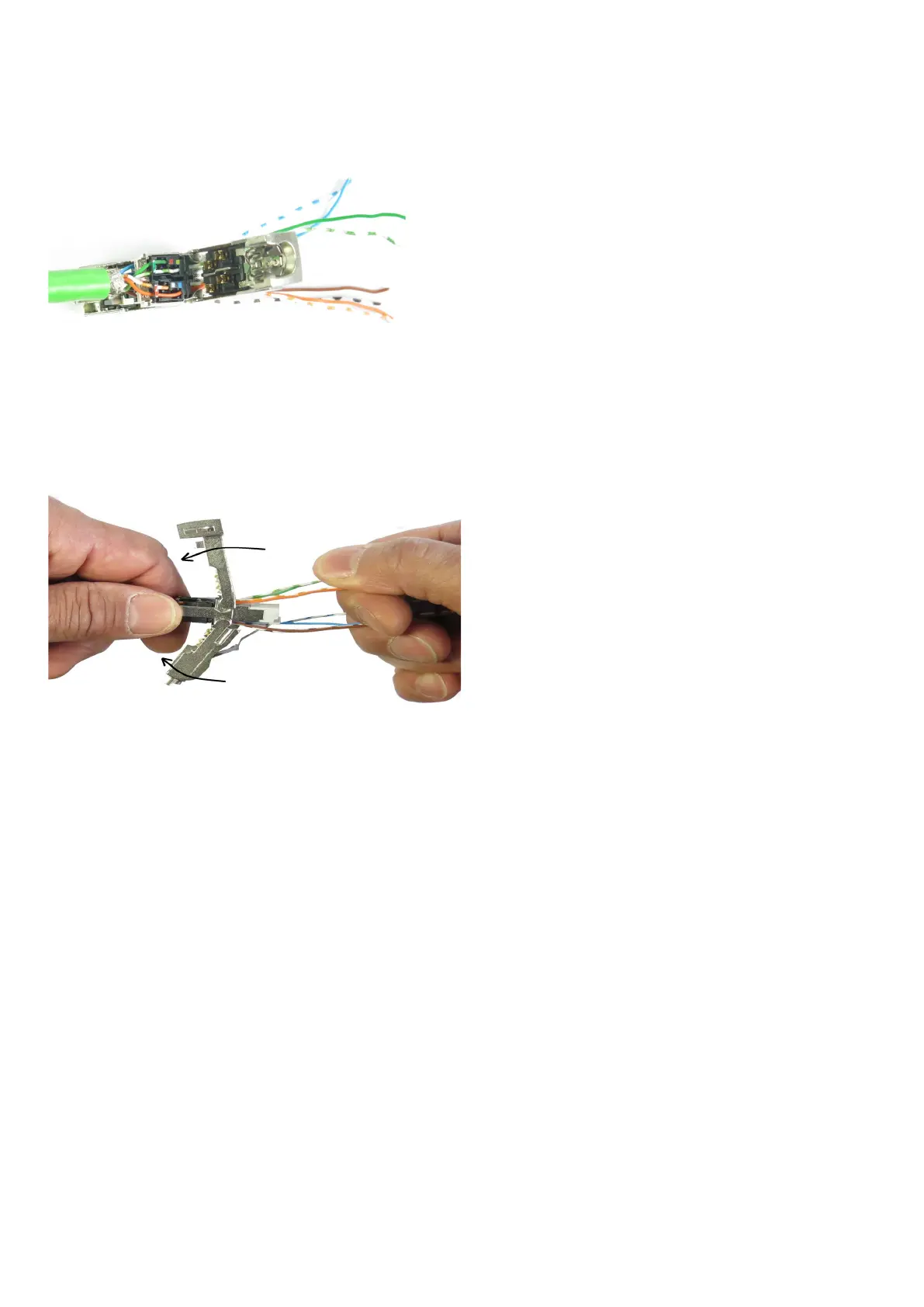

11. Pull the wires through the plug housing towards the front.
12. Insert the wires according to the color coding on the plug into the guides of the plug on the opposite side.
13. Make sure the cable shield is connected to the shield contacts and the jacket to the strain relief mandrel of the plug.
14. With the plug open, pull the wires completely out so that the cable shield makes correct contact in the plug (see arrows).
