Siemens SIMATIC NET IE FC RJ45 Plug 4x2 CAT 6A User Manual

Frei verwendbar IE FC RJ45 Plug 4x2 CAT 6A
A5E34280610-AA, 08/20
25
Fitting IE FC 2x2 cables with the IE FC RJ45 4x2 CAT 6A
Follow the steps 1 to 8 as described for assembling the IE FC RJ45 4x2 CAT 6A. The work through the following steps:

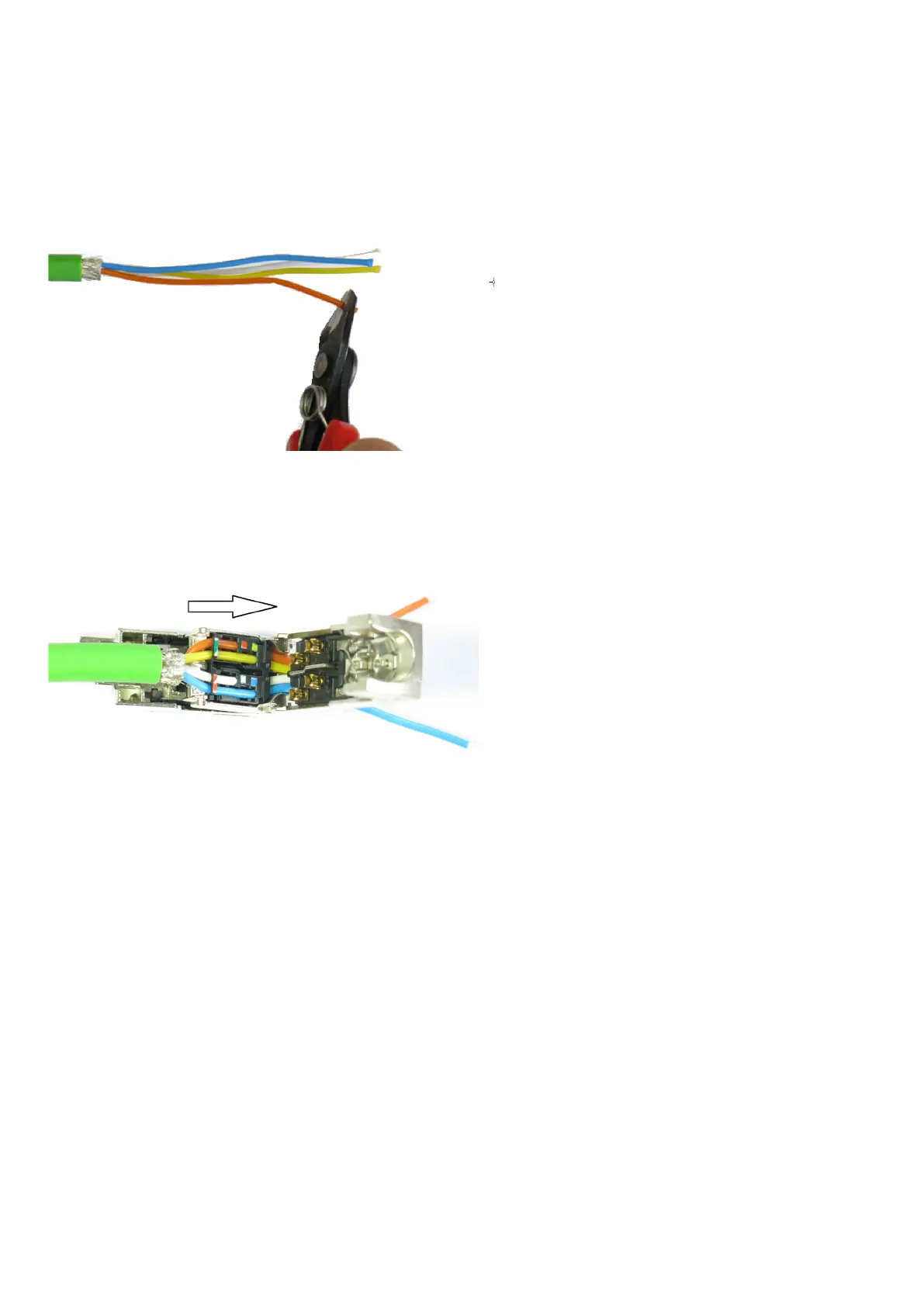

1. Fan out the wires and cut off the filler as close as possible to the shield braid. Make sure that the ends are not crushed. Sometimes it is
necessary to trim the ends. Cut the yellow and white wires shorter than the others.
2. Insert the wires according to the colors (see frame) into the plug.
Make sure the cable shield is connected to the shield contacts and the jacket to the strain relief mandrel of the plug.
