Installing the Device
2.6.2Wiring Examples
+
-

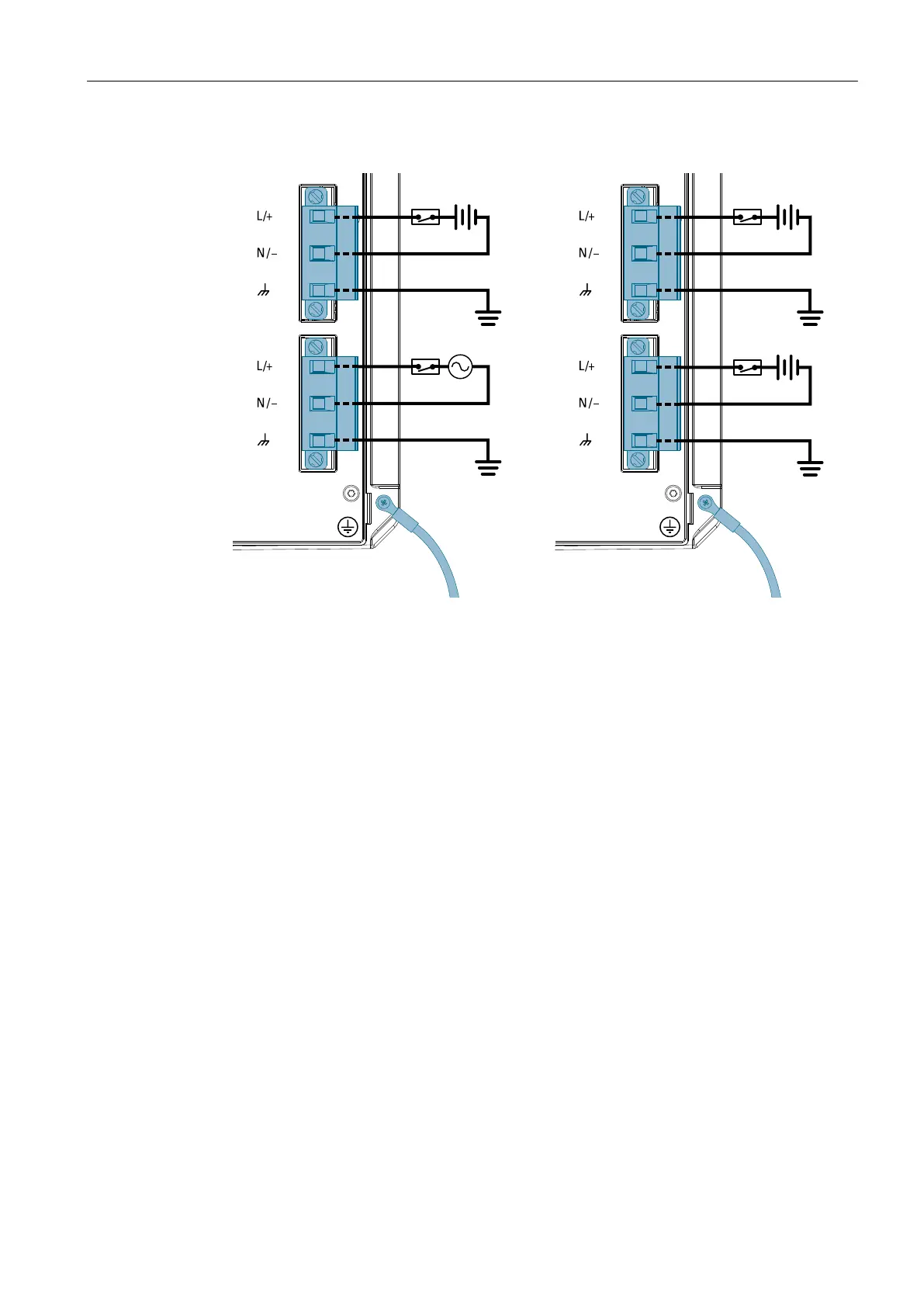

Figure2.13 Dual HI AC and DC Power
Supplies
+
-
+
-
Figure2.14 Dual HI DC Power Supplies
18
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
