Installing the Device
2.7Connecting the Device to the Network
LO Power Supply Configurations
+
-

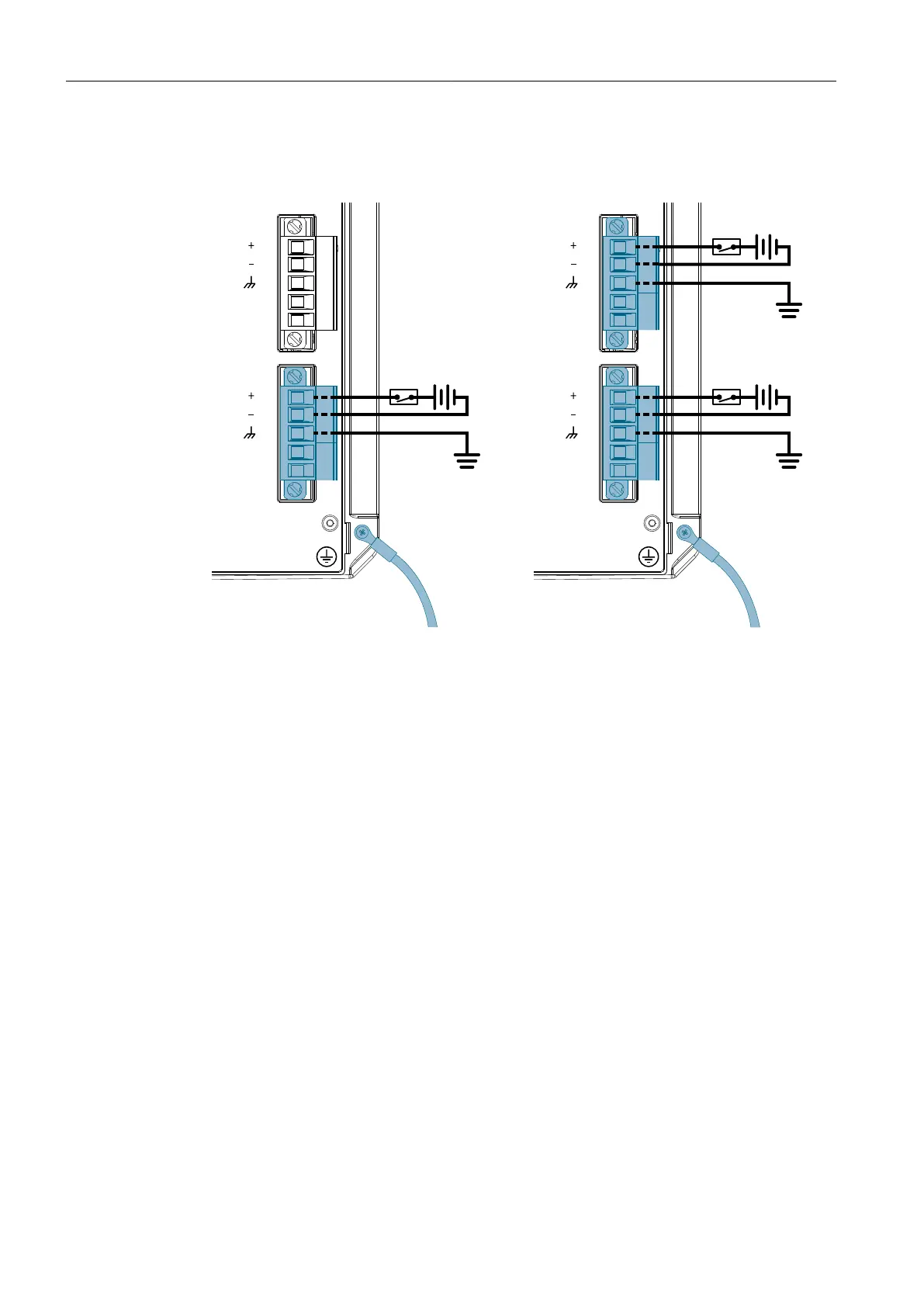

Figure2.15 Single LO DC Power Input
Configuration
+
-
+
-
Figure2.16 Dual LO DC Power Input
Configuration
2.7 Connecting the Device to the Network
Steps to connect the device to the network are application-specific.
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
