Communication Ports
4
The RUGGEDCOM RSG907R can be equipped with various types of communication
ports to enhance its abilities and performance.
1
2
3
1
Ports A and B
2
Port 5
3
Ports 1 to 4

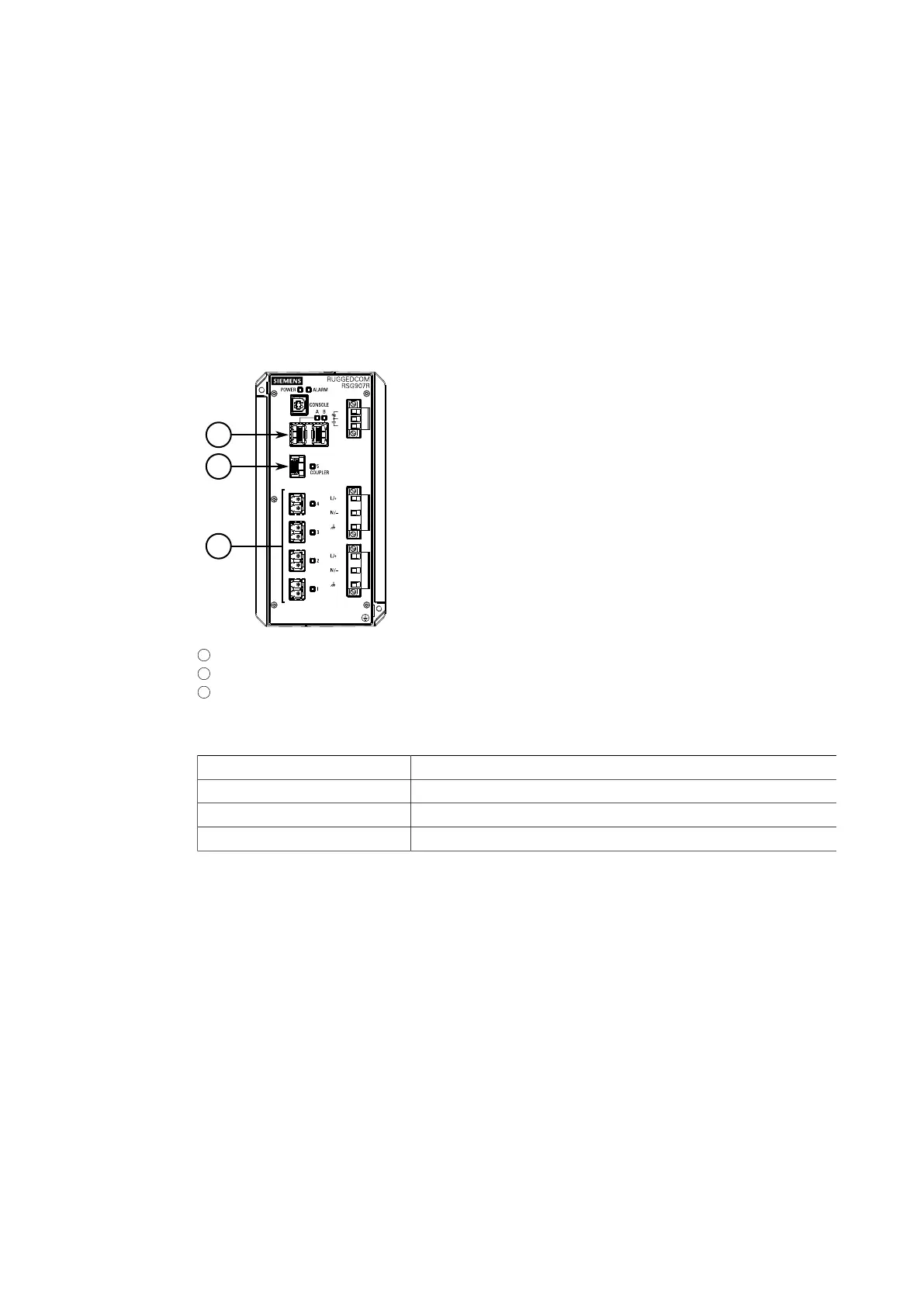

Figure4.1 Port Assignment
Port Type
A/B SFP Transceiver (1000Base-SX/LX)
5 SFP Transceivers (1000Base-SX/LX)
1 to 4 Fiber Optic (100Base-FX) Ethernet Ports
4.1 Redundant Network Access (RNA) Ports
The RUGGEDCOM RSG907R features three dedicated Small Form-factor Pluggable
(SFP) transceiver sockets for PRP/HSR applications:
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
27
