Technical Specifications

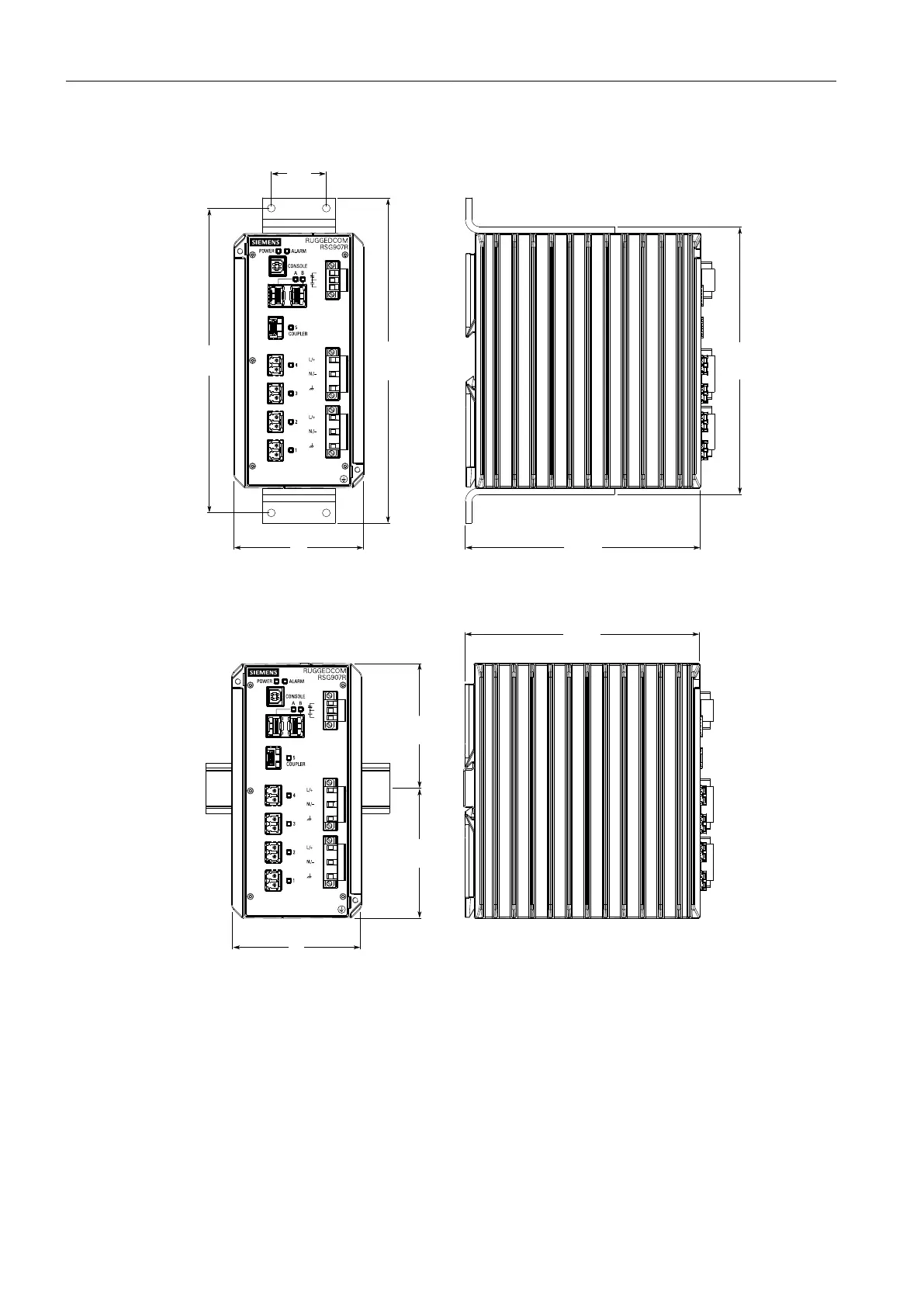

5.7Dimension Drawings
185.44
163.12
210.9
38.1
225.44
90
Figure5.2 Panel Mount Dimensions
86.41
90
90.11
162.72
Figure5.3 DIN Rail Mount Dimensions
RUGGEDCOM RSG907R
Installation Manual, 02/2021, C79000-G8976-1387-12
35
