4.6 Fitting the IE FC RJ-45 Plug 180
IE FC RJ45 Plug 180
The rugged node connectors are designed for industry with PROFINET-compliant connectors
and provide additional strain and bending relief with a locking mechanism on the casing.
Assembly of the IE FC RJ45 Plug 180 to the IE FC Standard Cable
For information on assembling an IE FC RJ45 Plug 180 on a SIMATIC NET Industrial Ethernet
FastConnect cable, please refer to the instructions supplied with the IE FC RJ45 Plug.

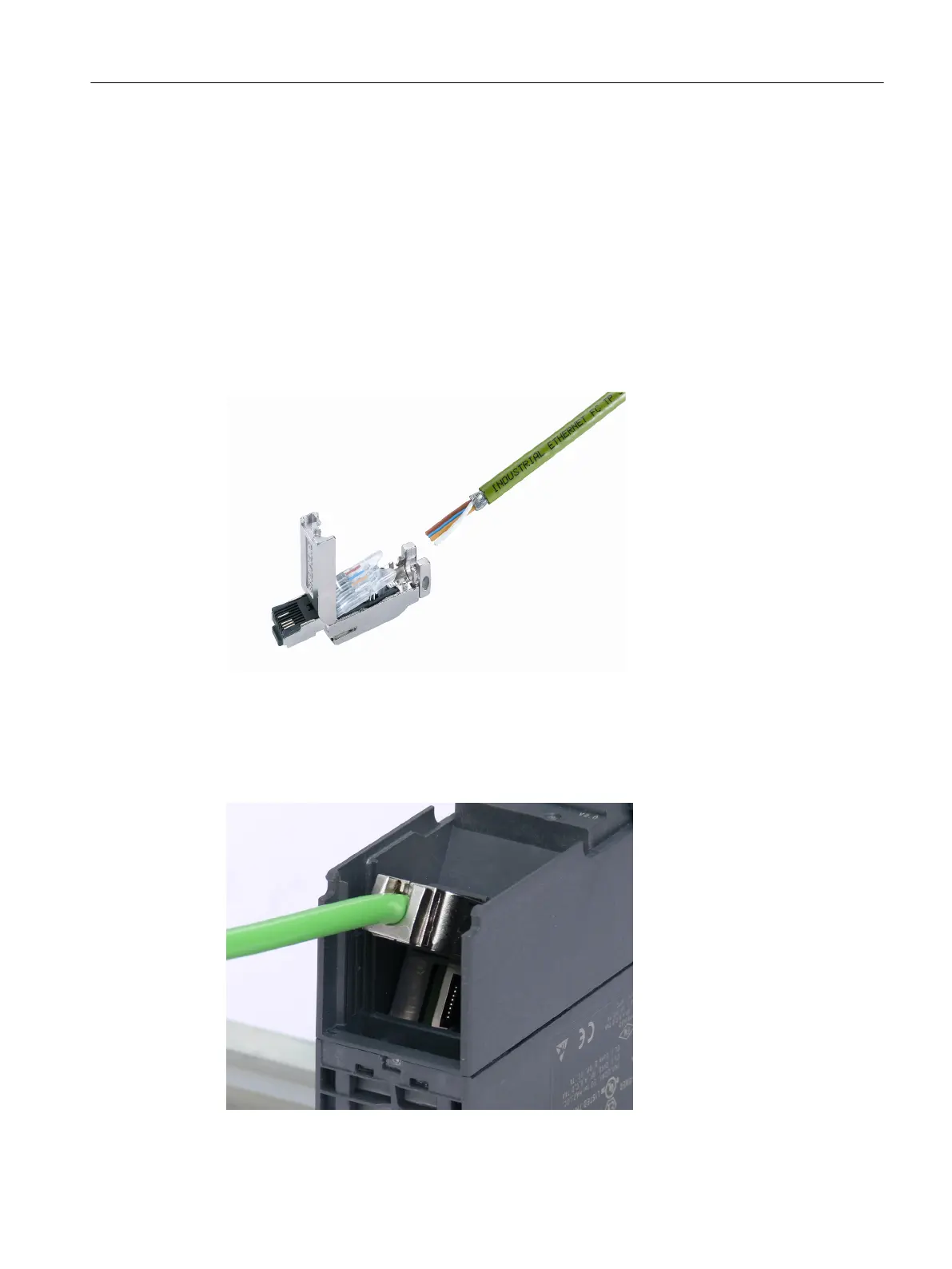

Figure 4-4 IE FC RJ45 Plug 180
Inserting the IE FC RJ45 Plug 180
Insert the IE FC RJ45 Plug 180 into the twisted-pair interface of the CSM 377 until it locks in place.
Figure 4-5 Inserting the IE FC RJ45 Plug 180
Installation
4.6 Fitting the IE FC RJ-45 Plug 180
Compact Switch Module CSM 377
Operating Instructions, 06/2022, A2B00073499-02 29

Siemens SIMATIC NET S7-300 Specifications

General

Product Type Designation	SIMATIC NET S7-300
Mounting	DIN rail mounting
Protection Class	IP20
CPU Models	Various models available (e.g., CPU 312, CPU 314)
Communication Interfaces	MPI, PROFIBUS DP
Power Supply	24 V DC power supply required. Different power supply modules available.
I/O Modules	Digital input modules, digital output modules, analog input modules, analog output modules
Programming	STEP 7 software
Supply Voltage	24V DC or 120/230V AC (depending on model)
Digital Inputs	Available via digital input modules
Digital Outputs	Available via digital output modules
Analog Inputs	Available via analog input modules
Analog Outputs	Available via analog output modules
Communication Functions	MPI, PROFIBUS DP, Ethernet (depending on model)
Protocols	MPI, PROFIBUS DP, TCP/IP (depending on model)
Operating Temperature	0°C to 60°C
Storage Temperature	70 °C
Memory	Depends on CPU model (e.g., 32 KB to 1.5 MB)
