• Protocol
Shows the version of the ICMP protocol.
• Type
Specify the ICMP packet type. A few examples are shown below:
– Destination Unreachable
IP frame cannot be delivered.
– Time Exeeded
Time limit exceeded
– Echo-Request
Echo request, better known as ping.
• Code
The code describes the ICMP packet type in greater detail. The selection depends on
the selected ICMP packet type.
With "Destination Unreachable", for example "Code 1" host cannot be reached.
4.7.5.6 IP protocols

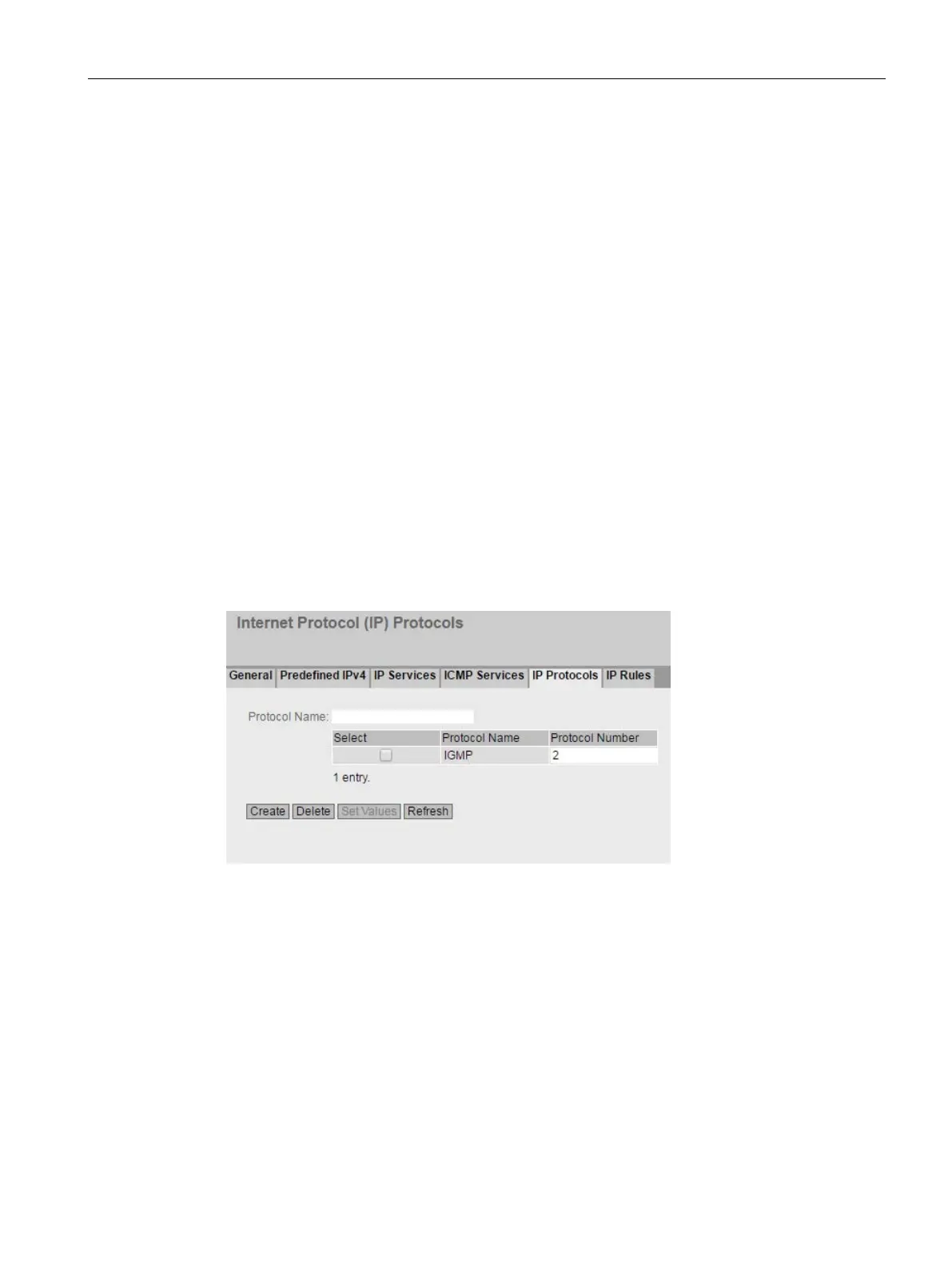

On this WBM page, you can configure user-defined protocols, e.g. IGMP for multicast
groups. You select a protocol name and assign the service parameters to it. When you
configure the IP rules, you simply use this protocol name.
Description
The page contains the following:
• Protocol Name
Enter a name for the protocol.
