Configuring with Web Based Management
6.3 "Wizard" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
100 Configuration Manual, 08/2018, C79000-G8976-C267-13
Antenna Settings
Introduction

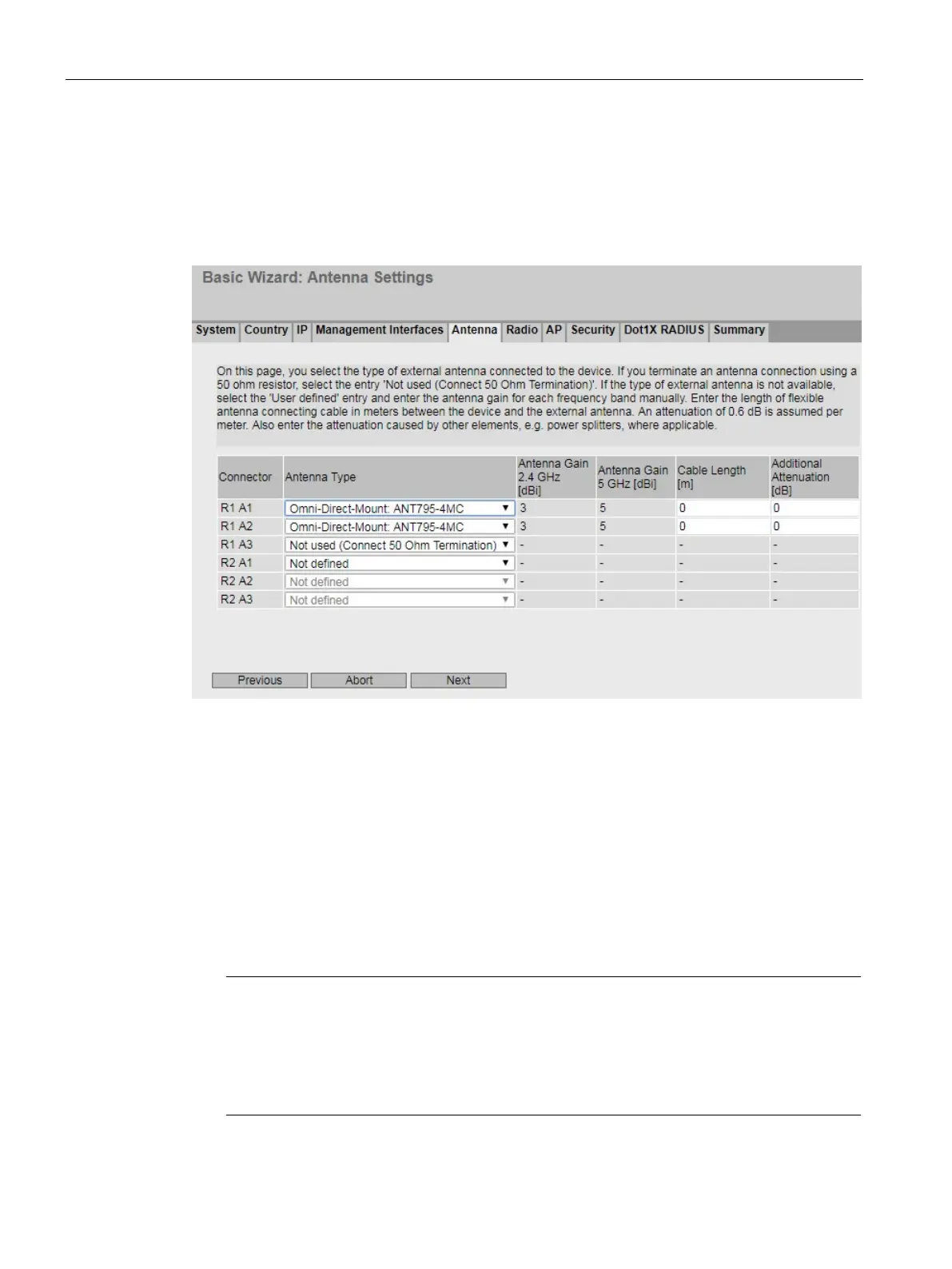

On this Basic Wizard page, you configure the settings for the external antenna.
This table contains the following columns:
●
Shows the name of the relevant antenna connector.
●
Select the type of external antenna connected to the device. If the type of your antenna is
not available, select the entry "User defined".
Connectors that are not used must have a 50 Ω terminating resistor fitted. Select the
entry "Not used (Connect 50 Ohm Termination)".
Note
50 Ω terminating resistor
Each WLAN interface has three antenna connectors. The antennas R1A1 and R2A1
must be always be connected as soon as the associa
ted WLAN Interface is turned on. If
no antenna is connected, the relevant interface must also be disabled for RX and TX.
Otherwise, there may be transmission disruptions.
