Installation and removal
5.6 Installing on a DIN rail
SCALANCE W788-x / W748-1
44 Operating Instructions, 03/2022, A5E03678333-17
5.6 Installing on a DIN rail
The SCALANCE W7x8 is suitable for rail mounting on 35 mm DIN EN 50022 rails.
Mounting adapter for DIN rail
Note
The mounting adapter for installation on a DIN rail is not included in the scope of
delivery, see
Accessories (Page 23).
The mounting adapter consists of the following parts:
• 1 DIN rail slider
• 1 spring
• 2 screws
Mount the mounting adapter on the rear of the device as shown in the figure below:

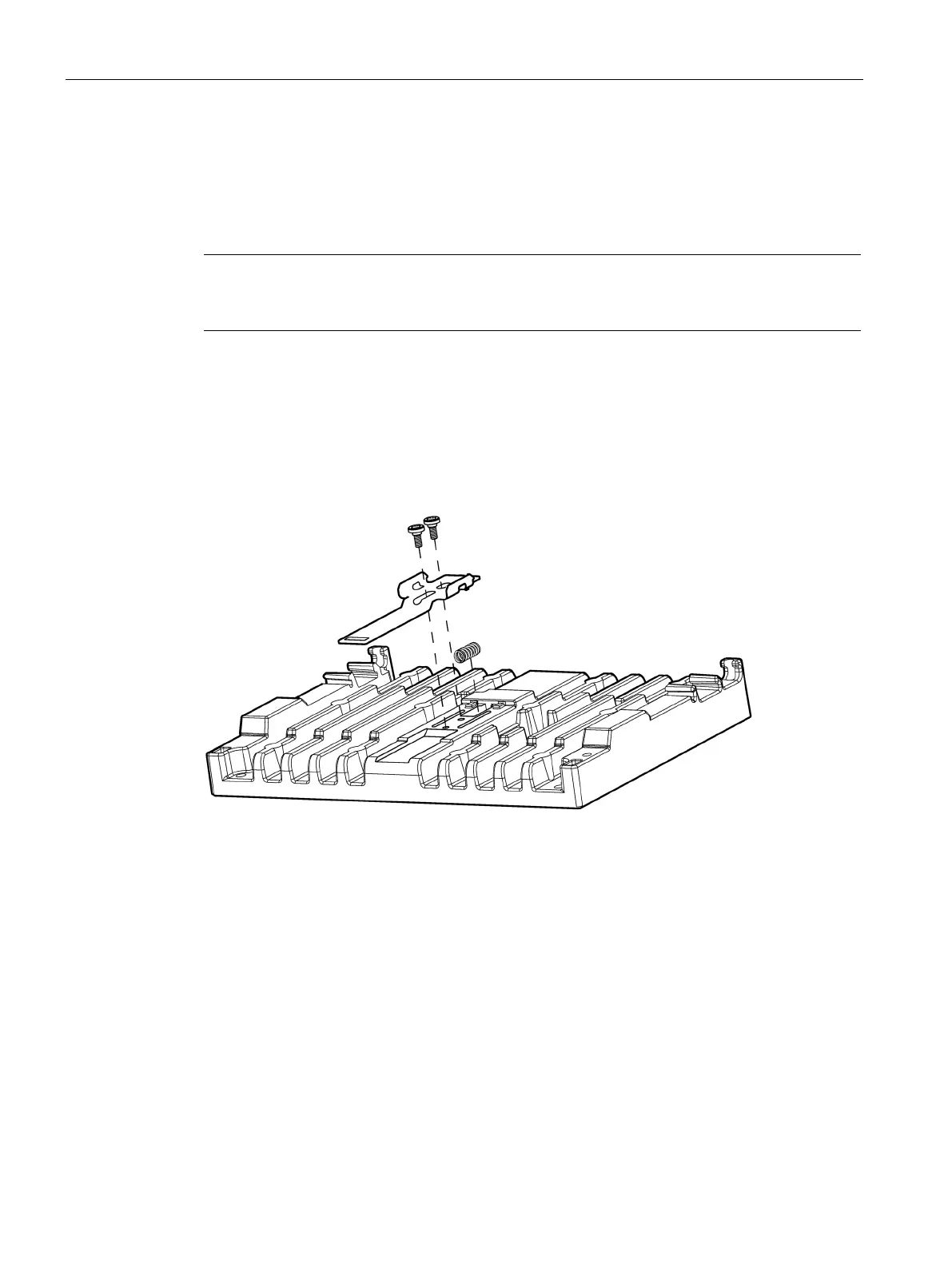

Figure 5-4 Fitting the DIN rail slider
