9.2 Controlling graphic objects
TP 270, OP 270, MP 270B (WinCC flexible)
9-28 Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0
Operating elements

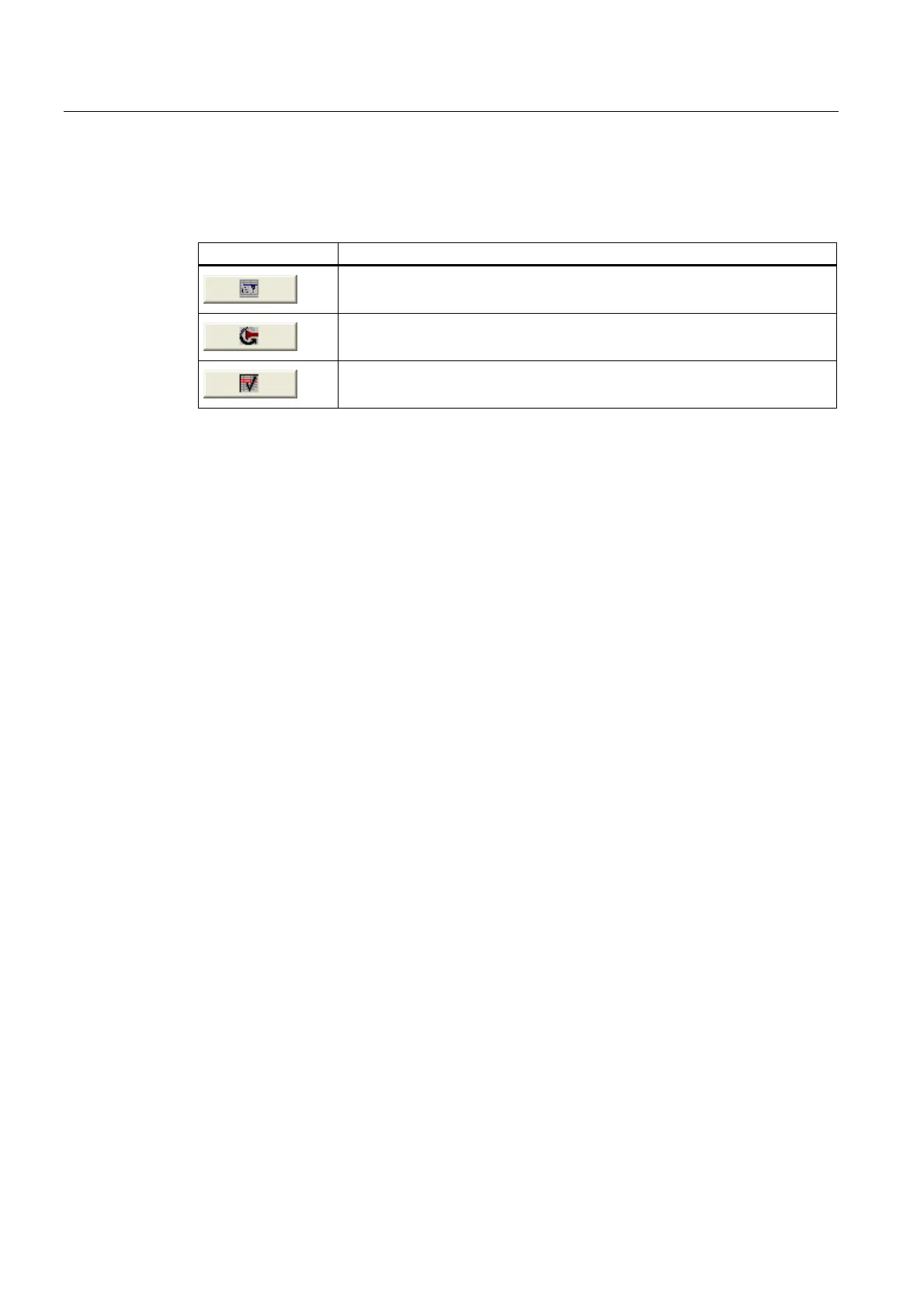

The buttons have the following functions:
Button Function
Use this button to call the configured operator note for the selected alarm.
This button triggers the function assigned to the "Edit" event for the selected
alarm.
This button is used to acknowledge an unacknowledged alarm.
9.2.7.2 Touch control
Procedure
Touch the desired operating element in the alarm view on the touch screen of the HMI
device.
Changing column sequence and sorting sequence
In Runtime you can configure the column order and the sorting order of each column.
• Change column sequence
For example, to reverse the "Time" and "Date" columns, touch the "Date" header on the
HMI device touchscreen. Continue to press the touchscreen and drag the column
heading to the "Time" heading.
• Change sorting order
To change the chronological order of the alarms, touch the "Time" or "Date" column
headings on the HMI device's touchscreen.
