Technical data

12.1 Dimension drawings

TP 270, OP 270, MP 270B (WinCC flexible)

12-2 Operating Instructions, Edition 03/2004, 6AV6691-1DD01-0AB0

12.1.2 MP 270B 6" Touch, TP 270 6" dimensions

Unit dimensions

HMI device dimensions, MP 270B 6" Touch and TP 270 6":

The two devices only differ on the front by their

e-establ ("SIMATIC MULTI PANEL" on the

MP 270B 6" Touch, "SIMATIC PANEL" on the TP 270 6").

196

212

156

140

58 6.2

Side view

Front view

Plan view

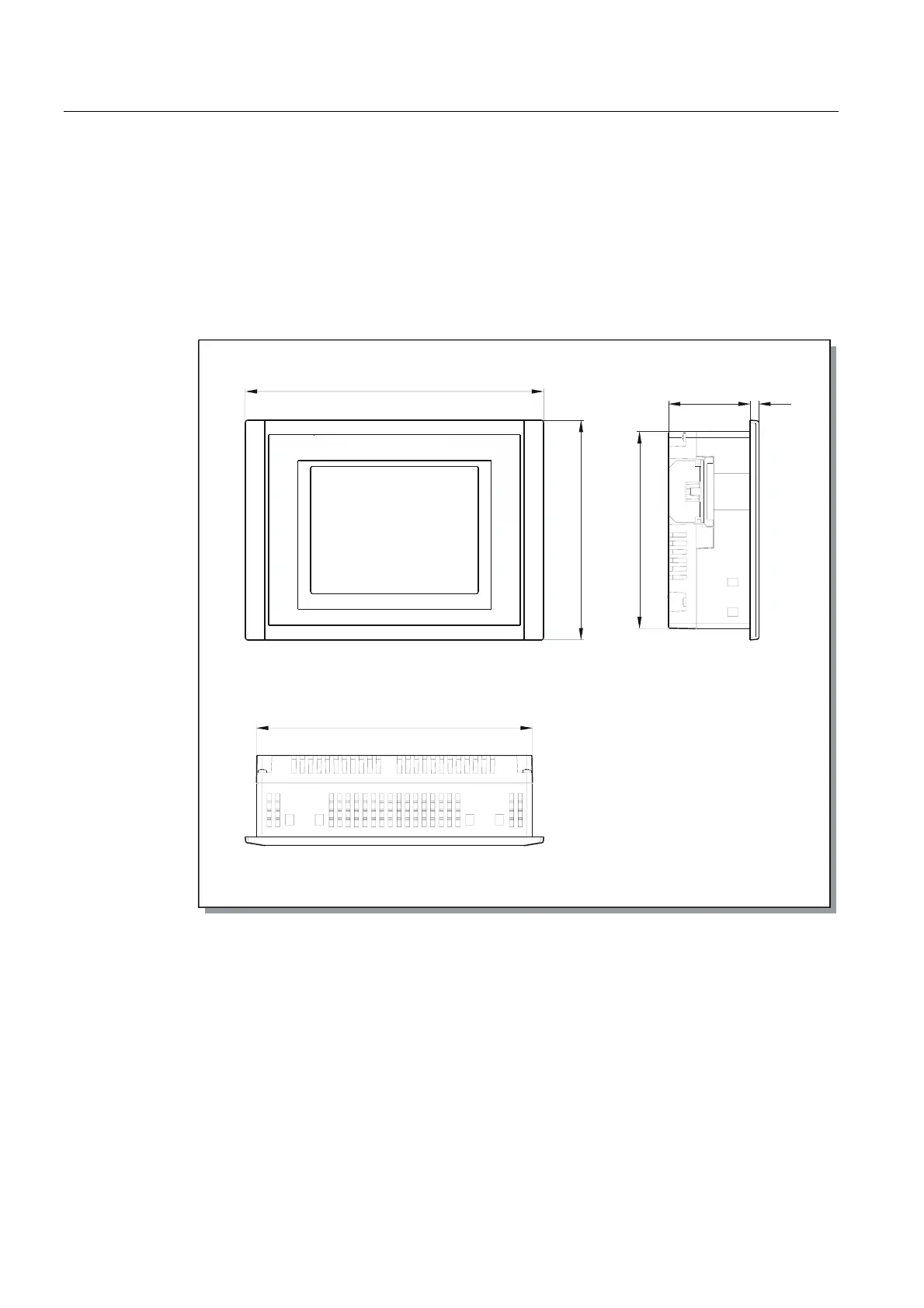

Figure 12-2 MP 270B 6" Touch and TP 270 6" dimensions:
