Description
2.1 Description of the readers
SIMATIC RF1000
8 Operating Instructions, 11/2019, C79000-G8976-C432-06
Interface-specific programming
On the Siemens support page "Industry Online Support
(https://support.industry.siemens.com/cs/ww/en/view/109741590)" you will find functions for
accessing the readers in form of DLL files as well as a demo application. With operation via
the USB interface on a PC (Windows), you can implement user identification for access to
your own applications quickly and simply with the help of the DLL file. To do this, the reader
reads out the serial numbers of MIFARE, ISO 15693 and LEGIC transponders.
If the SIMATIC RF1040R/RF1070R readers are operated via the RS232 interface,
communication takes place over the freeport protocol.
Application example

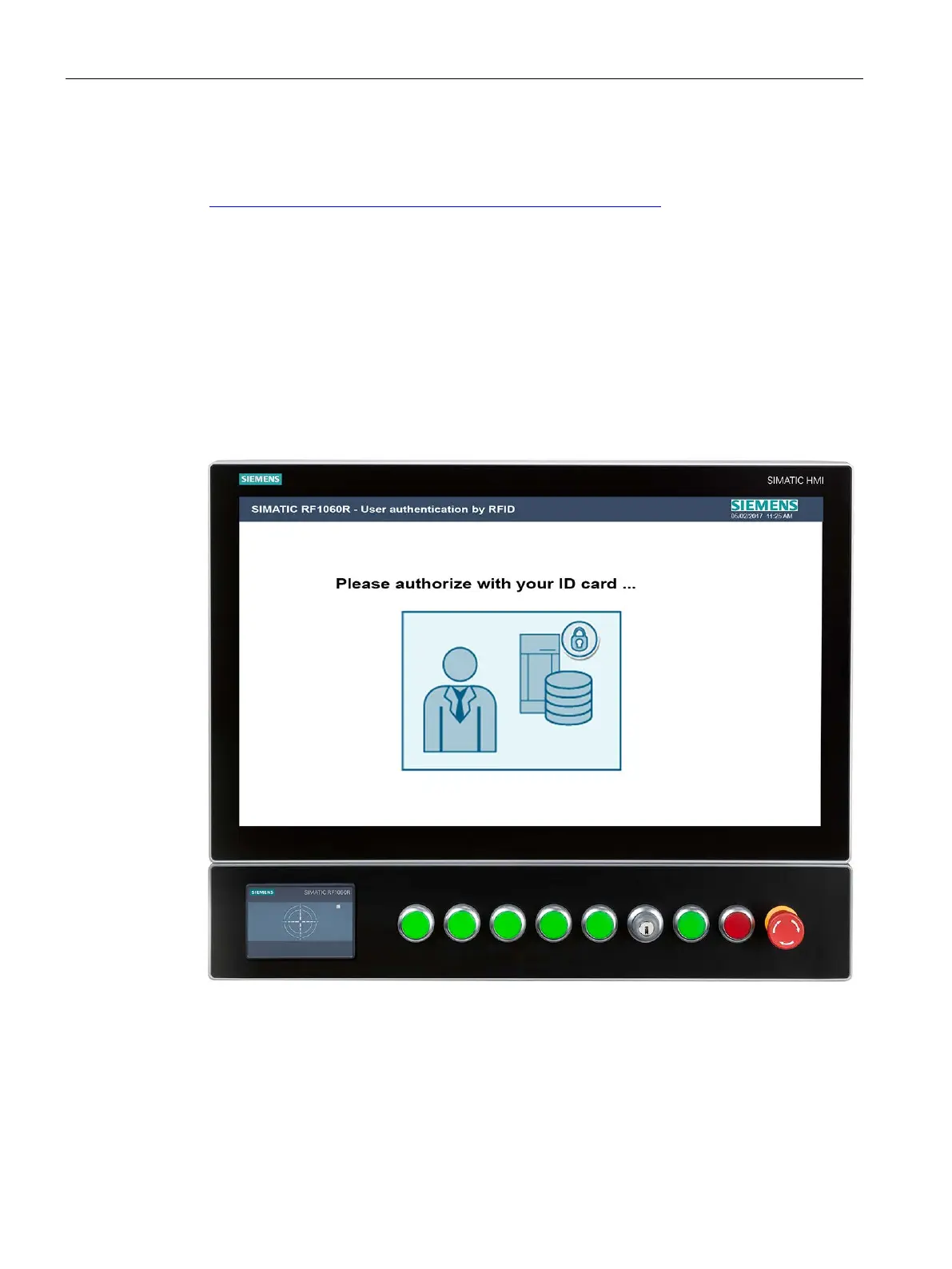

The following picture shows an example of an application of the SIMATIC RF1060R in
conjunction with a SIMATIC HMI.
Figure 2-2 Example of an application of a SIMATIC RF1060R in conjunction with a SIMATIC HMI
(e.g. 6AV7250-ODC03-0AH0) with extension unit (e.g. 6AV7674-1LA61-0AA0)
