Parameters/address space
5.2 Address space of the digital on-board I/O
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
106 Manual, 09/2016, A5E35306440-AB

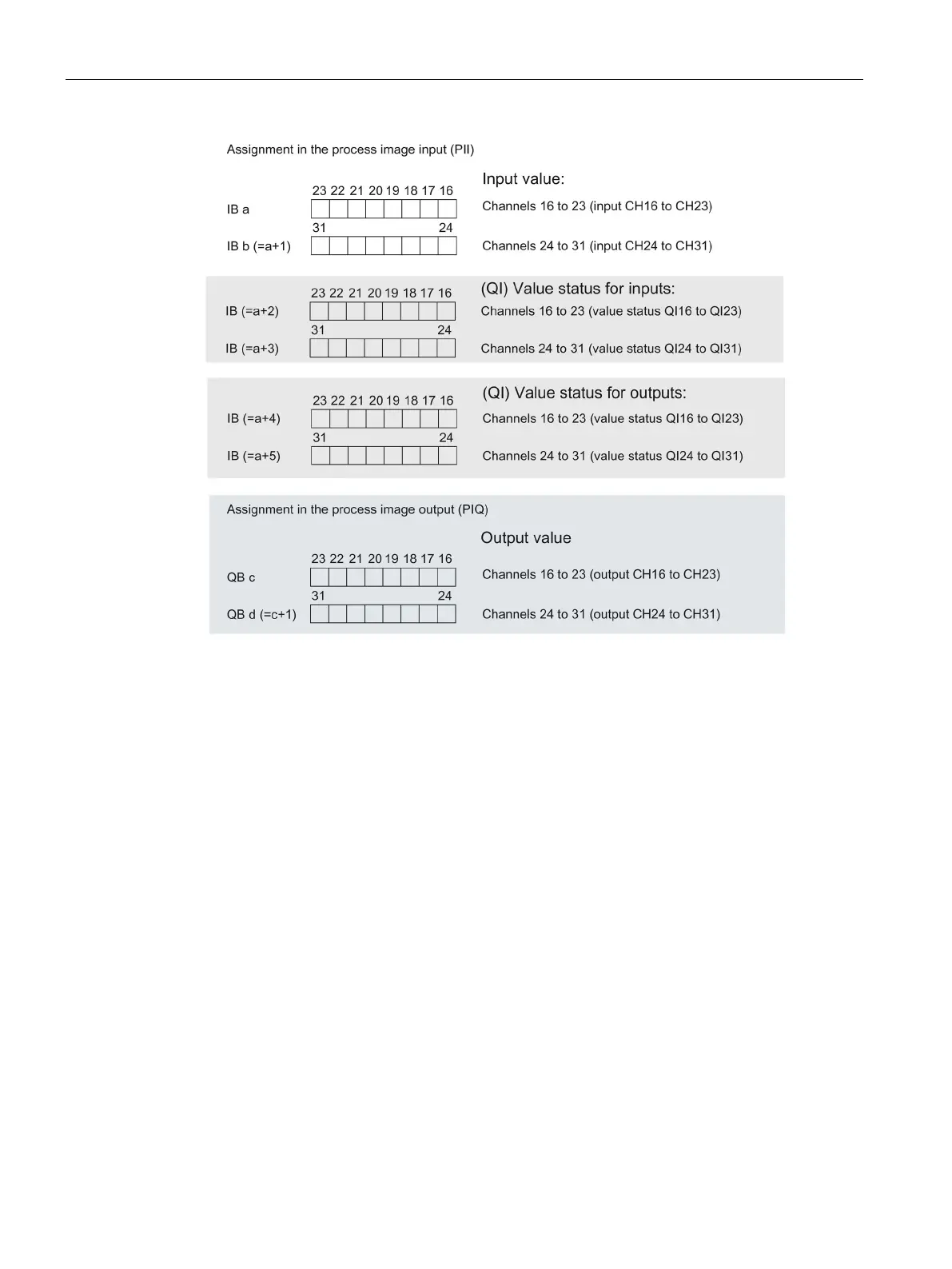

Figure 5-3 Address space of the submodule X12 of the 2 x 32-channel digital on-board I/O (16
digital inputs/16 digital outputs) with value status
