CPU 1515R-2 PN (6ES7515-2RM00-0AB0)
43 Equipment Manual, 11/2019, A5E42009914-AB
A.1 Dimension drawing
This section contains the dimensional drawing of the module on the mounting rail, as well as
a dimensional drawing with the front panel open. Keep to the dimensions when installing in
cabinets, control rooms, etc.
Dimension drawings of the CPU 1515R-2 PN

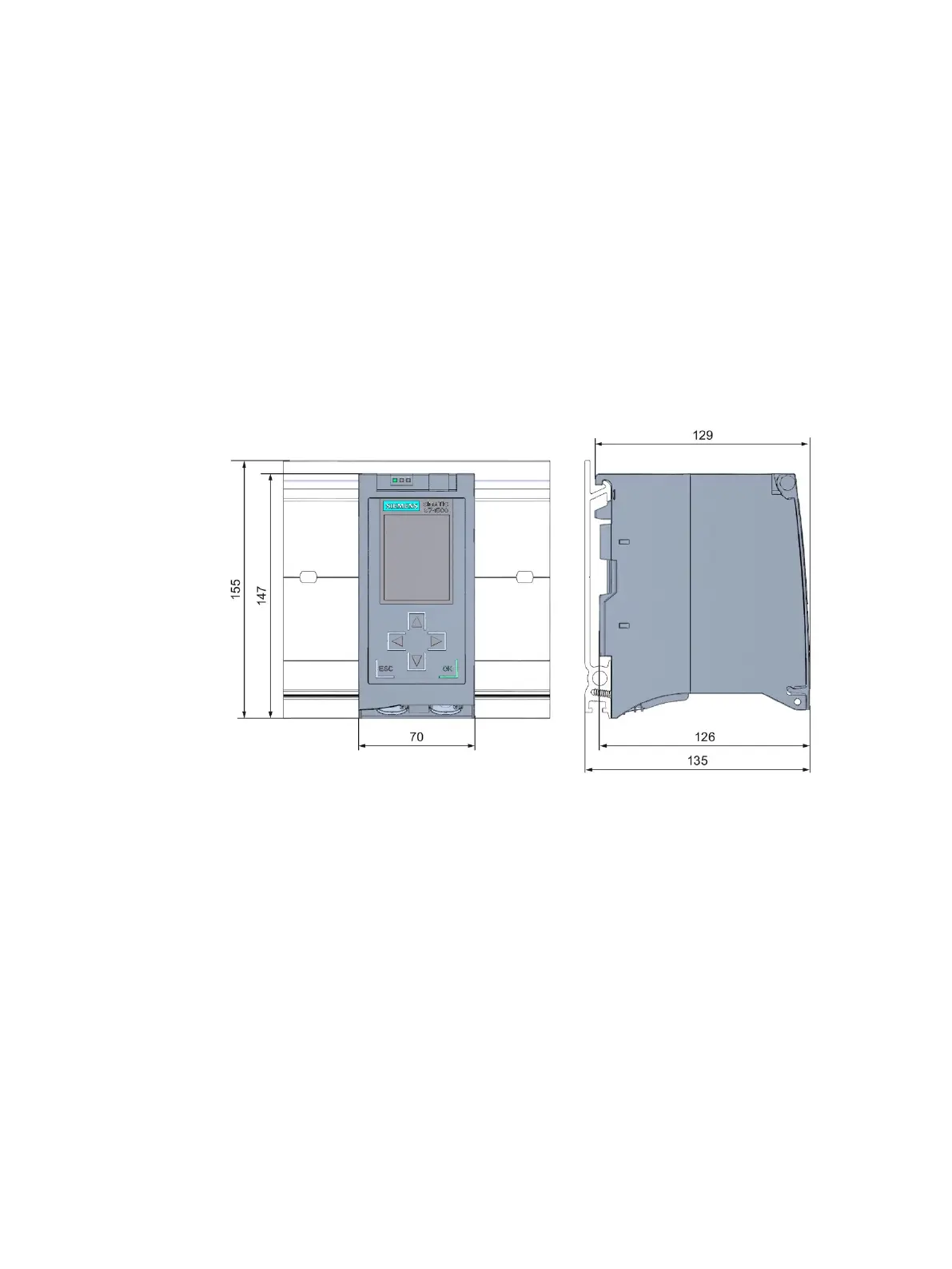

Figure A-1 Dimension drawing of the CPU 1515R-2 PN, front and side view
