4.
Pull of the front enclosure (1b).

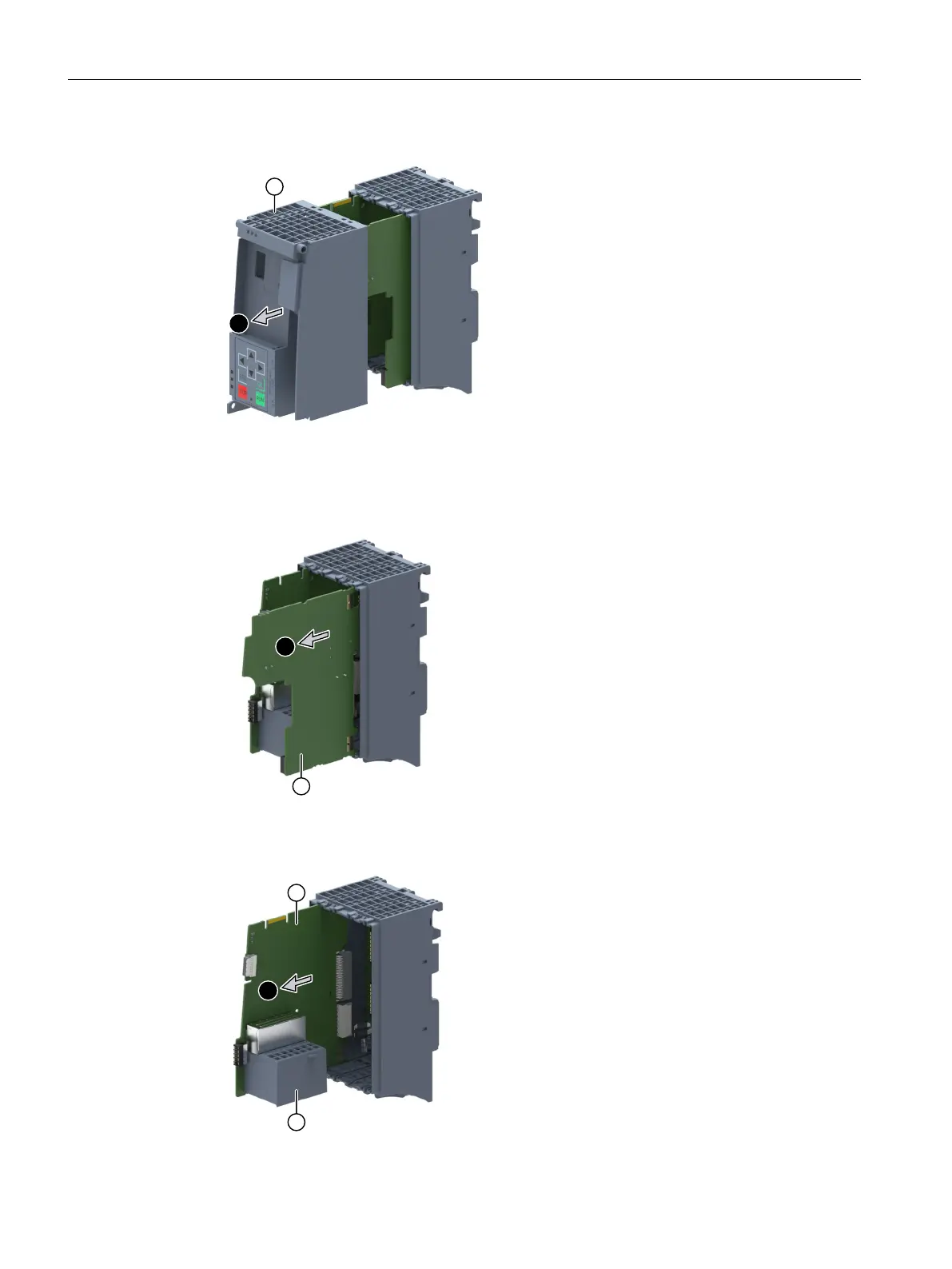

Disassembling printed boards
1.
Remove the assembled PCB (2a) by pulling it out of the rear enclosure (1a).
2.
Remove the assembled PCB (2b) by pulling it out. Separate the spacer frame (1c) from the
assembled PCB (2b) by prying open the snap lock with a flat-tip screwdriver and pulling
the frame downwards.
10
Recycler Guide for S7-1500 CPUs (6ES7515-2.N03-0AB0, 6ES7516-3.P03-0AB0, 6ES7511-1.L03-0AB0, and
6ES7513-1.M03-0AB0)
Product Information, 03/2024, A5E53705324-AA
