D
C
3.

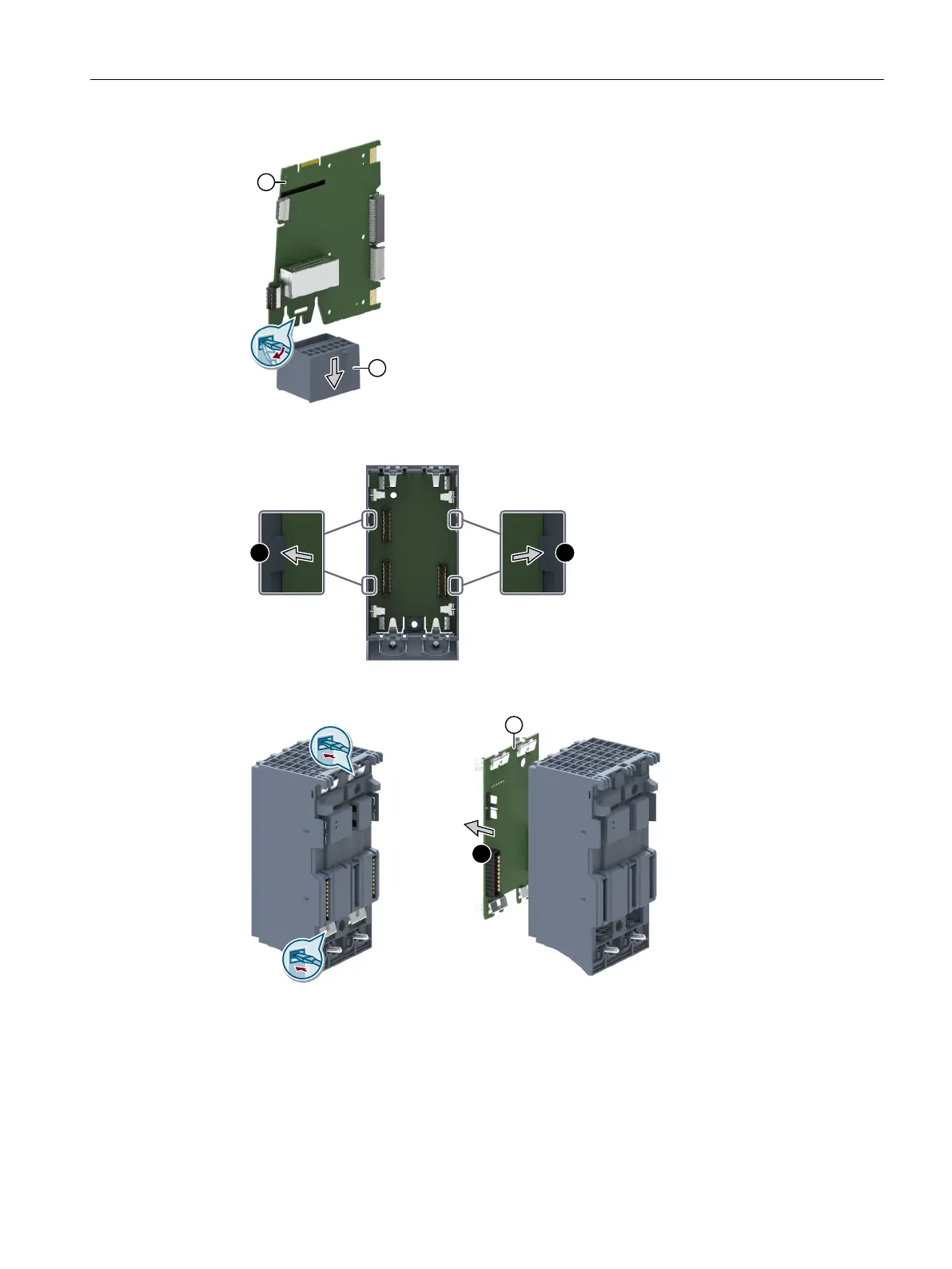

Use a flat-tip screwdriver to detach the assembled PCB (2c) by pressing the snap locks on
the inside of the rear housing (1a).
4.
Remove the assembled PCB (2c) by pressing with a flat-tip screwdriver to the inside of
the enclosure (1a).
D
11
Disassembly instructions
Recycler Guide for S7-1500 CPUs (6ES7515-2.N03-0AB0, 6ES7516-3.P03-0AB0, 6ES7511-1.L03-0AB0, and
6ES7513-1.M03-0AB0)
Product Information, 03/2024, A5E53705324-AA
