30

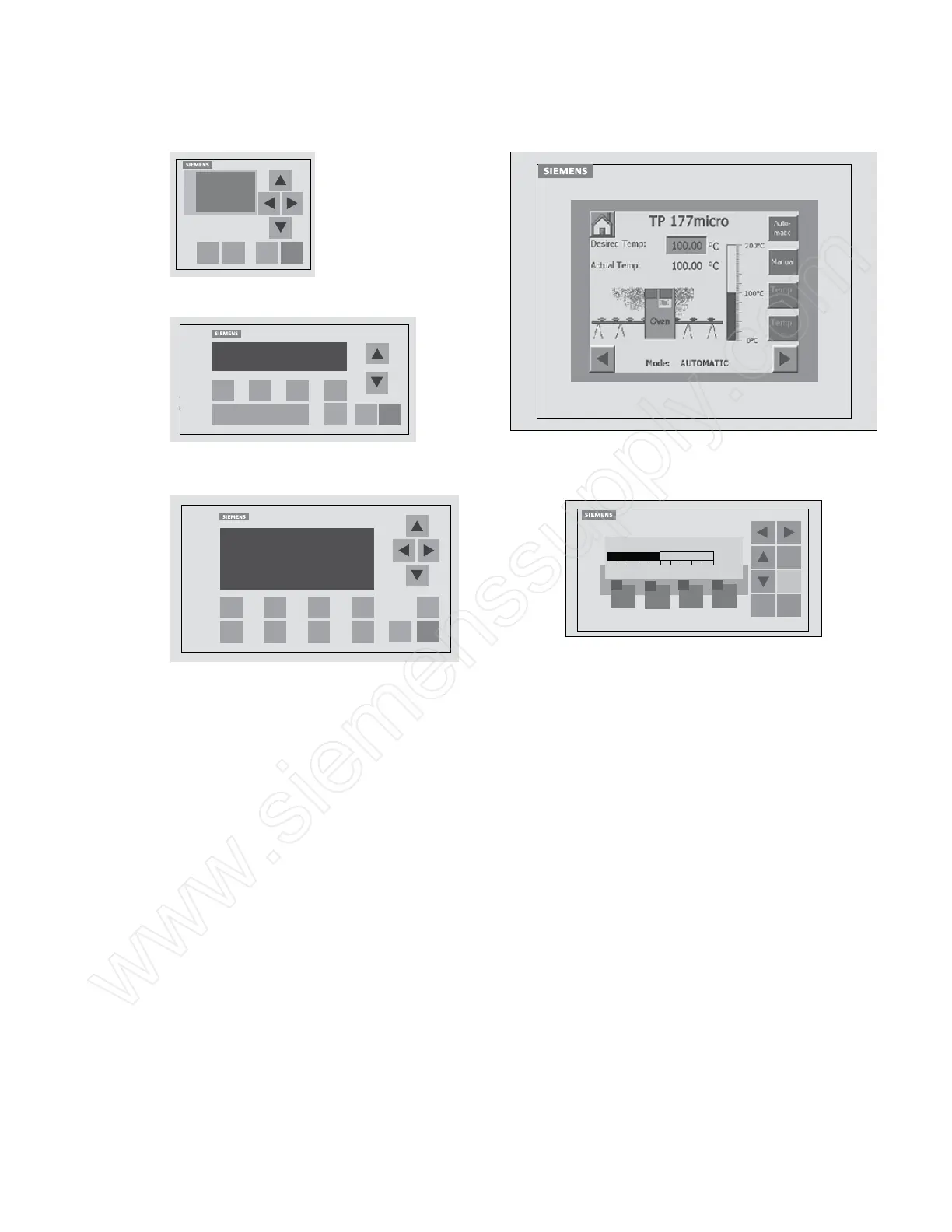

SIMATIC Micro Panels Siemens offers a variety of SIMATIC Micro Panels designed for
use with S7-200 PLCs. These panels provide easy to implement
solutions for a variety of display needs.
OP 73micro
TD 200 and TD 200C
F5
F1
F6
F2
F7
F3
F8
F4
SHIFT
ESC
ENTER
TD200
TD 100C
F1
F2
ESC
ENTER
TD 100C
TD 400C
F9
F1
F10
F2
F11
F3
F12
F4
SHIFT
ESC
ENTER
TD400C
F13
F5
F14
F6
F15
F7
F16
F8
F1
F2
F3
F4
0
50 100
Tank 3
Value 49Simatic OP 73micro
DEL INS
TAB HELP
+/-
SHIFT
ENTER
ACK
ESC
TP 177micro
SIMATIC PANEL
TOUCH
Text display TD 100C provides a 4-line display with up to 16
characters per line.
Text displays
TD 200 and TD 200C provide a back-lit, high-
contrast liquid crystal 2-line display for up to 80 text messages
with integrated variables. TD 200 provides 8 user-configurable
function keys in a fixed arrangement. TD 200C provides up to 20
user-configurable keys in a user-defined layout.
Text Display
TD 400C provides a back-lit, high-contrast liquid
crystal 4-line display for up to 80 text messages with integrated
variables.
Graphics operator panel
OP 73micro provides a full graphics 3-
inch display for bitmaps, bars, and text with different font sizes.
Touch Panel
TP 177micro provides a 6-inch touch screen for
vector graphics. The graphics on the screen can be set up for
viewing with the panel mounted horizontally or vertically.
