Configuring the Distributed I/O
11-4
STEP 7 Getting Started
A5E00171228-01

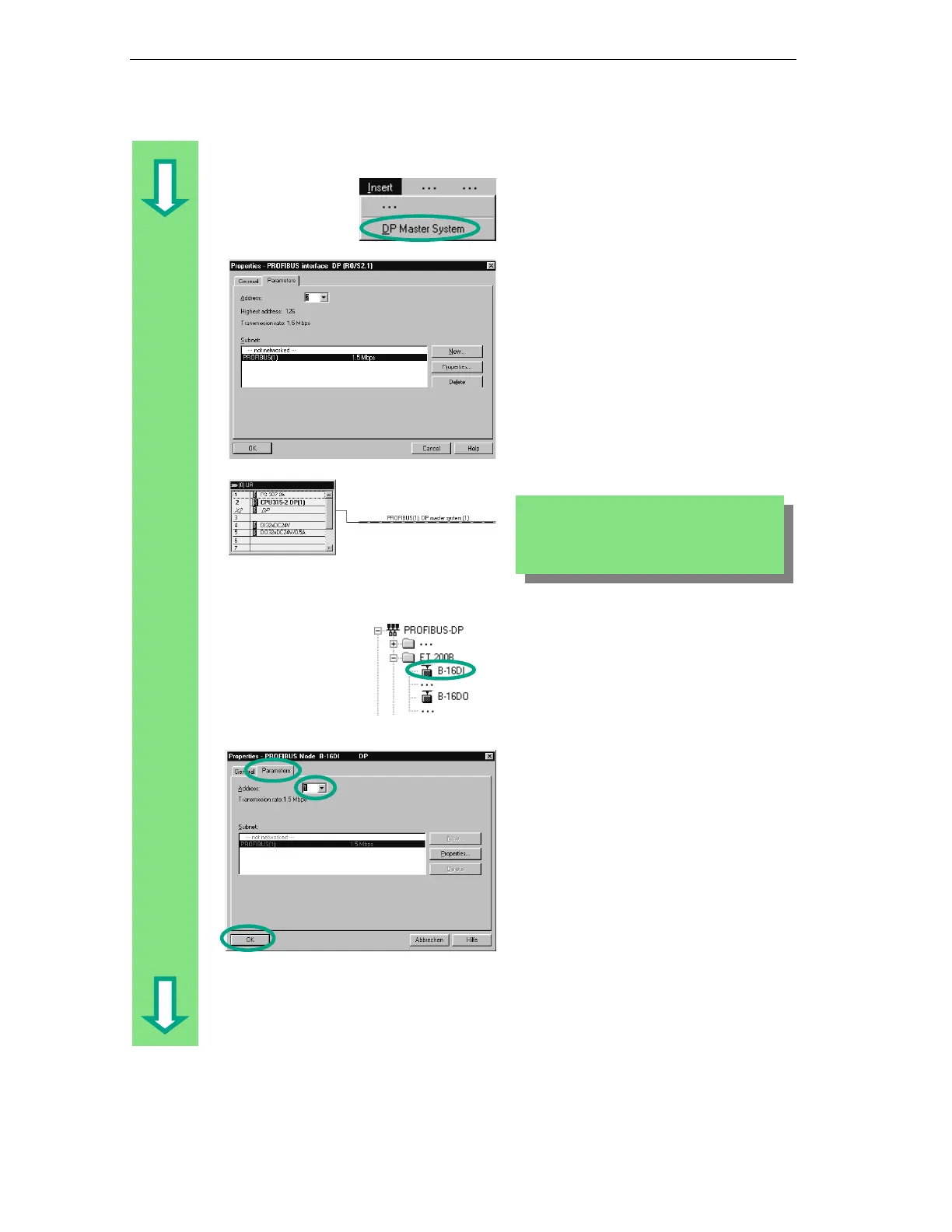

Configuring the DP-Master System
Select the DP master in slot 2.1 and
insert a DP-master system.
Apply the suggested address "1" in the
dialog box displayed. Select
"PROFIBUS(1)" in the "Subnet" field
and then apply your settings with OK.
Navigate in the Hardware catalog until
you reach the module B-16DI and
insert this module in the master system
(drag the object to the master system
until the cursor changes to a "+" sign;
then drop the object).
You can change the node address of
the module you have inserted in the
"Parameters" tab of the "Properties"
dialog box.
Confirm the suggested address 1 with
OK.
You can now move any objects which you
place in the master system by dragging
them with the left mouse button held down.
