Parameters/address space
4.3 Address space
I/O device digital inputs DI 16x24VDC M12-L 8xM12 (6ES7141-6BH00-0BB0)
Equipment Manual, 06/2021, A5E46570510-AB
19
4.3 Address space
The DI 16x24VDC M12-L 8xM12 I/O device can be configured differently; see following table.
Depending on the configuration, additional/different addresses are assigned in the process
image input.
Configuration options of the DI 16x24VDC M12-L 8xM12 I/O device
You can configure the I/O device with STEP 7 (TIA Portal) or with a GSD file.
When you configure the I/O device by means of the GSD file, the configurations are available
under different short designations/device names in the device view of your configuration
software.
The following configurations are possible:
Table 4- 2 Configuration options
Configuration Short designation/
device name in the
GSD file (device view
in the configuration
software)
Configuration software, e.g., with STEP 7 (TIA Portal)
Integrated in hardware
catalog STEP 7
(TIA Portal)
GSD file in
STEP 7 (TIA Portal) V11 or
higher or STEP 7 V5.5 SP4
HF1 or higher
1 x 16-channel DI 16x24VDC
DI 16x24VDC
V16 or higher with HSP
0299
X
1 x 16-channel DI 16x24VDC QI
DI 16x24VDC QI
V16 or higher with HSP
0299
X
1 x 16-channel DI 16x24VDC MSI
DI 16x24VDC MSI
V16 or higher with HSP
0299
X
Address space for configuration as 1 x 16-channel DI 16x24VDC
The following figure shows the address space allocation for the configuration as 16-channel
I/O device digital inputs without value status.

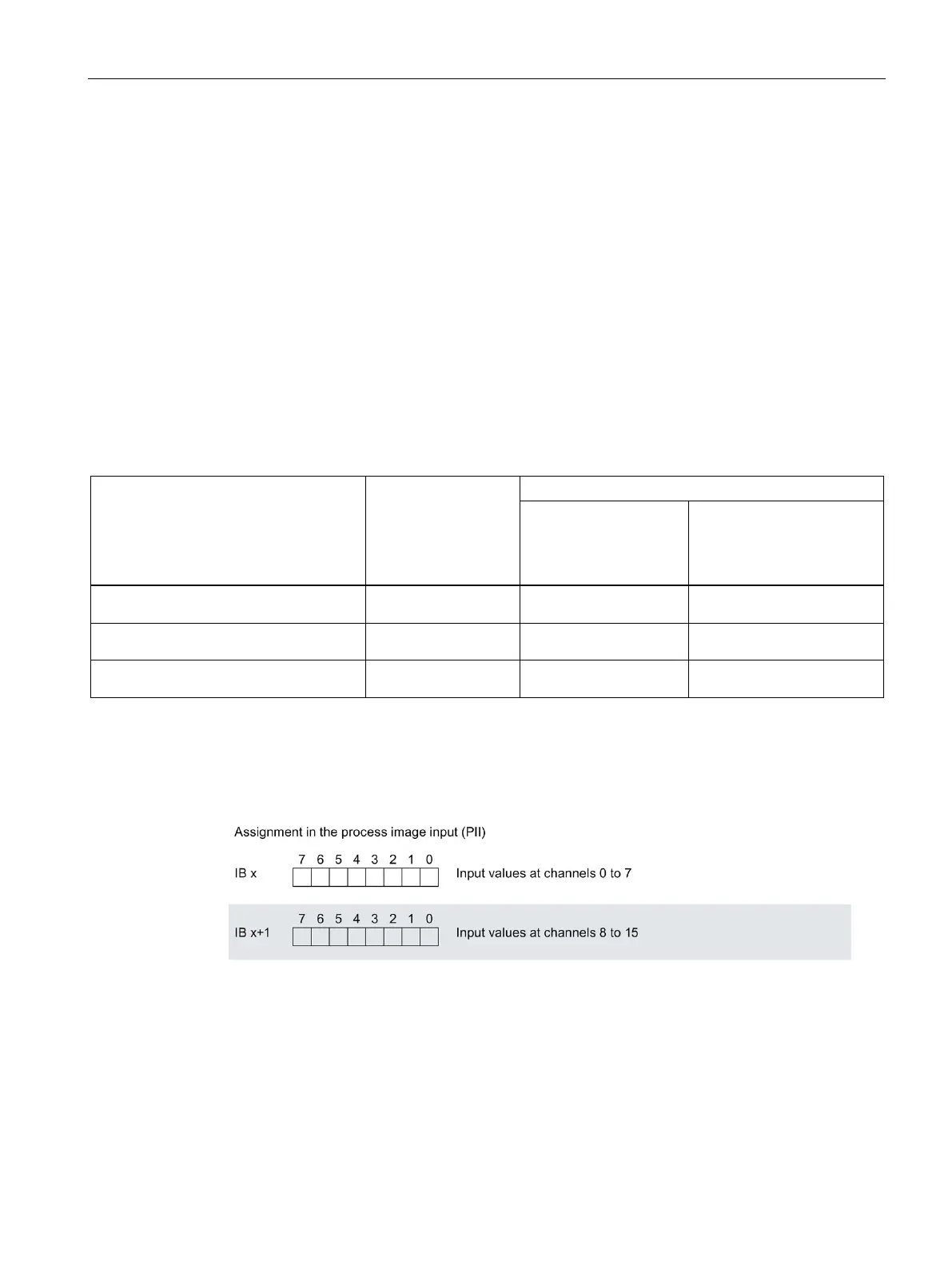

Figure 4-1 Address space for configuration as 1 x 16-channel DI 16x24VDC without value status
