Siemens SIMOTICS S-1FK7 G2 User Manual

Description
2.6 How do you replace the defective encoder?
Replacing an encoder for SIMOTICS S-1FK7 G2, S-1FG1 and S-1FT7
Service Manual, 01/2018, A5E34676237B AC
35

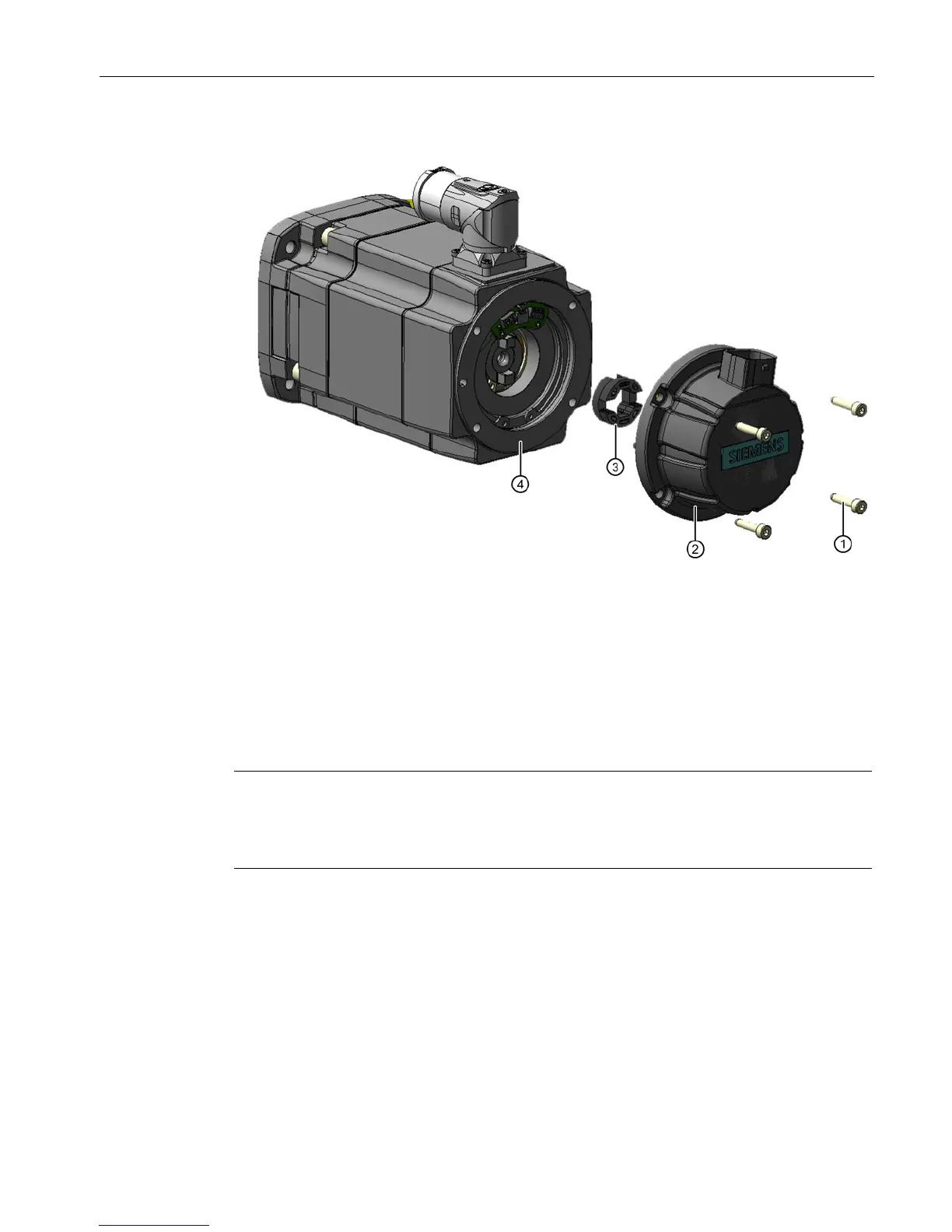

5. Release the 4 fastening screws ① of the encoder ②.
1
Fastening screws (4 screws)
2
Encoder
3
Coupling element
4
Motor
6. Remove the encoder.
7. Withdraw the coupling element
③.
You have removed the encoder.
❒
Note
Coupling element
When replacing the encoder, the new coupling element enclosed with it must be installed at
the same time.
