2.6 How do you replace the defective encoder?
Replacing an encoder for SIMOTICS S-1FK7 G2, S-1FG1 and S-1FT7
36 Service Manual, 01/2018, A5E34676237B AC

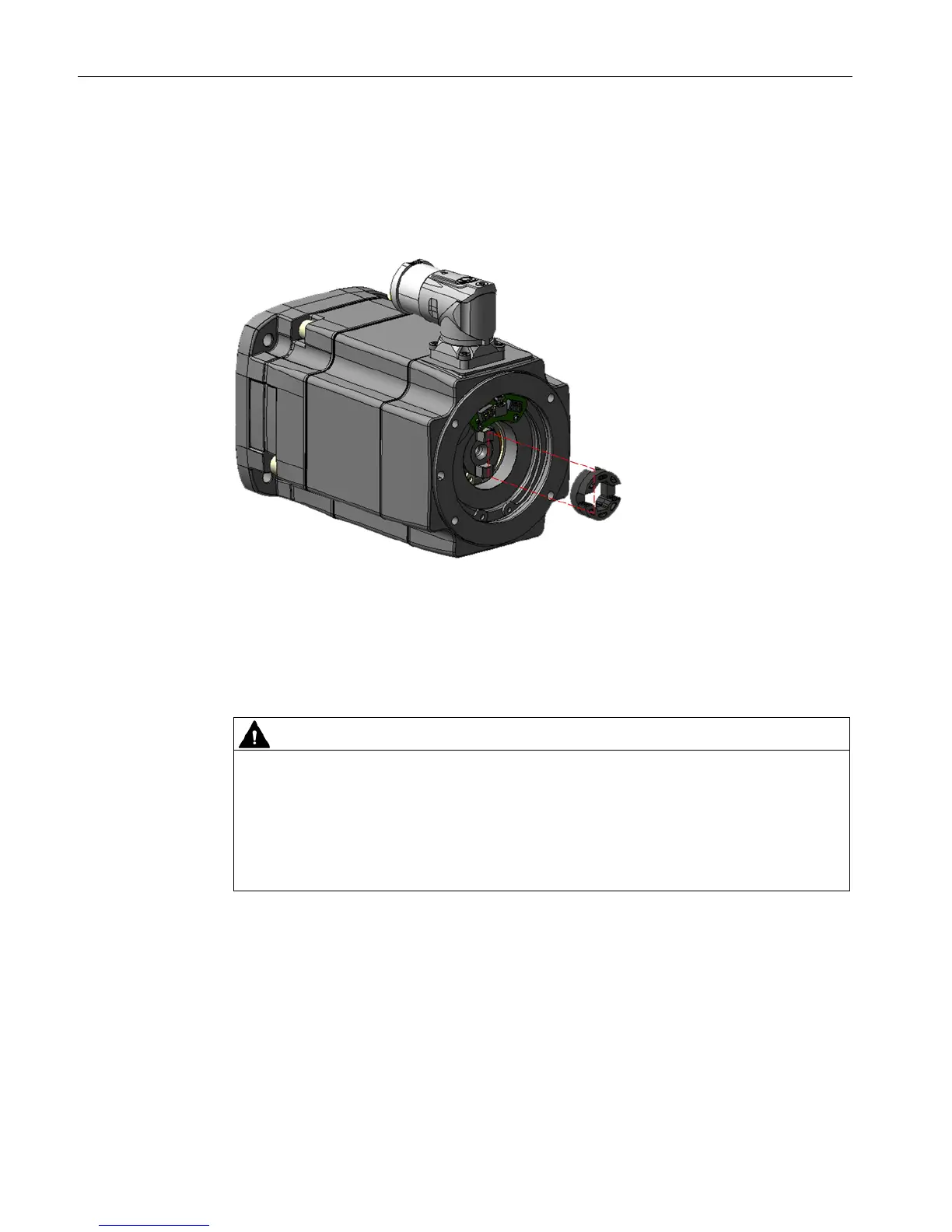

Mounting is realized in the inverse sequence to removal:
1. Align the coupling element ③ to the cams on the motor shaft.
2. Insert the coupling element onto the motor shaft.
3. Align the encoder shaft to the coupling element on the motor shaft.
4. Place the encoder
② on the motor shaft in this position.
5. Fasten the encoder using 4 screws
① (tightening torque: 2.5 to 3 Nm).
6. Connect the encoder cable.
Danger of death if the encoder is not properly installed or the safety devices do not work
Incorrect encoder mounting, other parts and safety equipment and devices that are not
operational can result in death or injury.
• Make sure all parts of the machine are correctly installed and connected.
• Carefully check that all of the safety equipment and devices are switched on again
and are ready for operation.
7. Switch on the system.
You have mounted the encoder.
❒
