Description
2.9 Where can you find the electronic type plate in the Internet?
Replacing an encoder for SIMOTICS S-1FK7 G2, S-1FG1 and S-1FT7
50 Service Manual, 01/2018, A5E34676237B AC

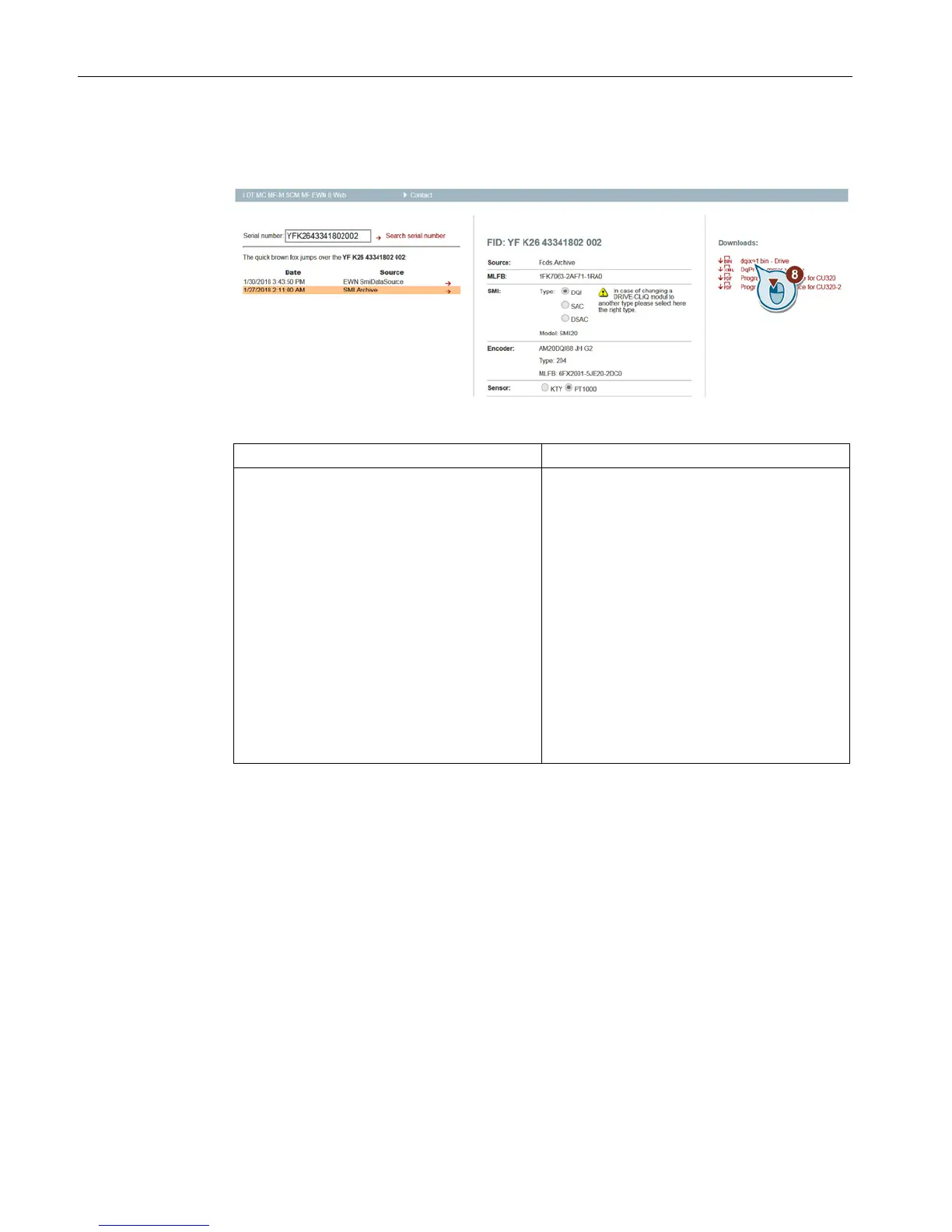

8. Save the ".bin" file displayed under "Downloads" to a data storage medium.
Click on the appropriate file.
Select the correct path.
For SINAMICS
For SINUMERIK
Depending on the system configuration used,
there are 2 different paths:
• For standalone devices (e.g. CU250, CU
305, CU310, CU320 and D410) as well as
for integrated platforms D4xx, NCU7xx):
/USER/SINAMICS/DATA/SMI_DATA/Cxxx(x
xx= component number of the encoder, e.g.
"006")
• For expansion modules (e.g. CX32,
NX10, NX15):
/USER/SINAMICS/DATA/❑❑/SMI_DATA/Cx
xx(❑❑ = Profibus address of the internal
Profibus or connection socket on the CU,
xxx = component number of the encoder
module, e.g. "006")
Depending on the system configuration used,
there are 2 different paths:
• For sensor modules connected to the NCU:
/USER/SINAMICS/DATA/SMI_DATA/Cxxx
(xxx = component number of the encoder,
e.g. "012")
• For sensor modules connected to an ex-
pansion module (e.g. NX10, NX15):
/USER/SINAMICS/DATA/❑❑/SMI_DATA/Cx
xx
(❑❑ = Profibus address of the internal Pro-
fibus (e.g. 15, 14,...), xxx = component
number of the encoder, e.g. "012".)
9. Copy the data of the electronic type plate from the data storage medium to the target
folder of the drive.
10.Check whether the new encoder was assigned the same component number as the
previous encoder.
(see Chapter "How do you program an encoder that has not been loaded with data?
(Page 38)")
You have transferred the motor and encoder data (data for the electronic type plate) to the
drive.
❒
