Commissioning (software)
4.14 Optimizing the drive and controller
SIMOTION D410
Commissioning Manual, 02/2012
147
3. For verification purposes, perform the measurement again.
4. With the modified parameters, the controller demonstrates a much better transient
response. If necessary, you can continue changing the value until the transient response
has reached its optimum level.

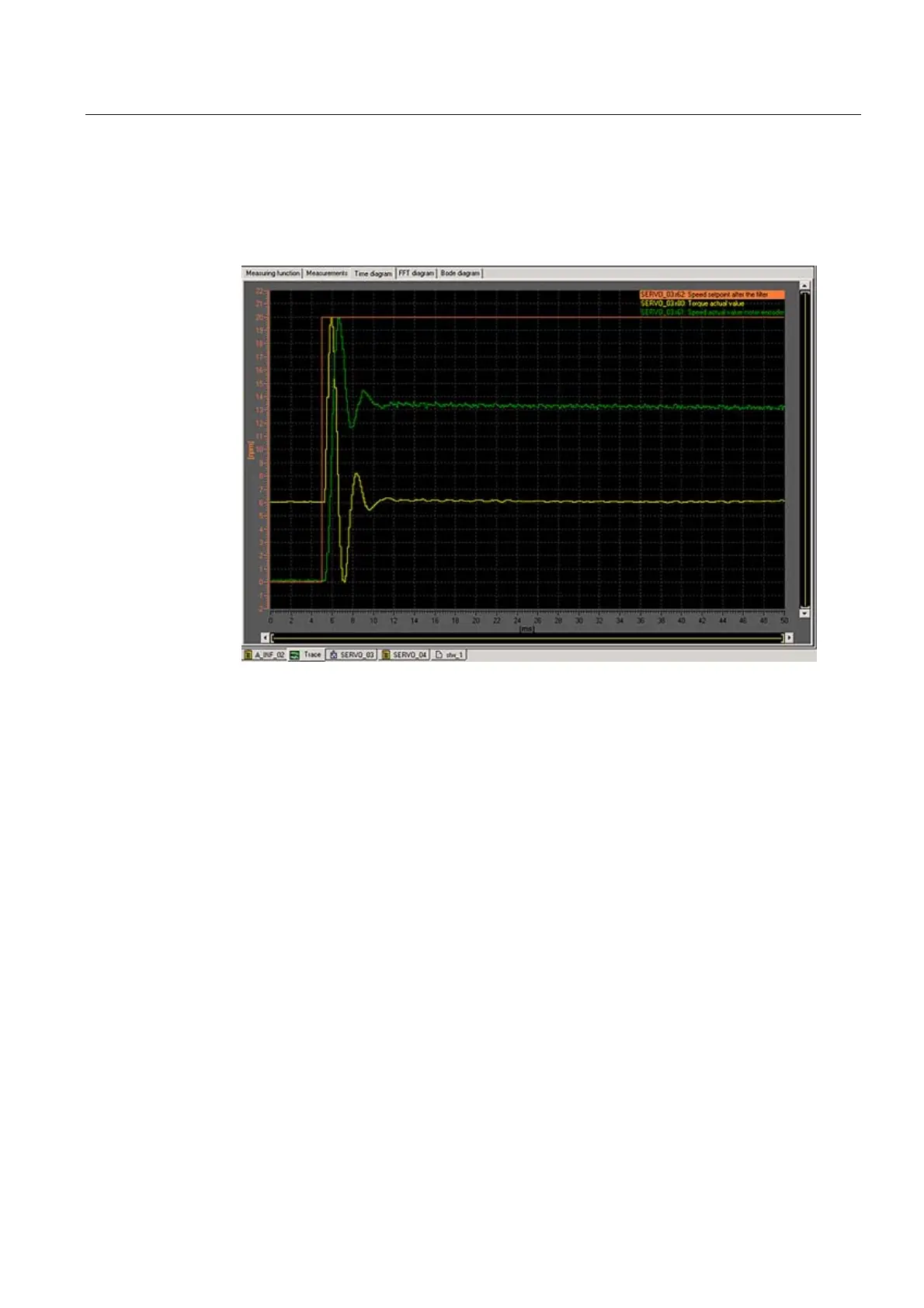

Figure 4-40 Measurement with modified P-gain
