Commissioning (hardware)
2.5 User memory concept
SIMOTION D410
36 Commissioning Manual, 02/2012
● These data is lost after the SIMOTION D410 is shut down.
● The "volatile SIMOTION data" area contains the following data:
– SIMOTION kernel
– Technology packages (TP)
– User data (programs, configuration data, parameters)
7DUJHW
GHYLFH
&RPPLVVLRQLQJ
520
5$0
&XUUHQW5$0
0LFUR0HPRU\&DUG
&RPSDFW)ODVK&DUG
0HPRU\&DUG
ZRUNLQJPHPRU\
1H[W
5$0WR
520
FRS\
&RS\DFWXDOGDWD
WR5$0
QRV\VWHP
YDULDEOHV
72UHVWDUW
RULPPHGLDWHO\
&RQILJGDWDLQ
581
6\VWHP
YDULDEOHV
'RZQORDG
8SORDG
ORDGPHPRU\

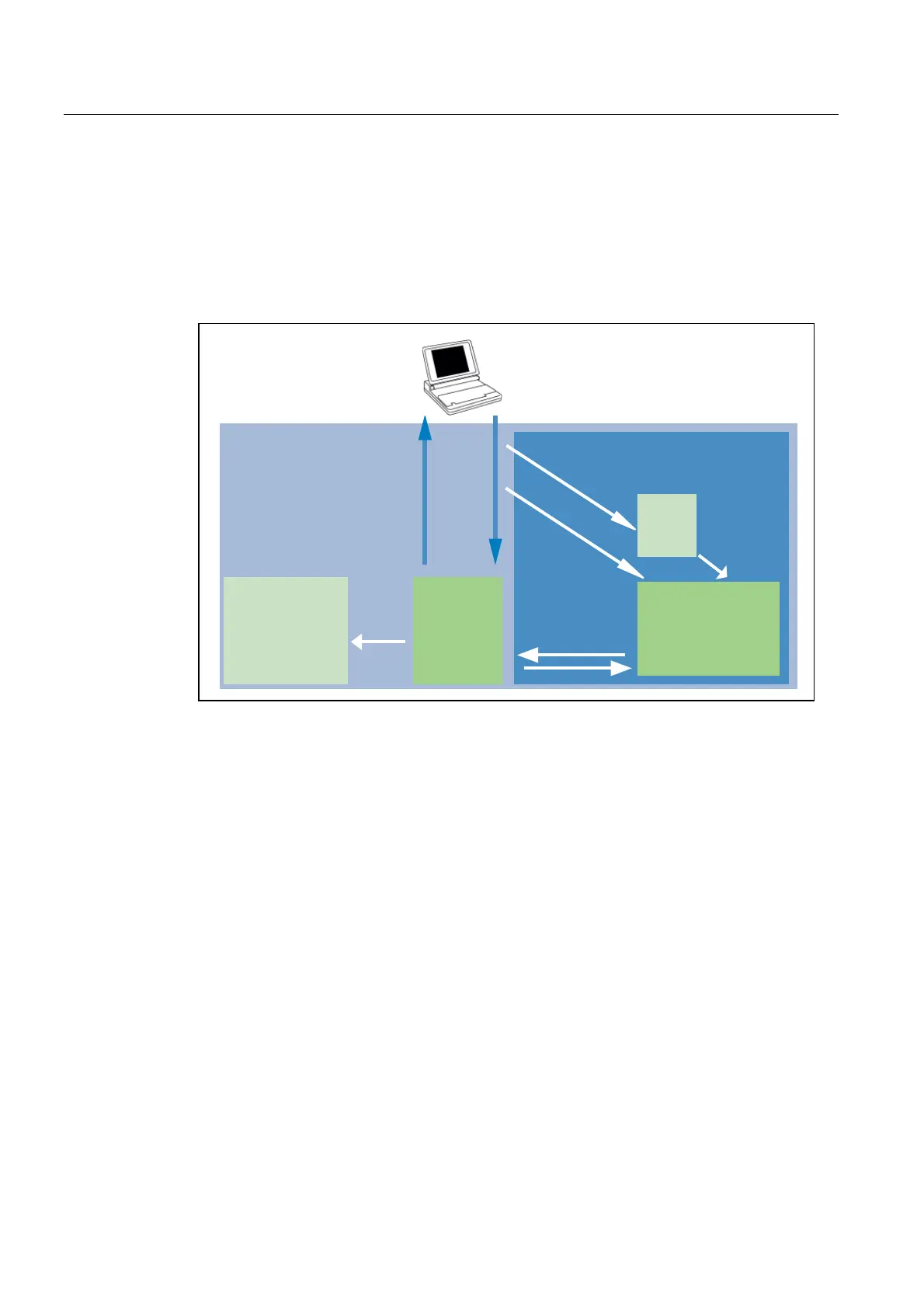

Figure 2-3 Configuration data and system variables on volatile memory
Further information about memory management for SIMOTION is available in the SIMOTION
SCOUT Basic Functions
Function Manual.
CompactFlash Card
The CompactFlash Card contains the following data:
● SIMOTION kernel
● Technology packages (TP)
● User data (units, configuration data, parameter assignments, task configuration)
● IP parameters (IP address, subnet mask, router address)
● DP parameters (PROFIBUS DP address, baud rate)
● additionally if necessary:
– User data saved with _savePersistentMemoryData and _export/_saveUnitDataSet
– Data from SIMOTION IT
– Archived SCOUT project.
