Commissioning (software)
6.2 Performing the configuration for the D4x5-2 offline
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 02/2012
167
6. The communication for the control of the infeed is configured in the following dialog box.
It is recommended that these settings be made automatically by the engineering system.
You can also make the settings manually for the process data exchange by selecting
"User-defined".

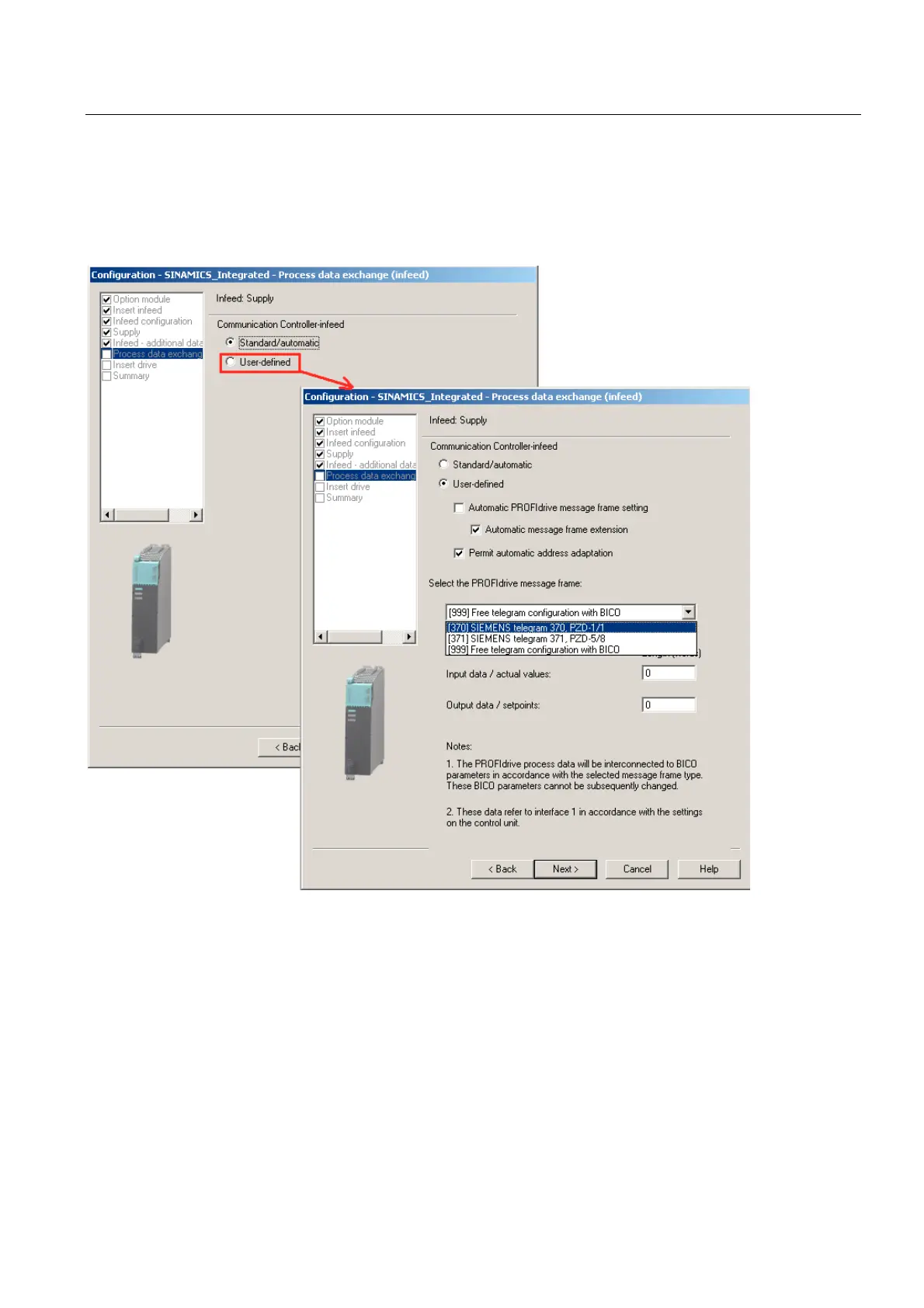

Figure 6-6 Configuring the process data exchange for the infeed
If the automatic communication setting has been selected, SIMOTION SCOUT uses
PROFIdrive message frame 370 per default. This message frame is also used by the
system function _LineModule_control to control the infeed.
You can find further information on control of the infeed in Section Activating the infeed
(line mo
dule) (Page 239).
If y
ou are using a CX32-2 controller extension, also refer to the information in Section
Interconnecting the infeed "Operation" si
gnal on the CX32-2 (Page 204).
