Commissioning (software)
6.6 Testing a drive with the drive control panel
SIMOTION D4x5-2
226 Commissioning and Hardware Installation Manual, 02/2012
6.6 Testing a drive with the drive control panel
Introduction
You can test a configured drive with the drive control panel, where you can specify a speed
and adjust it with a scaling factor. The drive control panel should only be used for
commissioning.
Requirements
● The project has been downloaded to the target system.
● SIMOTION SCOUT is in online mode.
● The drive is not being used by a current project in RUN mode.
WARNING
Make sure no one is endangered by the drive test.
Testing a drive with the drive control panel
1. Change to the configured drive in the Project Navigator and open the drive control panel
by selecting "Commissioning" > "Control panel". The drive control panel opens in the
detail view.

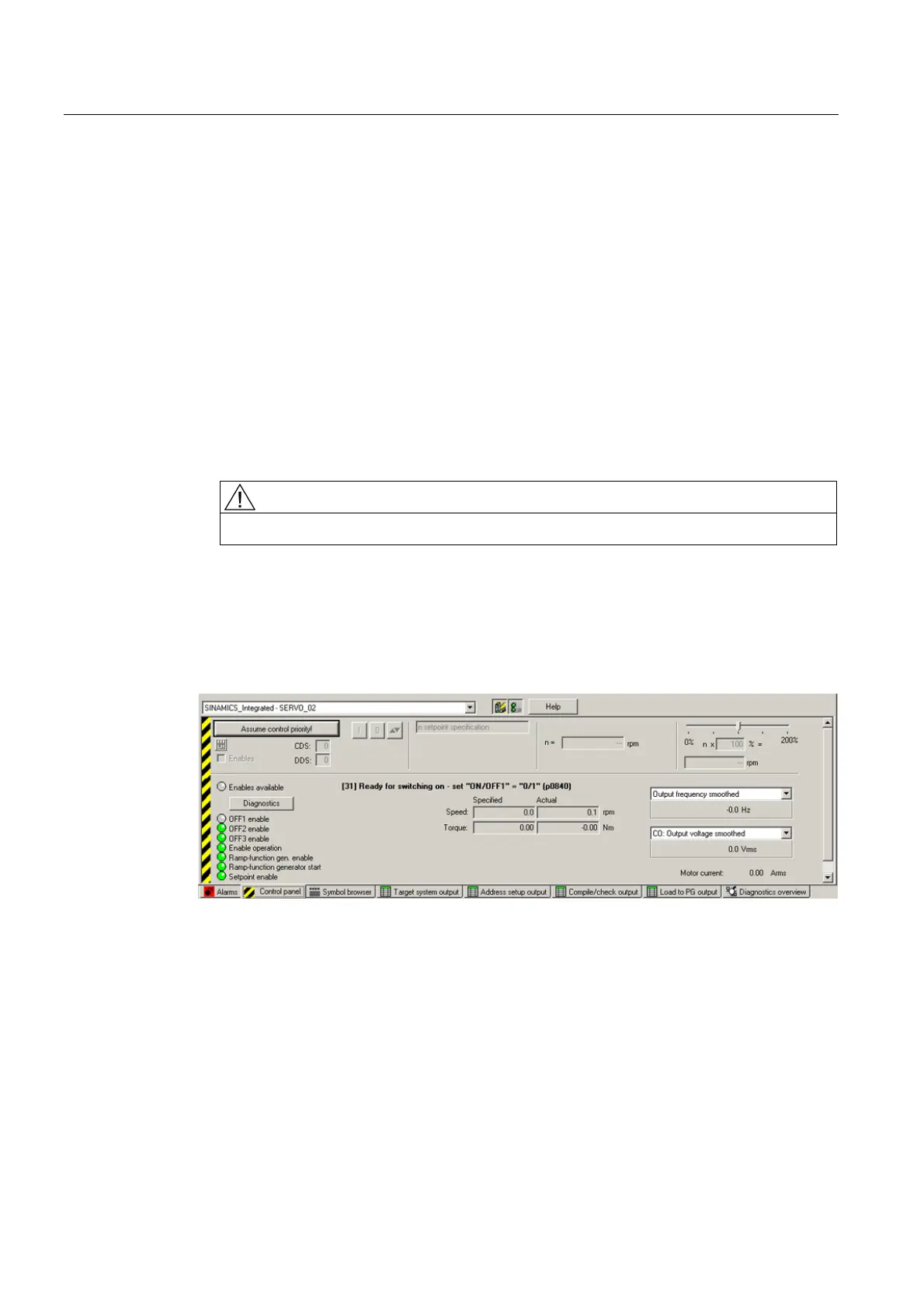

Figure 6-35 Drive control panel
2. To display the control area and axis diagnostics, click the "Show/hide control area" and
"Show/hide diagnostics area" buttons.
3. Click "Assume control priority". The "Assume Control Priority" dialog box is opened.
