Commissioning (software)

6.2 Performing the configuration for the D4x5-2 offline

SIMOTION D4x5-2

176 Commissioning and Hardware Installation Manual, 02/2012

14. If you are using a motor that is not equipped with a DRIVE-CLiQ interface, select the

encoder order number in the "Encoder Selection via Motor Order Number" dialog box.

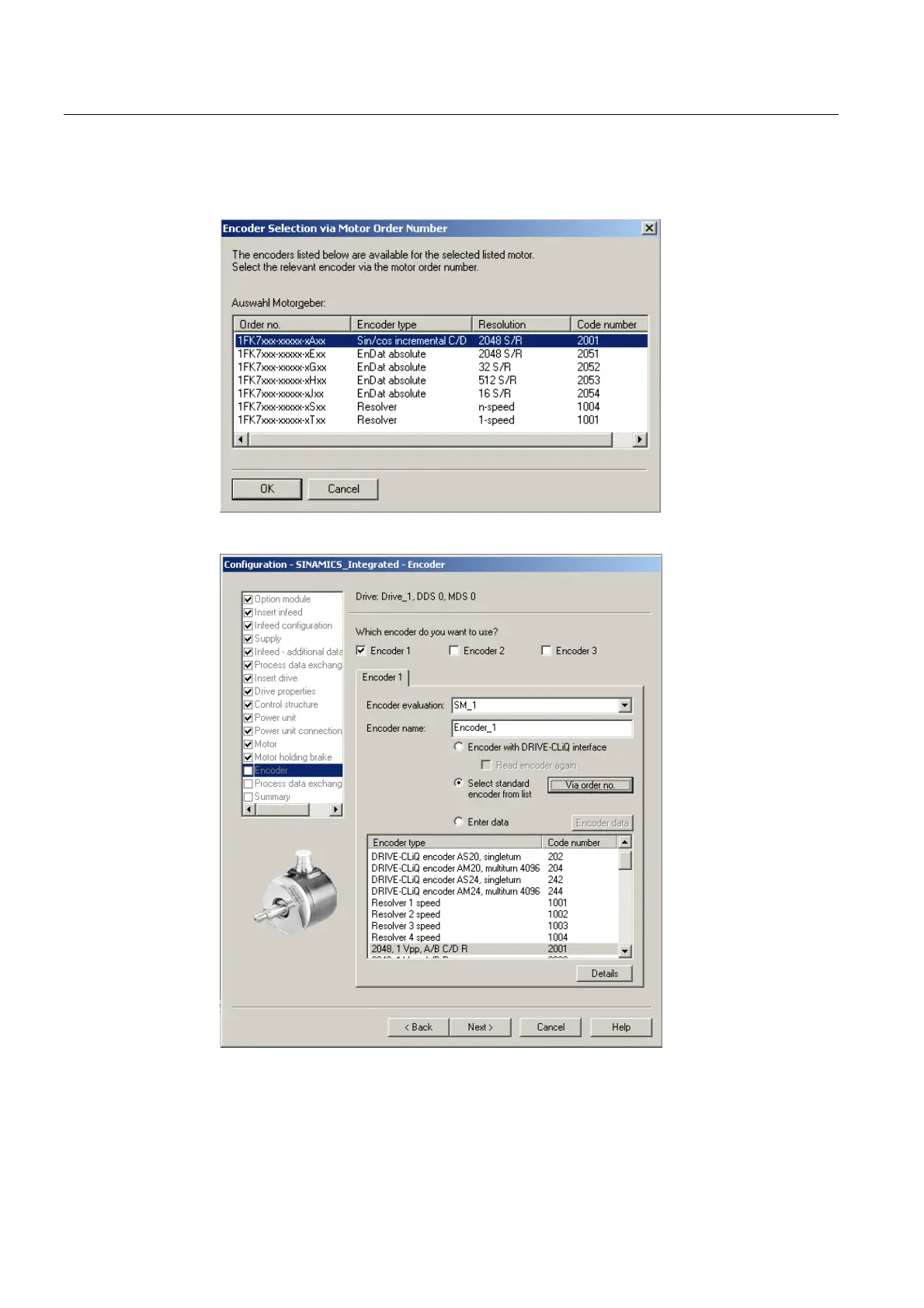

Figure 6-15 Selecting a motor encoder (1)

Figure 6-16 Selecting a motor encoder (2)
