Commissioning (software)
6.2 Performing the configuration for the D4x5-2 offline
SIMOTION D4x5-2
180 Commissioning and Hardware Installation Manual, 02/2012
You will find an overview of the configured SINAMICS components under
"SINAMICS_Integrated" > "Topology".

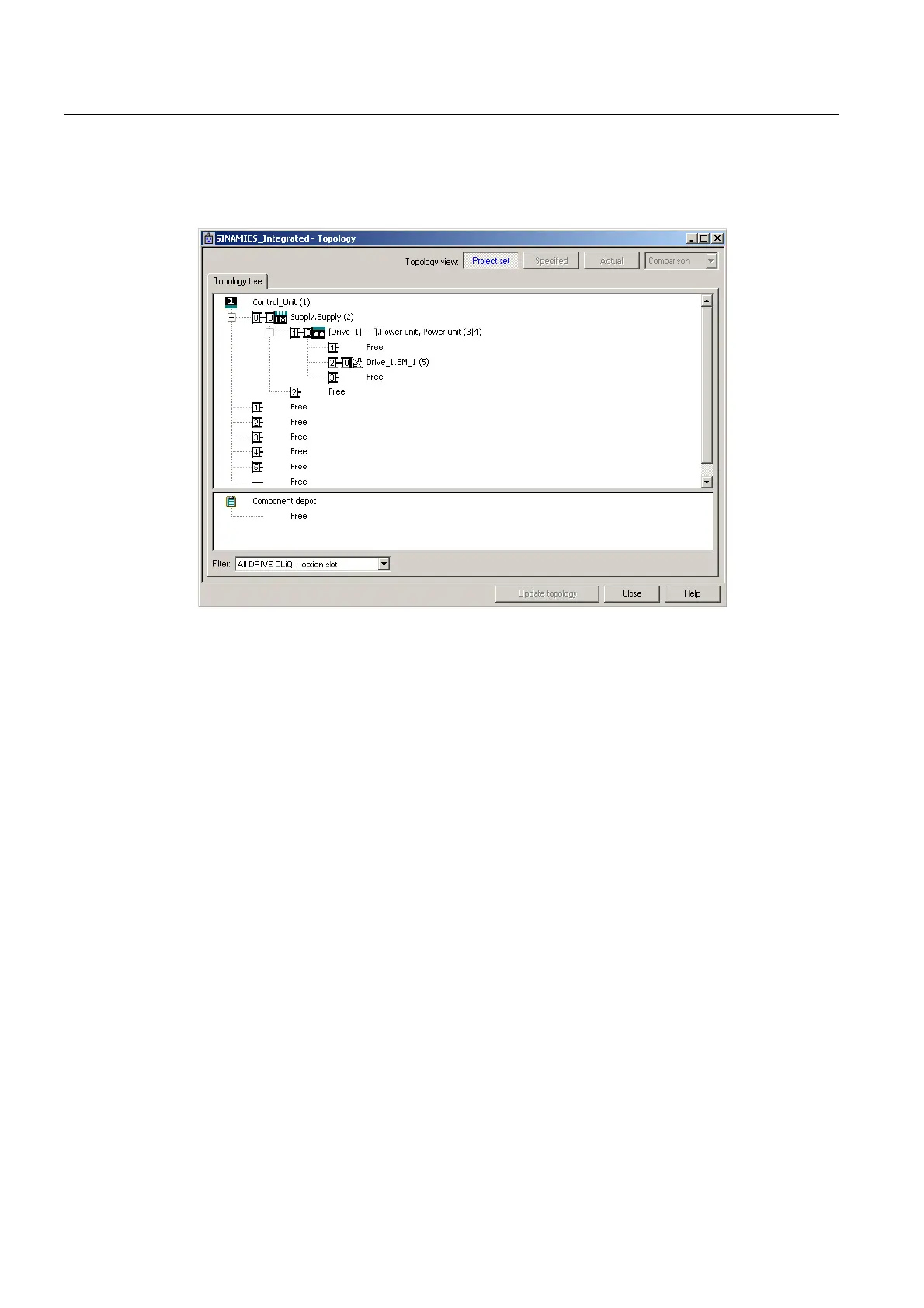

Figure 6-20 Displaying the topology
See also
If you configure the message frames for the infeed and drive manually, you can find detailed
information on the respective message frame types in the following:
●
Motion Control, TO Axis Electric/Hydraulic
,
External Encoder
Function Manual
●
SINAMICS S120
