Commissioning (software)

6.7 Creating and testing axes

SIMOTION D4x5-2

Commissioning and Hardware Installation Manual, 02/2012

231

2. Set an axis type and, if required, configure the units.

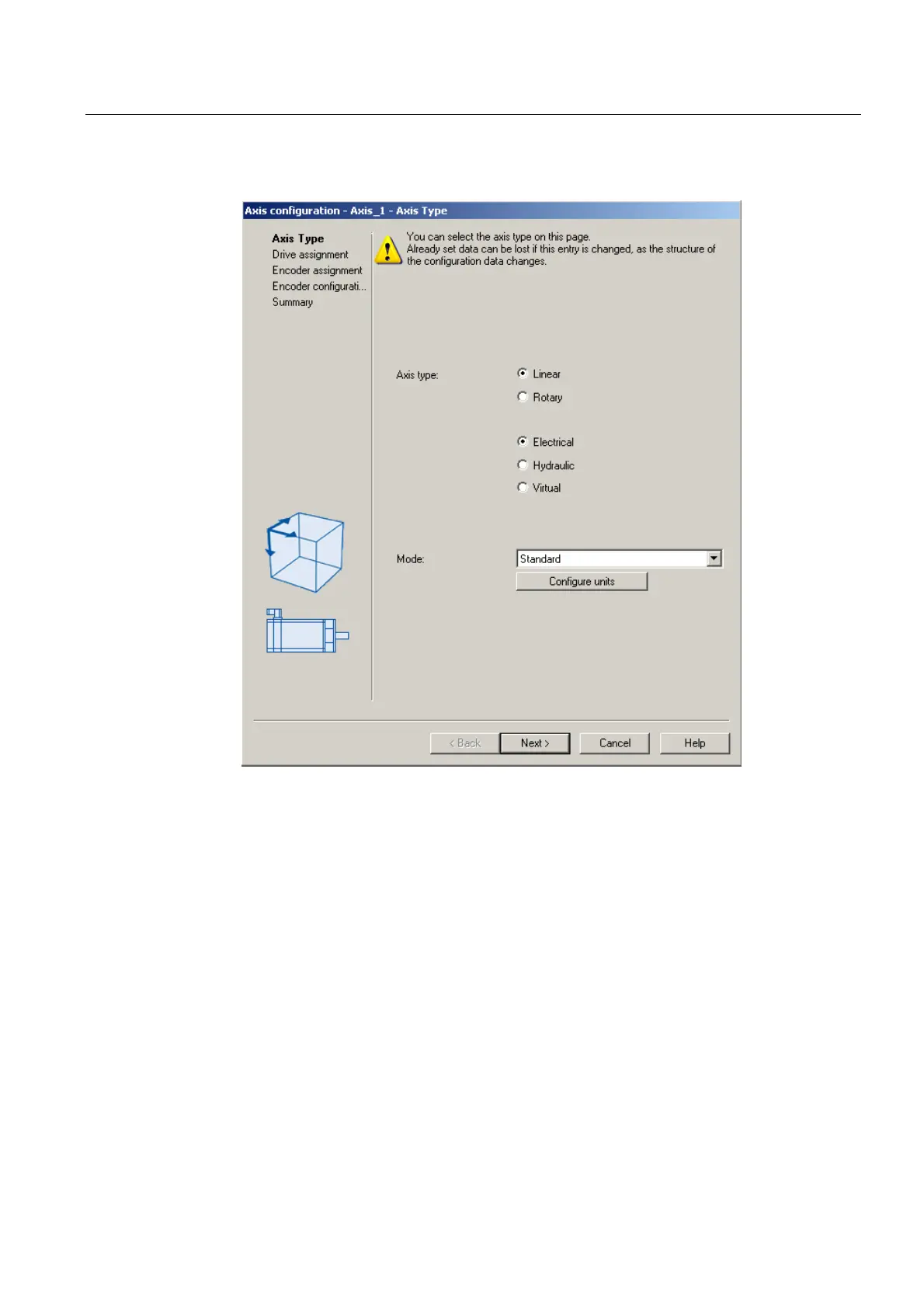

Figure 6-39 Defining the axis type
