Commissioning (software)

6.11 Symbolic assignment of I/O variables (PROFIdrive message frame / drive parameters)

SIMOTION D4x5-2

Commissioning and Hardware Installation Manual, 02/2012

253

3. Select the desired signal source (e.g. DO drive). Then select the required parameter.

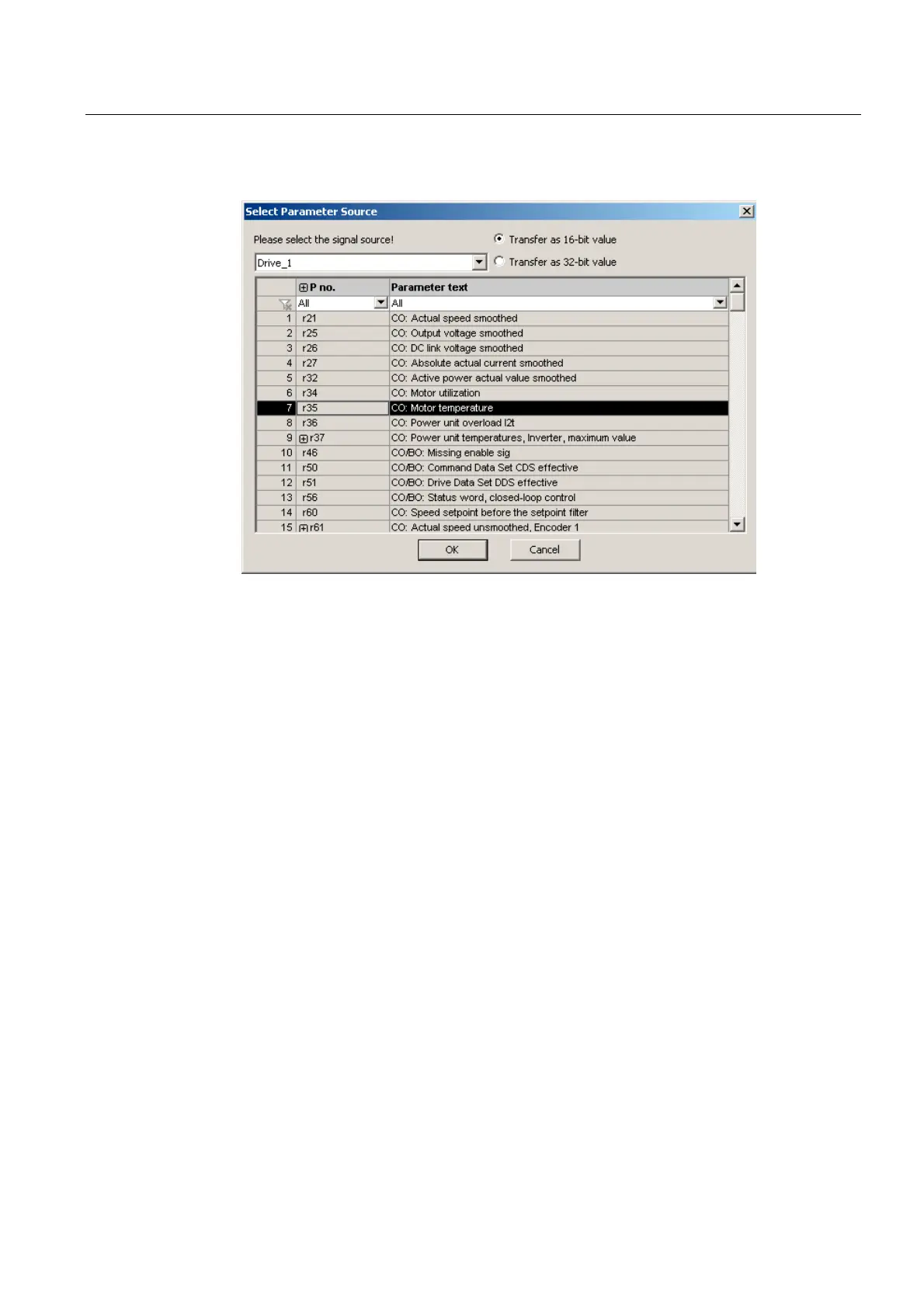

Figure 6-49 Dialog box for the DO and parameter selection

4. Click "OK" to accept the selection.
