Installing
2.2 Installing the SIMOTION D4x5-2
SIMOTION D4x5-2
32 Commissioning and Hardware Installation Manual, 02/2012
Procedure
1. Remove the spacers (screws: M3, Torx T10).
2. Fit the seal around the cooling fins of the control unit.
&RROLQJILQV
,QVHUWVHDOIRUH[WHUQDOFRROLQJ
)&$$$$LQWKH
JURRYHRQWKHKHDWVLQN
'HWDLO$
'HWDLO$

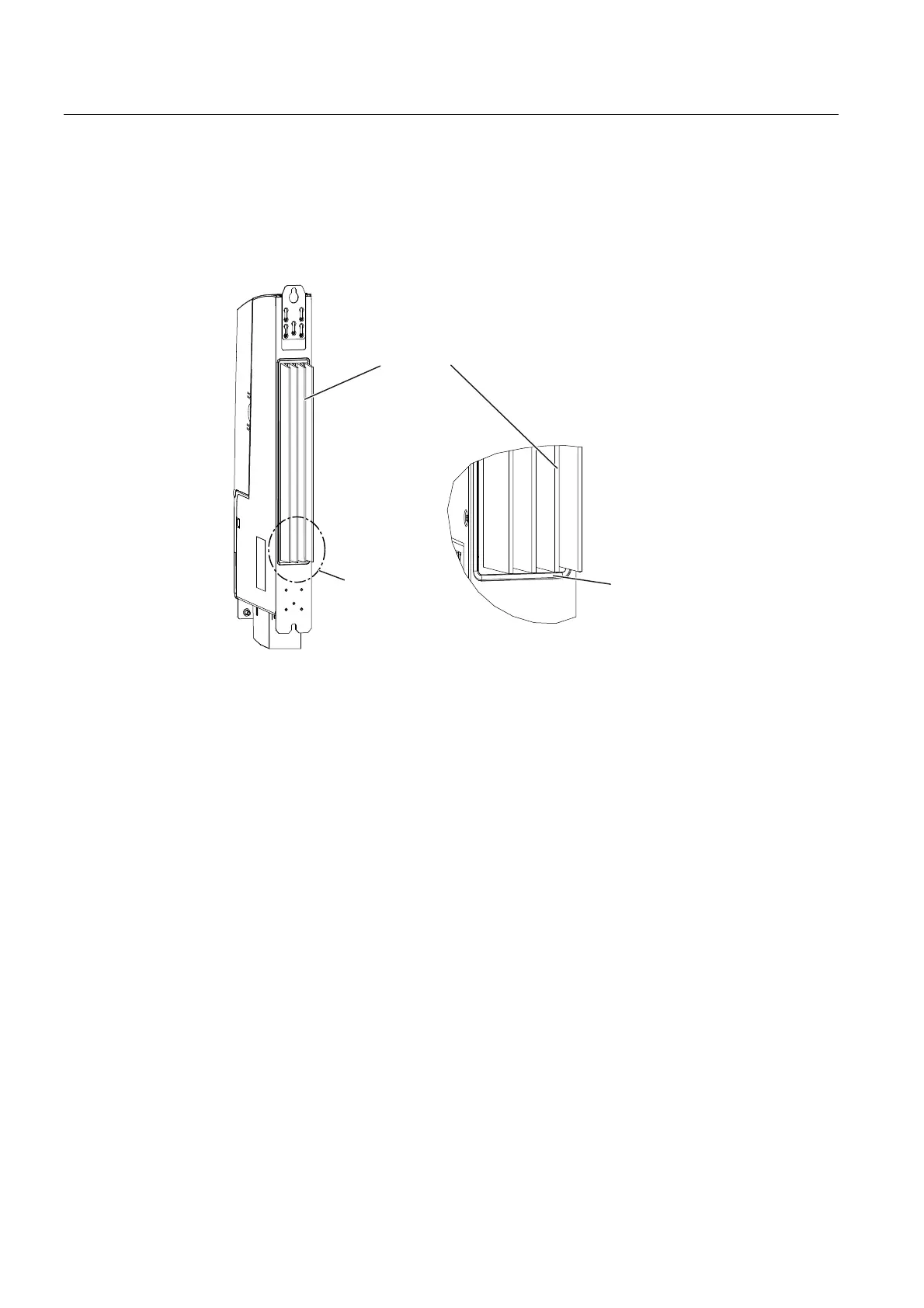

Figure 2-5 Mounting the seal
3. Loosen the three M3 screws (screws: M3, Torx T10) on the upper clip and push the clip
up until the upper hole protrudes beyond the housing.
4. Tighten up the three screws on the clip again (0.8 Nm tightening torque).
5. Push the control unit with the heat sink through the panel cutout.
6. Fasten the control unit directly on the rear wall of the control cabinet with an M6 screw at
the top and bottom, tightening torque: 6 Nm (see
① in the "Panel cutout" figure).
