Diagnostics
8.2 Diagnostic data and non-volatile SIMOTION data
SIMOTION D4x5-2
362 Commissioning and Hardware Installation Manual, 02/2012
Service selector switch (alternative)
To back up diagnostics data and non-volatile SIMOTION data using a Service selector
switch, proceed as follows:
1. Set the Service selector switch to "Diagnostics" (position "D").
The positions of the mode selector switch are not relevant (i.e. the set operating mode
remains unchanged).
The diagnostics data and non-volatile SIMOTION data can be created in STOP, STOPU
and RUN states.
0RGHVHOHFWRU
6HUYLFHVHOHFWRUVZLWFK

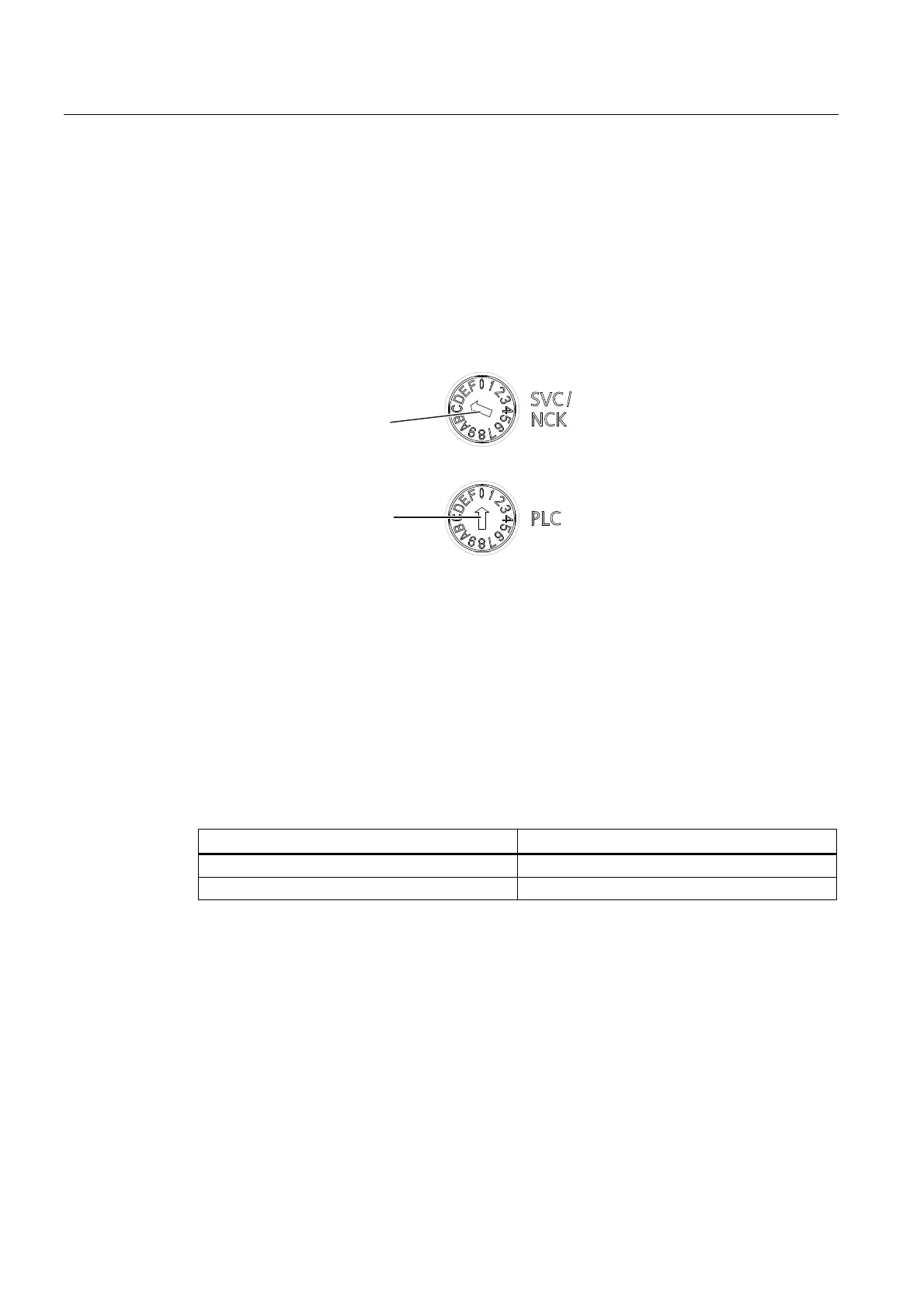

Figure 8-4 Service switch and mode selector switch
2. The diagnostics data and non-volatile SIMOTION data is backed up to the CompactFlash
card.
The backup procedure is displayed via the status LEDs as in the table below.
3. Once the backup is complete, switch the D4x5-2 off.
4. Remove the CompactFlash card and reset the Service selector switch to its original
setting.
Table 8- 9 LED displays during backup procedure
Status LED displays on the D4x5-2
Backup in progress STOP LED and SU/PF LED flicker yellow
Backup complete RUN LED flickers green
