Installing
2.3 Installing supplementary system components
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 02/2012
37
Mounting the CX32-2 next to D4x5-2
If the CX32-2 is mounted next to a D4x5-2, the two modules can be mechanically connected
with the bracket.
1. Loosen the screw (M3, Torx T10).
2. Disassemble the bracket at its original position.
3. Mount the bracket at the shield clamp, as shown in the following figure (tightening torque
0.8 Nm).

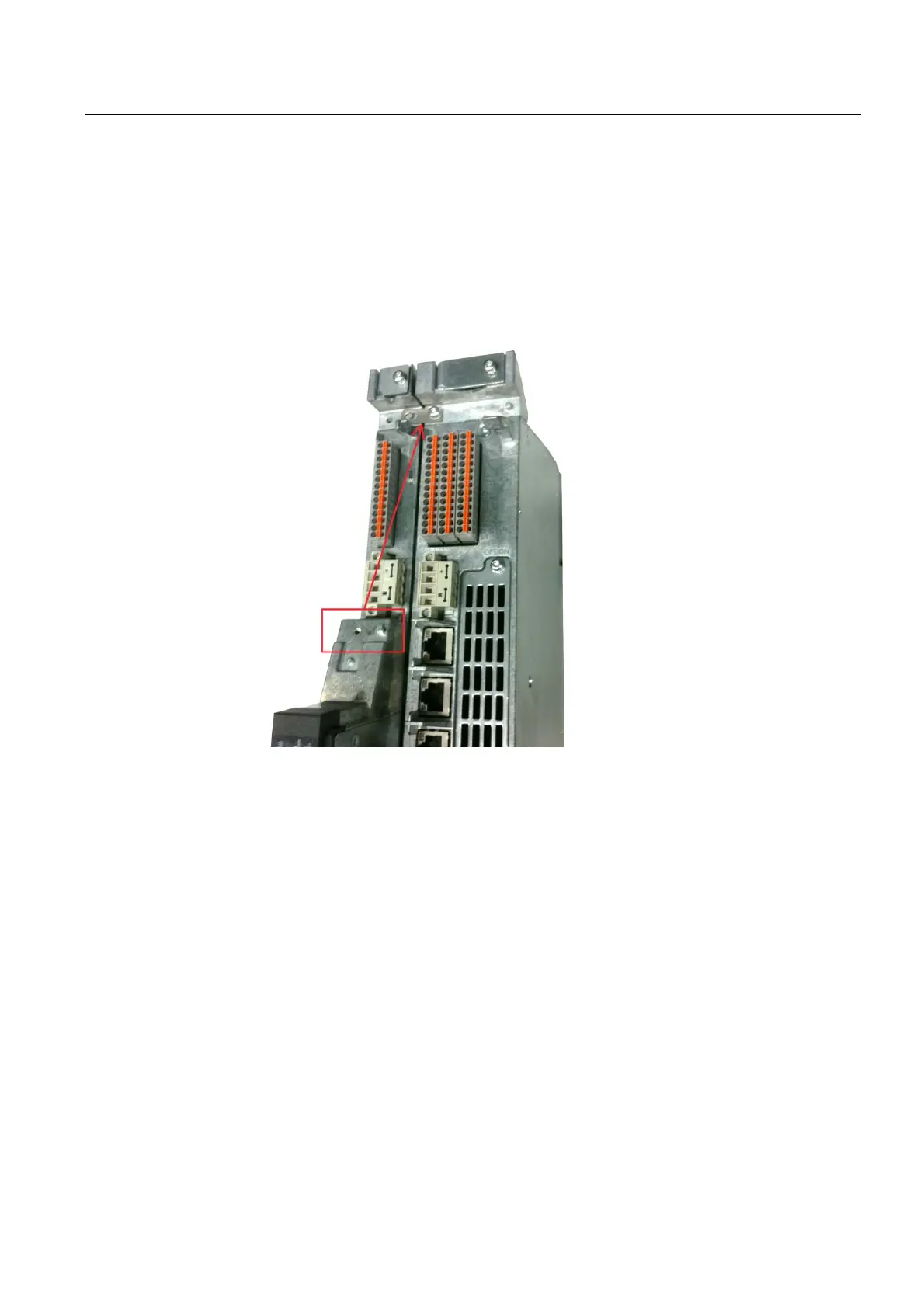

Figure 2-9 Mechanical connection CX32-2 with D4x5-2
