3.6 Connecting I/Os
SIMOTION D4x5-2
62 Commissioning and Hardware Installation Manual, 02/2012
Shield connection for TB30

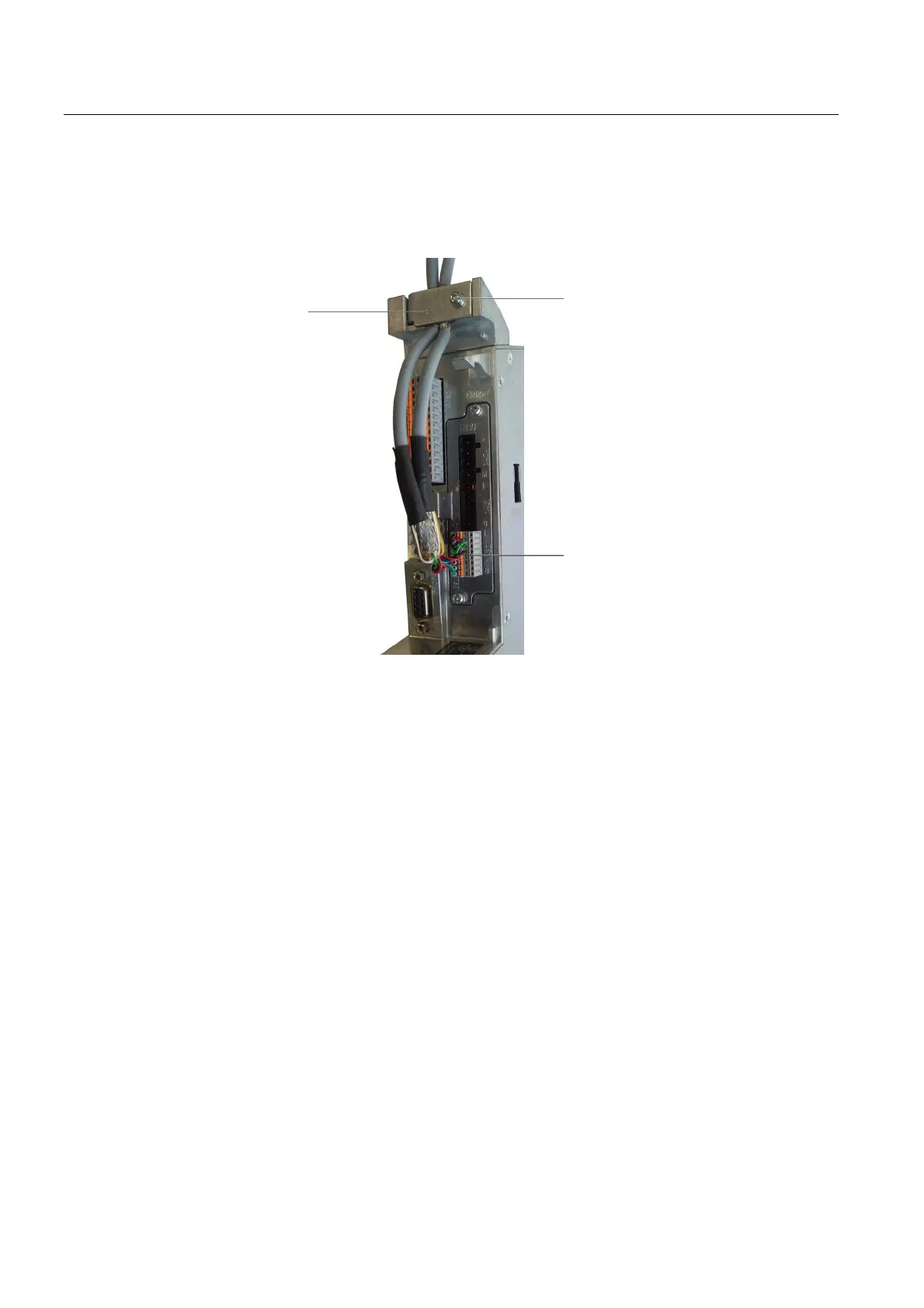

The following figure shows the cable routing, cable connection and the connection of the
I/Os on the TB30. The TB30 is inserted in a CU320-2 here.
6KLHOGOXJWR
FRQQHFWWKHFDEOH
VKLHOGV
6FUHZ
01P
7RU[7
$QDORJLQSXWVRXWSXWV
;
'LVSOD\ZLWKD
&8
Figure 3-10 Shield connection for TB30 using the analog I/Os as an example
The arrangement is similar when inserted in a D4x5-2, see also Section Creating a shield
connection (Page 59) for more details.
The pe
rmissible bending radii for the cables must be maintained when the cables are being
laid.
